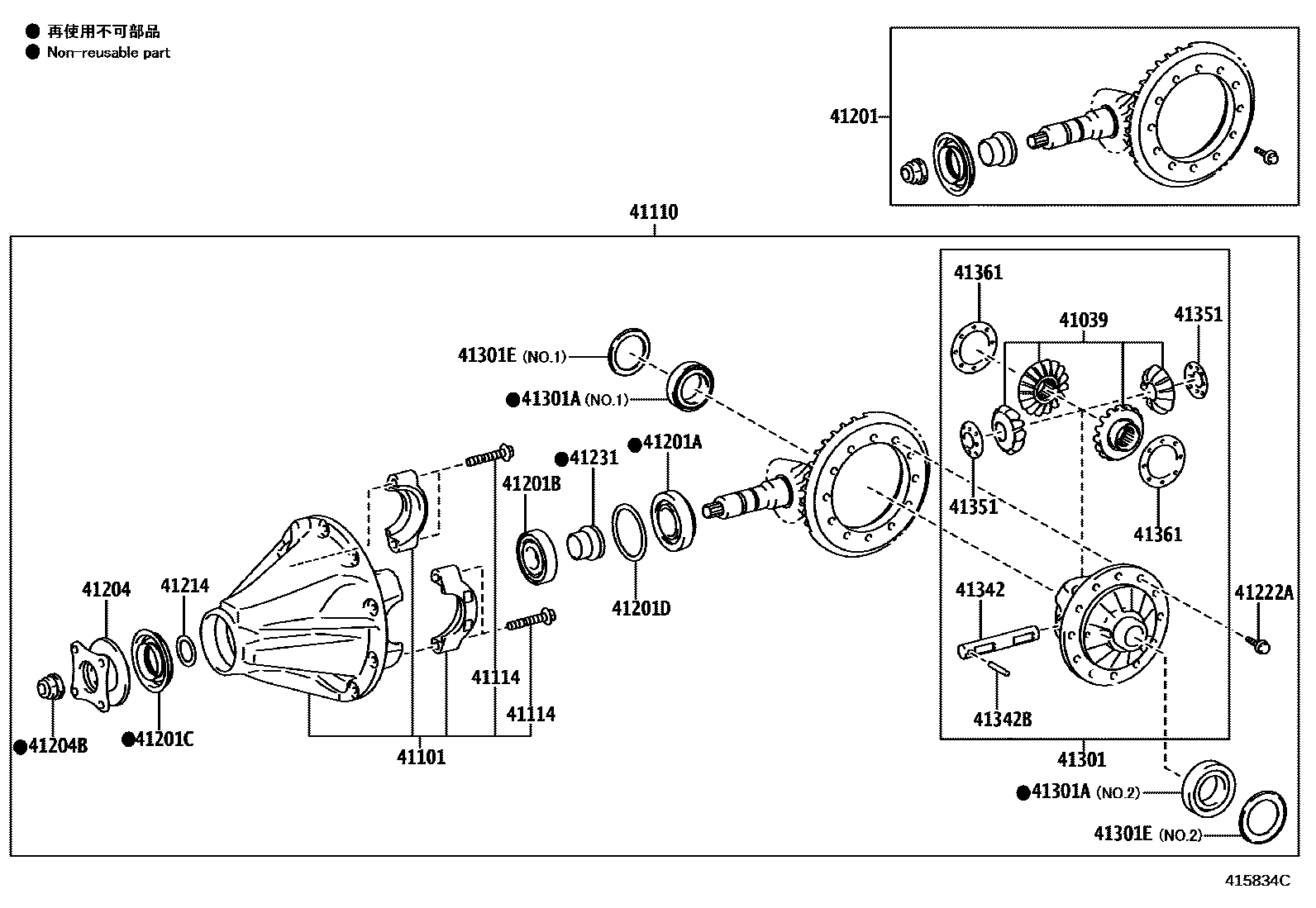

REAR AXLE HOUSING & DIFFERENTIAL
41039GEAR KIT, DIFFERENTIAL, REAR
41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR
41110CARRIER ASSY, DIFFERENTIAL, REAR
*FGR=43:13=3.307
41114BOLT, REAR DIFFERENTIAL BEARING CAP
41201FINAL GEAR KIT, DIFFERENTIAL, REAR
*FGR=43:13=3.307
41201ABEARING (FOR REAR DRIVE PINION REAR)
41201BBEARING (FOR REAR DRIVE PINION FRONT)
41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
T=1.72
T=1.74
T=1.76
T=1.78
T=1.80
T=1.82
T=1.84
T=1.86
T=1.88
T=1.90
T=1.92
T=1.94
T=1.96
T=1.98
T=2.00
T=2.02
T=2.04
T=2.06
T=2.08
T=2.10
T=2.12
T=2.14
T=2.16
T=2.18
41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
41204BNUT (FOR REAR DRIVE PINION)
OD=43
41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41301CASE SUB-ASSY, REAR DIFFERENTIAL
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
41301ESHIM(FOR DIFFERENTIAL CASE)
T=2.08,NO.2:REFER ILLUST.
T=2.10,NO.2:REFER ILLUST.
T=2.12,NO.2:REFER ILLUST.
T=2.14,NO.2:REFER ILLUST.
T=2.16,NO.2:REFER ILLUST.
T=2.18,NO.2:REFER ILLUST.
T=2.20,NO.2:REFER ILLUST.
T=2.22,NO.2:REFER ILLUST.
T=2.24,NO.2:REFER ILLUST.
T=2.26,NO.2:REFER ILLUST.
T=2.28,NO.2:REFER ILLUST.
T=2.30,NO.2:REFER ILLUST.
T=2.32,NO.2:REFER ILLUST.
T=2.34,NO.2:REFER ILLUST.
T=2.36,NO.2:REFER ILLUST.
T=2.38,NO.2:REFER ILLUST.
T=2.40,NO.2:REFER ILLUST.
T=2.42,NO.2:REFER ILLUST.
T=2.44,NO.2:REFER ILLUST.
T=2.46,NO.2:REFER ILLUST.
T=2.48,NO.2:REFER ILLUST.
T=2.50,NO.2:REFER ILLUST.
T=2.52,NO.2:REFER ILLUST.
T=2.54,NO.2:REFER ILLUST.
T=2.56,NO.2:REFER ILLUST.
T=2.58,NO.2:REFER ILLUST.
T=2.60,NO.2:REFER ILLUST.
T=2.62,NO.2:REFER ILLUST.
T=2.64,NO.2:REFER ILLUST.
T=2.66,NO.2:REFER ILLUST.
T=2.68,NO.2:REFER ILLUST.
T=2.06,NO.1:REFER ILLUST.
T=2.08,NO.1:REFER ILLUST.
T=2.10,NO.1:REFER ILLUST.
T=2.12,NO.1:REFER ILLUST.
T=2.14,NO.1:REFER ILLUST.
T=2.16,NO.1:REFER ILLUST.
T=2.18,NO.1:REFER ILLUST.
T=2.20,NO.1:REFER ILLUST.
T=2.22,NO.1:REFER ILLUST.
T=2.24,NO.1:REFER ILLUST.
T=2.26,NO.1:REFER ILLUST.
T=2.28,NO.1:REFER ILLUST.
T=2.30,NO.1:REFER ILLUST.
T=2.32,NO.1:REFER ILLUST.
T=2.34,NO.1:REFER ILLUST.
T=2.36,NO.1:REFER ILLUST.
T=2.38,NO.1:REFER ILLUST.
T=2.40,NO.1:REFER ILLUST.
T=2.42,NO.1:REFER ILLUST.
T=2.44,NO.1:REFER ILLUST.
T=2.46,NO.1:REFER ILLUST.
T=2.48,NO.1:REFER ILLUST.
T=2.50,NO.1:REFER ILLUST.
T=2.52,NO.1:REFER ILLUST.
T=2.54,NO.1:REFER ILLUST.
T=2.56,NO.1:REFER ILLUST.
T=2.58,NO.1:REFER ILLUST.
T=2.60,NO.1:REFER ILLUST.
T=2.62,NO.1:REFER ILLUST.
T=2.64,NO.1:REFER ILLUST.
T=2.66,NO.1:REFER ILLUST.
T=2.68,NO.1:REFER ILLUST.
41342SHAFT, REAR DIFFERENTIAL PINION
41342BPIN, STRAIGHT (FOR REAR DIFFERENTIAL PINION SHAFT)
41351WASHER, REAR DIFFERENTIAL PINION THRUST
41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.55
T=1.60
T=1.65
T=1.70
T=1.75
T=1.80
T=1.85
T=1.90
T=1.95
21 parts on this diagram · 4 diagrams in section
