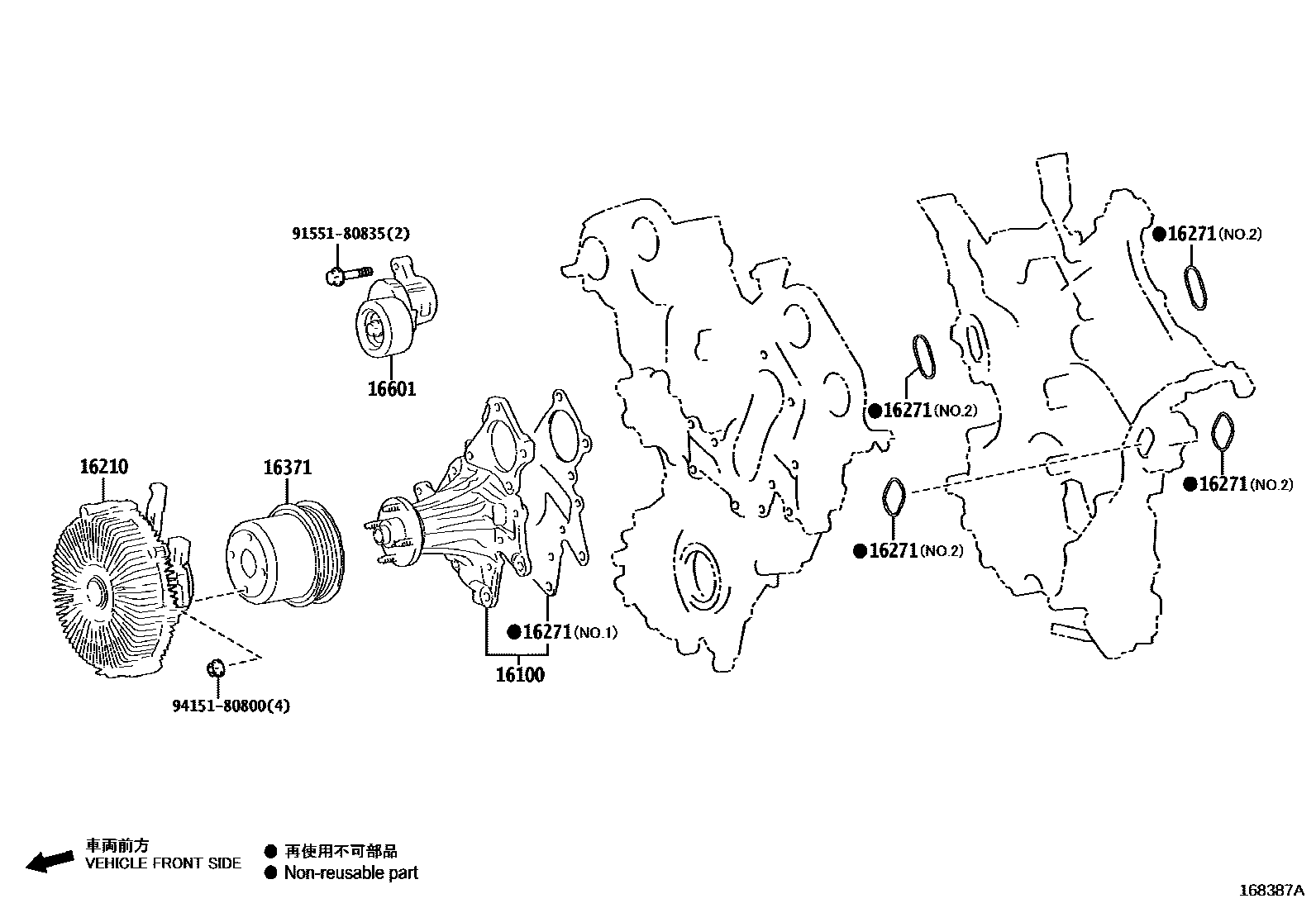

WATER PUMP

16100PUMP ASSY, ENGINE WATER

main16100-79525iV35AFTS..VJA310,VJH310202112-202411

16210COUPLING ASSY, FLUID

main16210-70110iV35AFTS..VJA310202112-202407

sub16210-70111

main16210-70111iV35AFTS..VJA310202408-202411

16271GASKET, WATER PUMP

main16271-70020iV35AFTS..VJA310202112-202411

NO.2

main16271-70030iV35AFTS..VJA310,VJH310202112-202411

NO.1

16371PULLEY, FAN

main16371-0W010iV35AFTS..VJA310,VJH310202112-202411

16601TENSIONER SUB-ASSY, V-RIBBED BELT

main16610-70010iV35AFTS..VJA310,VJH310202112-202411

9155180835

main91551-80835

9415180800

main94151-80800

7 parts on this diagram · 1 diagram in section
