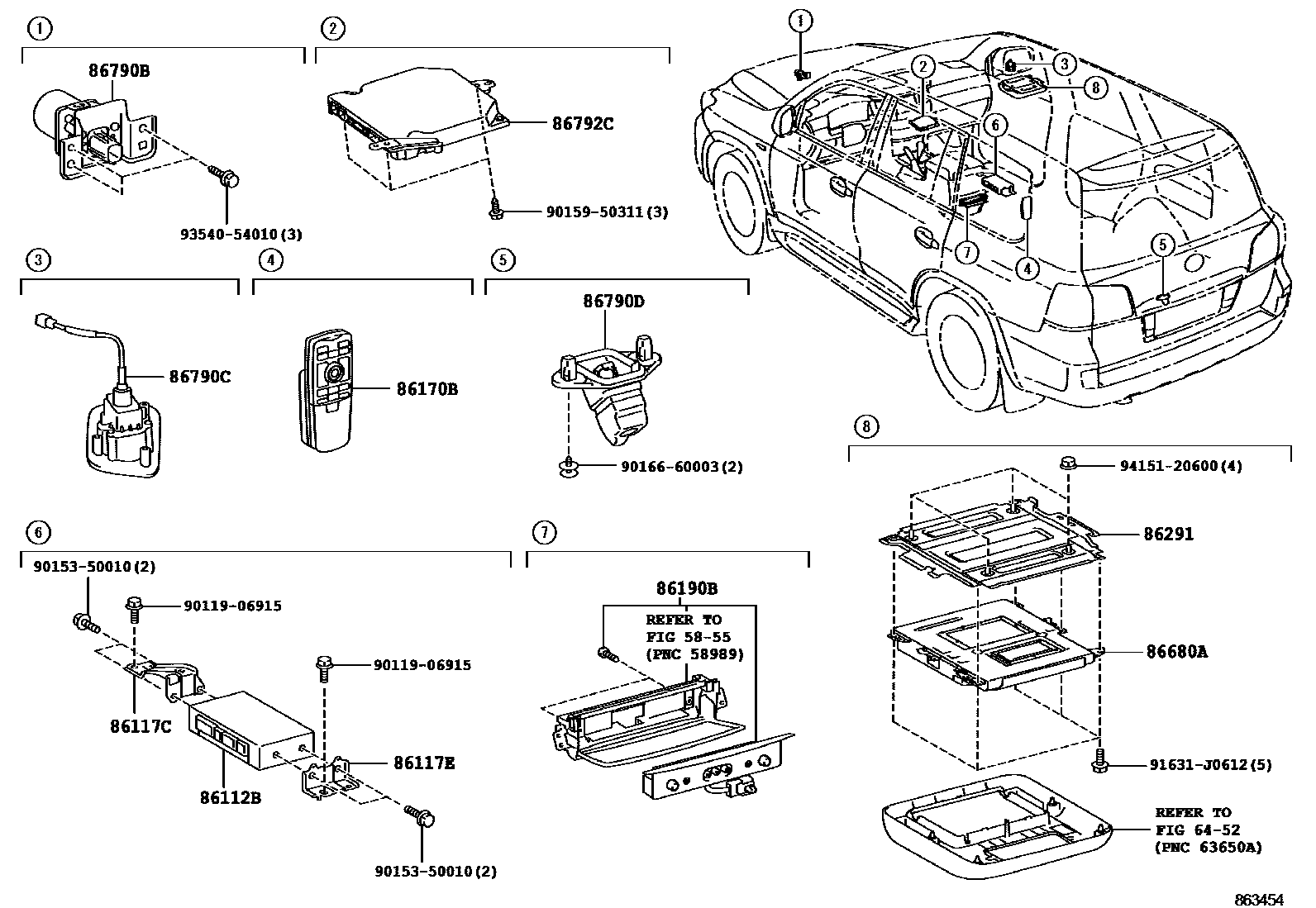

CAMERA & REAR MONITOR DISPLAY
5855
6452
86112BSELECTOR, MULTI-DISPLAY
REAR SEAT ENTERTAINMENT-WITH
86117CBRACKET, MULTI-DISPLAY CONTROLLER, NO.2
REAR SEAT ENTERTAINMENT-WITH
REAR SEAT ENTERTAINMENT-WITH(DUAL MONITOR)
REAR SEAT ENTERTAINMENT-WITH
86117EBRACKET, MULTI-DISPLAY CONTROLLER, NO.3
REAR SEAT ENTERTAINMENT-WITH
REAR SEAT ENTERTAINMENT-WITH(DUAL MONITOR)
REAR SEAT ENTERTAINMENT-WITH
86170BSWITCH & VOLUME ASSY, TELEVISION
REAR SEAT ENTERTAINMENT-WITH
REAR SEAT ENTERTAINMENT-WITH&EMV & NAVIGATION SYSTEM-WITHOUT
REAR SEAT ENTERTAINMENT-WITH
GUAM OR SAIPAN SPEC&REAR SEAT ENTERTAINMENT-WITH
REAR SEAT ENTERTAINMENT-WITH
REAR SEAT ENTERTAINMENT-WITH(DUAL MONITOR)
86190BADAPTER ASSY, REMOTE CONTROL
SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&REAR SEAT ENTERTAINMENT-WITH(DUALMONITOR),IVORY,TRIM0#
sub86190-60020
REAR SEAT ENTERTAINMENT-WITH(DUAL MONITOR),IVORY,TRIM0#
sub86190-60020
REAR SEAT ENTERTAINMENT-WITH(DUAL MONITOR),BLACK,TRIM2#,4#,5#
sub86190-60020
REAR SEAT ENTERTAINMENT-WITH(DUAL MONITOR),BLACK,TRIM2#
sub86190-60020
SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&REAR SEAT ENTERTAINMENT-WITH(DUALMONITOR),BLACK,TRIM2#,4#,5#
sub86190-60020
REAR SEAT ENTERTAINMENT-WITH,IVORY,TRIM02
REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM06,2#,3#,4#,5#
86291BRACKET, TELEVISION
REAR SEAT ENTERTAINMENT-WITH
REAR SEAT ENTERTAINMENT-WITH
86680ADISPLAY ASSY, TELEVISION
PANASONIC,SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&REAR SEAT ENTERTAINMENT-WITH(DUAL MONITOR),IVORY,TRIM0#
PANASONIC,CANADA SPEC&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&REAR SEAT ENTERTAINMENT-WITH(DUAL MONITOR),IVORY,TRI
PANASONIC,HAWAII OR PUERTO RICO SPEC&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEATHEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&REAR SEAT ENTERTAINMENT-WITH(DUAL MON
PANASONIC,GUAM OR SAIPAN SPEC&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&REAR SEAT ENTERTAINMENT-WITH(DUAL MONITOR),I
PANASONIC,SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&REAR SEAT ENTERTAINMENT-WITH(DUAL MONITOR),IVORY,TRIM0#
PANASONIC,REAR SEAT ENTERTAINMENT-WITH(DUAL MONITOR),IVORY,TRIM0#
PANASONIC,HAWAII OR PUERTO RICO SPEC&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEATHEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&REAR SEAT ENTERTAINMENT-WITH(DUAL MON
PANASONIC,GUAM OR SAIPAN SPEC&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&REAR SEAT ENTERTAINMENT-WITH(DUAL MONITOR),B
PANASONIC,SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&REAR SEAT ENTERTAINMENT-WITH(DUAL MONITOR),BLACK,TRIM2#,4#,5#
PANASONIC,SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&REAR SEAT ENTERTAINMENT-WITH(DUAL MONITOR),BLACK,TRIM2#,4#,5#
PANASONIC,REAR SEAT ENTERTAINMENT-WITH(DUAL MONITOR),BLACK,TRIM2#,4#,5#
PANASONIC,CANADA SPEC&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&REAR SEAT ENTERTAINMENT-WITH(DUAL MONITOR),BLACK,TRI
PANASONIC,SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&REAR SEAT ENTERTAINMENT-WITH(DUAL MONITOR),IVORY,TRIM0#
PANASONIC,SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&REAR SEAT ENTERTAINMENT-WITH(DUAL MONITOR),IVORY,TRIM0#
PANASONIC,GUAM OR SAIPAN SPEC&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&REAR SEAT ENTERTAINMENT-WITH(DUAL MONITOR),I
PANASONIC,HAWAII OR PUERTO RICO SPEC&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEATHEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&REAR SEAT ENTERTAINMENT-WITH(DUAL MON
PANASONIC,CANADA SPEC&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&REAR SEAT ENTERTAINMENT-WITH(DUAL MONITOR),IVORY,TRI
PANASONIC,REAR SEAT ENTERTAINMENT-WITH(DUAL MONITOR),IVORY,TRIM0#
PANASONIC,SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&REAR SEAT ENTERTAINMENT-WITH(DUAL MONITOR),BLACK,TRIM2#
PANASONIC,SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&REAR SEAT ENTERTAINMENT-WITH(DUAL MONITOR),BLACK,TRIM2#
PANASONIC,REAR SEAT ENTERTAINMENT-WITH(DUAL MONITOR),BLACK,TRIM2#
PANASONIC,CANADA SPEC&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&REAR SEAT ENTERTAINMENT-WITH(DUAL MONITOR),BLACK,TRI
PANASONIC,GUAM OR SAIPAN SPEC&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&REAR SEAT ENTERTAINMENT-WITH(DUAL MONITOR),B
PANASONIC,HAWAII OR PUERTO RICO SPEC&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEATHEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&REAR SEAT ENTERTAINMENT-WITH(DUAL MON
PANASONIC,REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM0#,2#,3#,4#
sub86680-48191
PANASONIC,REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM0#,2#,3#,4#,5#
DENSO,REAR SEAT ENTERTAINMENT-WITH,IVORY,TRIM0#
DENSO,REAR SEAT ENTERTAINMENT-WITH,LT.GRAY,TRIM1#
PANASONIC,REAR SEAT ENTERTAINMENT-WITH,IVORY,TRIM0#
sub86680-60131
PANASONIC,REAR SEAT ENTERTAINMENT-WITH,LT.GRAY,TRIM1#,2#
sub86680-60131
86790BCAMERA ASSY, TELEVISION, FR
BACK MONITOR-WIDE VIEW MONITOR(FRONT & SIDE)
BACK MONITOR-FRONT,SIDE & WITH(GUIDE)
86790CCAMERA ASSY, TELEVISION, SIDE
BACK MONITOR-WIDE VIEW MONITOR(FRONT & SIDE)
BACK MONITOR-FRONT,SIDE & WITH(GUIDE)
86792CCOMPUTER, PARKING ASSIST
BACK MONITOR-WIDE VIEW MONITOR(FRONT & SIDE)
BACK MONITOR-WIDE VIEW MONITOR(FRONT & SIDE)
BACK MONITOR-FRONT,SIDE & WITH(GUIDE)
9011906915
main90119-06915
9015350010
main90153-50010
9015950311
main90159-50311
9016660003
main90166-60003
91631J0612
main91631-J0612
9354054010
main93540-54010
9415120600
main94151-20600
20 parts on this diagram · 5 diagrams in section
