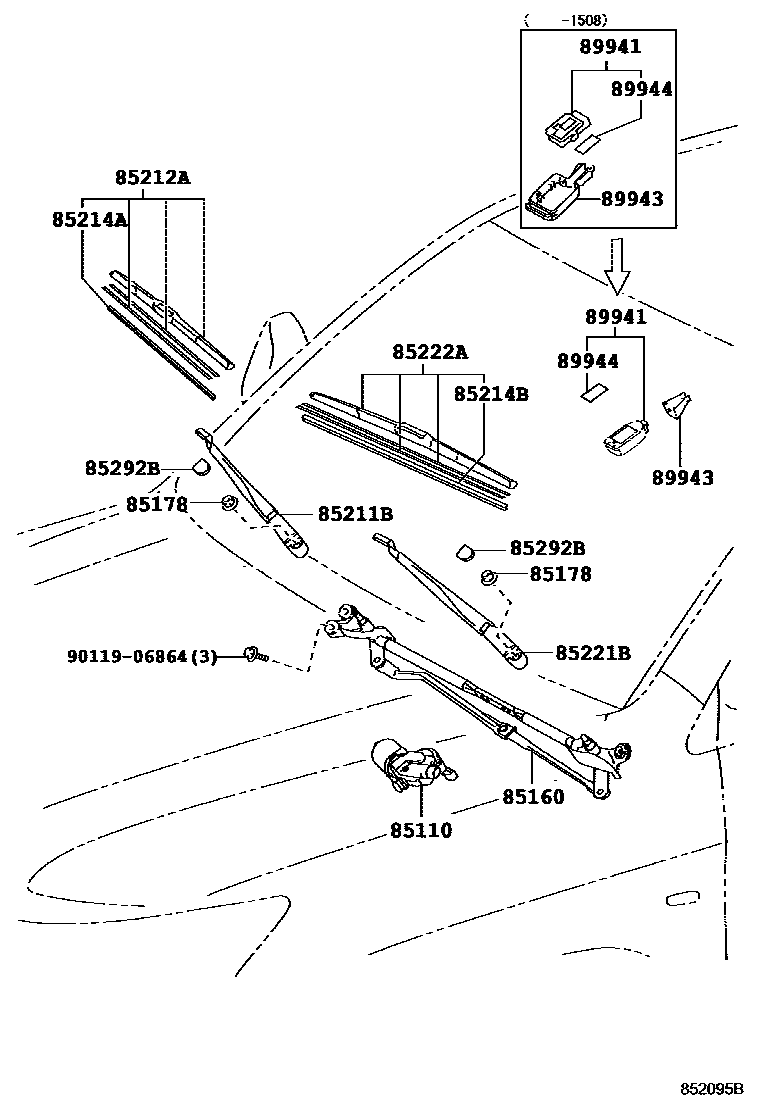

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-60400iURJ201200711-201509

85160LINK ASSY, WINDSHIELD WIPER

main85150-60320iURJ201200711-201606

sub85150-60321

main85150-60321iURJ201201607

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006iURJ201200711-201509

85211BARM, FRONT WIPER, RH

main85211-60260iURJ201200711-201509

85212ABLADE, FR WIPER, RH

main85222-53071iURJ201200711-201509

85214ARUBBER, WIPER, RH

main85214-53080iURJ201200711-201509

85214BRUBBER, WIPER, LH

main85214-30380iURJ201200711-201509

85221BARM, FRONT WIPER, LH

main85221-60280iURJ201200711-201509

85222ABLADE, FR WIPER, LH

main85222-42110iURJ201200711-201509

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010iURJ201200711-201509

89941SENSOR, RAIN

main89941-50040iURJ201200711-200902

sub89941-50080

main89941-50080iURJ201200903-201109

sub89941-50081

main89941-50081iURJ201201110-201509

main89941-52010iURJ201201509

89943COVER, RAIN SENSOR

main89943-60030iURJ201200711-201509

main89943-76010iURJ201201509

89944TAPE, RAIN SENSOR

main89944-42010iURJ201201509

main89944-50020iURJ201200711-201110

sub89944-50021

main89944-50021iURJ201201110-201509

9011906864

main90119-06864

14 parts on this diagram · 1 diagram in section
