AIR BAG

72277APROTECTOR, SEAT SLIDE POSITION SENSOR

main72277-33021×2iURJ201200711-201201

89170ACOMPUTER ASSY, AIRBAG

main89170-60290iURJ201200711-201201

main89170-60740iURJ201201201-201307

main89170-60B00iURJ201201308-201509

main89170-60B50iURJ201201509-201708

main89170-60F20iURJ201201708

89173ASENSOR, AIRBAG, FRONT RH

main89173-69205iURJ201200711-201201

main89173-69225iURJ201201509

main89173-79055iURJ201201201-201509

89174ASENSOR, AIRBAG, FRONT LH

main89173-69205iURJ201200711-201201

main89173-69225iURJ201201509

main89173-79055iURJ201201201-201509

89178ASENSOR, SEAT POSITION AIRBAG

main89178-33050×2iURJ201200711-201201

89833SENSOR, AIRBAG, REAR RH

main89833-60040iURJ201200711-201201

main89833-60060iURJ201201201-201509

main89833-60071iURJ201201509

89834SENSOR, AIRBAG, REAR LH

main89831-60020iURJ201200711-201201

main89831-60060iURJ201201201-201509

main89831-60070iURJ201201509

89837ASENSOR, REAR FLOOR SIDE AIRBAG

main89837-60010iURJ201200711-201201

main89837-60030iURJ201201201-201509

89839ACOVER, REAR FLOOR SIDE AIRBAG SENSOR

main89839-60010iURJ201200711-201201

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-60010iURJ201200711-201201

main89831-60040iURJ201201201-201509

main89831-60050iURJ201201509

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-60010iURJ201200711-201201

main89831-60040iURJ201201201-201509

main89831-60050iURJ201201509

9011906978

main90119-06978

9011908C89

main90119-08C89

9046709077

main90467-09077

9155380618

main91553-80618

9155380620

main91553-80620

9155380622

main91553-80622

9415180640

main94151-80640

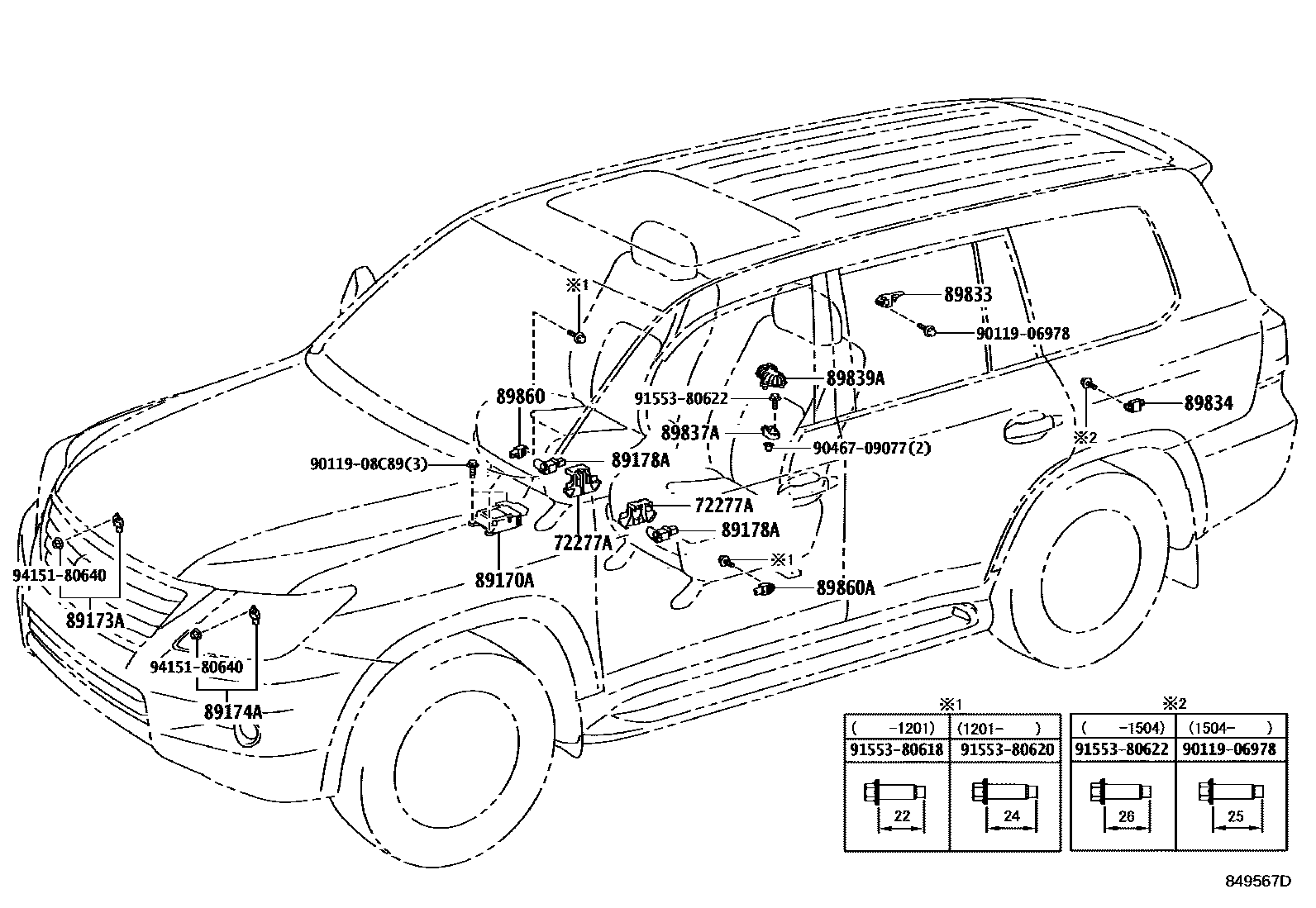

18 parts on this diagram · 1 diagram in section
