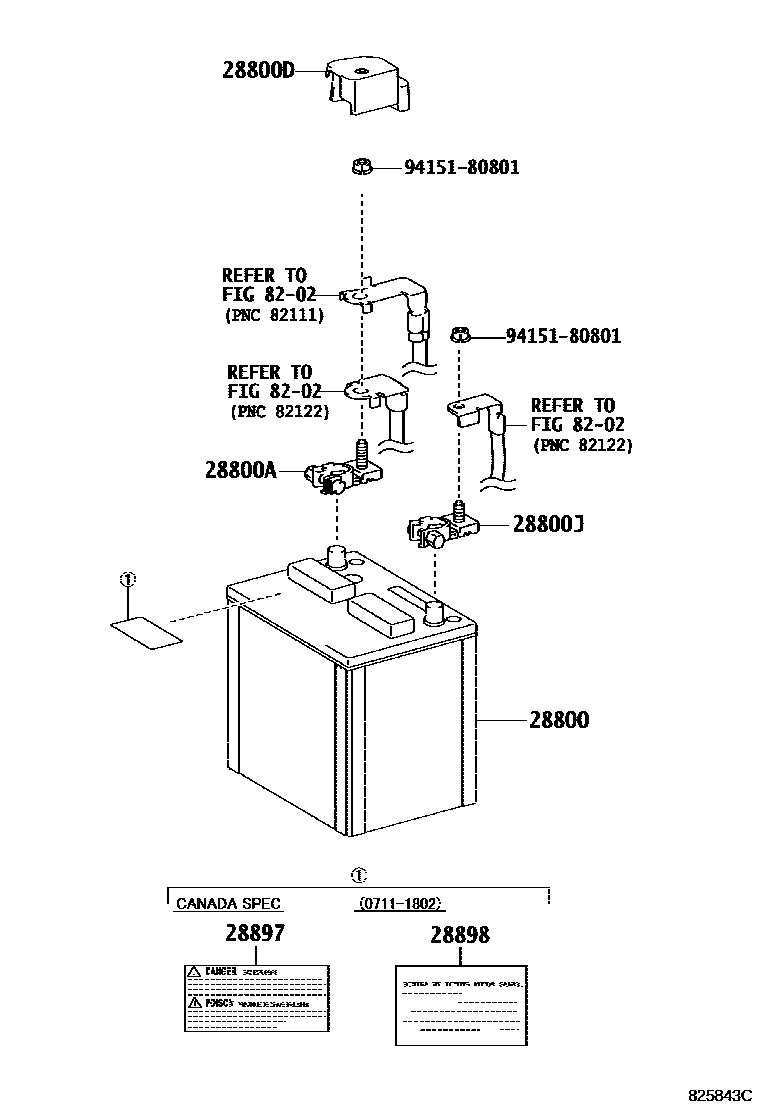

BATTERY & BATTERY CABLE

28800BATTERY

main28800-66021i3URFE..URJ201200711-201509

105D31L

sub28800-66022

28800ATERMINAL, BATTERY POSITIVE

main82675-60020i3URFE..URJ201200711-201509

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-60200i3URFE..URJ201200711-201907

sub82821-60201

main82821-60201i3URFE..URJ201201908

28800JTERMINAL, BATTERY NEGATIVE

main90982-06059i3URFE..URJ201200711-201509

28897PLATE, BATTERY CAUTION

main28897-46020i3URFE..URJ201200711-201509

CANADA SPEC

28898PLATE, BATTERY

main28898-20010i3URFE..URJ201200711-201802

8202

9415180801

main94151-80801

8 parts on this diagram · 1 diagram in section
