E
EPC Data

MOULDING

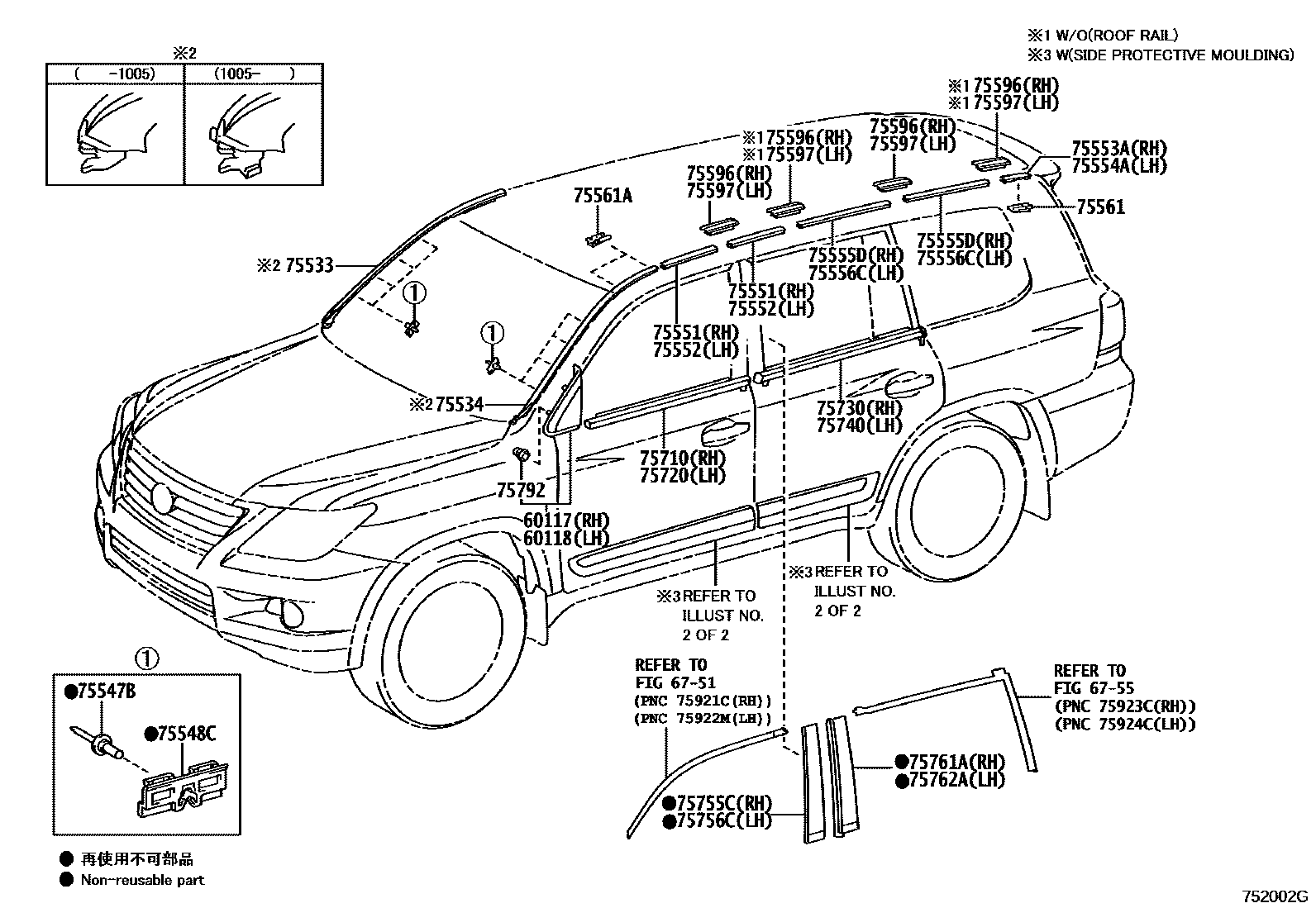

Parts diagram
60117COVER SUB-ASSY, FRONT PILLAR, UPR RH
main60117-60010i200711-201509
main60117-60030i201509
60118COVER SUB-ASSY, FRONT PILLAR, UPR LH
main60118-60010i200711-201509
main60118-60030i201509
6751
6755
75533MOULDING, WINDSHIELD, OUTSIDE RH
main75533-60080i200711-201005
sub75533-60100
main75533-60081i201005-201103
sub75533-60082
main75533-60082i201103-201509
75534MOULDING, WINDSHIELD, OUTSIDE LH
main75534-60070i200711-201005
sub75534-60080
main75534-60071i201005-201103
sub75534-60072
main75534-60072i201103-201509
75547BCLIP, WINDSHIELD OUTSIDE MOULDING, NO.3
main75547-51021i200711-201509
75548CPAD, WINDSHIELD MOULDING, NO.4
main75548-60020i200711-200912
sub75548-60021
main75548-60021i201001-201509
75551MOULDING, ROOF DRIP SIDE FINISH, RH
main75551-60110i200711-201509
NO PAINT REQ.
main75551-60110i201509
NO PAINT REQ.,ROOF RACK-WITHOUT
75552MOULDING, ROOF DRIP SIDE FINISH, LH
main75551-60110i200711-201509
NO PAINT REQ.
main75551-60110i201509
NO PAINT REQ.,ROOF RACK-WITHOUT
75553AMOULDING, ROOF DRIP SIDE FINISH, REAR RH
main75553-60040i200711-201509
75554AMOULDING, ROOF DRIP SIDE FINISH, REAR LH
main75554-60040i200711-201509
75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH
main75555-60020i200711-201509
75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH
main75555-60020i200711-201509
75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
main75561-42030i200711-200807
sub75561-60010
main75561-60010i200807-201103
sub75561-60030
main75561-60030i201103-201611
sub75561-60031
main75561-60031i201612
75561ACLIP, ROOF DRIP SIDE FINISH MOULDING
main75561-42030i200711-200807
sub75561-60010
main75561-60010i200807-201103
sub75561-60030
main75561-60030i201103-201611
sub75561-60031
main75561-60031i201612
75596COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, RH
main75596-35030i200711-201509
ROOF RACK-ROOF RAIL ONLY(FOR CROSS BAR)
75597COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, LH
main75596-35030i200711-201509
ROOF RACK-ROOF RAIL ONLY(FOR CROSS BAR)
75710MOULDING ASSY, FRONT DOOR BELT, RH
main75710-60080i200711-201509
75720MOULDING ASSY, FRONT DOOR BELT, LH
main75720-60080i200711-201509
75730MOULDING ASSY, REAR DOOR BELT, RH
main75730-60070i200711-201509
75740MOULDING ASSY, REAR DOOR BELT, LH
main75740-60070i200711-201509
75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH
main75755-60040i200711-201509
main75755-60070i201509-201709
sub75755-60071
main75755-60071i201710
75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH
main75756-60040i200711-201509
main75756-60070i201509-201709
sub75756-60071
main75756-60071i201710
75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH
main75761-60040i200711-201509
NO PAINT REQ.
main75761-60070i201509
NO PAINT REQ.
75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH
main75762-60040i200711-201509
NO PAINT REQ.
main75762-60070i201509
NO PAINT REQ.
75792CLIP, DOOR WINDOW FRAME MOULDING
main90044-67440i200711-201509

27 parts on this diagram · 3 diagrams in section
