SEAT BELT

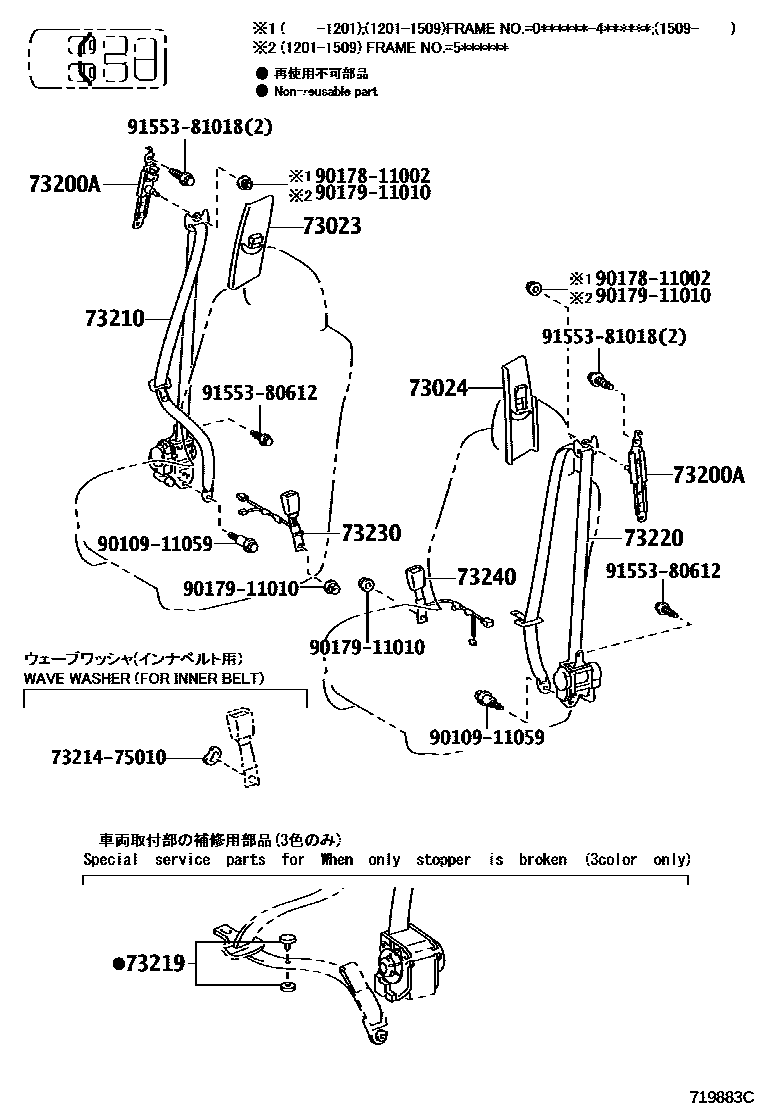

Parts diagram
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
main73023-30010-A2i200711-201201
IVORY,TRIM0#
sub73023-30010
main73023-30010-A4i201509
IVORY,TRIM02
sub73023-30010
main73023-30010-A4i201201-201509
IVORY,TRIM0#,42,5#
sub73023-30010
main73023-30010-B2i200711-201201
LT.GRAY,TRIM1#,2#
sub73023-30010
main73023-30010-B2i201201-201509
LT.GRAY,TRIM2#,43
sub73023-30010
main73023-30010-B2i201509
LT.GRAY,TRIM21,32,45,51
sub73023-30010
main73023-30010-C0i201509
BLACK,TRIM06,21,24,26,27,31,32,44,45,52
sub73023-30010
main73023-30010-C0i201301-201509
BLACK,TRIM42
sub73023-30010
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
main73024-30010-A2i200711-201201
IVORY,TRIM0#
sub73024-30010
main73024-30010-A4i201509
IVORY,TRIM02
sub73024-30010
main73024-30010-A4i201201-201509
IVORY,TRIM0#,42,5#
sub73024-30010
main73024-30010-B2i201201-201509
LT.GRAY,TRIM2#,43
sub73024-30010
main73024-30010-B2i200711-201201
LT.GRAY,TRIM1#,2#
sub73024-30010
main73024-30010-B2i201509
LT.GRAY,TRIM21,32,45,51
sub73024-30010
main73024-30010-C0i201301-201509
BLACK,TRIM42
sub73024-30010
main73024-30010-C0i201509
BLACK,TRIM06,21,24,26,27,31,32,44,45,52
sub73024-30010
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
main73200-12070i201301-201509
main73200-53010i200711-201301
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-60680-A0i200711-200907
IVORY,TRIM0#
sub73210-60680
sub73210-60681
sub73210-60A50
main73210-60680-A1i200907-201008
IVORY,TRIM0#
sub73210-60680
sub73210-60681
sub73210-60A50
main73210-60680-B0i200711-200907
MD.GRAY,TRIM1#
sub73210-60680
sub73210-60681
sub73210-60A50
main73210-60680-B1i200907-201008
MD.GRAY,TRIM1#
sub73210-60680
sub73210-60681
sub73210-60A50
main73210-60681-A1i201008-201201
IVORY,TRIM0#
sub73210-60A50
main73210-60681-B2i201008-201201
LT.GRAY/BLACK,TRIM2#
sub73210-60A50
main73210-60850-A2i201201-201212
IVORY,TRIM0#
sub73210-60851
sub73210-60A80
main73210-60850-B0i201201-201212
BLACK,TRIM2#
sub73210-60851
sub73210-60A80
main73210-60851-A4i201301-201509
IVORY/IVORY,TRIM0#
sub73210-60A90
main73210-60851-C0i201301-201509
BLACK,TRIM2#
sub73210-60A90
main73210-60860-A0i201509-201708
IVORY,TRIM0#
sub73210-60861
sub73210-60B00
main73210-60860-A0i201509-201708
SEAT AIR CONDITIONER-WITH(VENTILATION, DRIVER & PASSENGER),IVORY,TRIM0#
sub73210-60861
sub73210-60B00
main73210-60860-A0i201509-201708
SEAT AIR CONDITIONER-W(VENTILATION,DRIVER & PASSENGER & REAR),IVORY,TRIM0#
sub73210-60861
sub73210-60B00
main73210-60860-C0i201509-201708
BLACK,TRIM2#
sub73210-60861
sub73210-60B00
main73210-60860-C0i201509-201708
SEAT AIR CONDITIONER-WITH(VENTILATION, DRIVER & PASSENGER),BLACK,TRIM2#,3#,4#
sub73210-60861
sub73210-60B00
main73210-60860-C0i201509-201708
SEAT AIR CONDITIONER-W(VENTILATION,DRIVER & PASSENGER & REAR),BLACK,TRIM2#,3#,4#
sub73210-60861
sub73210-60B00
main73210-60861-A0i201708-201812
IVORY,TRIM0#
sub73210-60862
main73210-60861-C0i201708-201812
BLACK,TRIM2#
sub73210-60862
main73210-60862-A0i201901
SEAT COVER MATERIAL-LEATHER(SEMI-ANILINE)&SEAT AIR CONDITIONER-WITH(VENTILATION, DRIVER & PASSENGER),IVORY,TRIM02
main73210-60862-A0i201901
IVORY,TRIM0#
main73210-60862-A0i201901
SEAT COVER MATERIAL-LEATHER(SEMI-ANILINE)&SEAT AIR CONDITIONER-W(VENTILATION,DRIVER & PASSENGER & REAR),IVORY,TRIM02
main73210-60862-C0i201901
SEAT COVER MATERIAL-LEATHER(SEMI-ANILINE)&SEAT AIR CONDITIONER-WITH(VENTILATION, DRIVER & PASSENGER),BLACK,TRIM06,2#,3#,4#,5#
main73210-60862-C0i201901
BLACK,TRIM2#
main73210-60862-C0i201901
SEAT COVER MATERIAL-LEATHER(SEMI-ANILINE)&SEAT AIR CONDITIONER-W(VENTILATION,DRIVER & PASSENGER & REAR),BLACK,TRIM06,2#,3#,4#,5#
73219STOPPER, TONGUE PLATE
main73219-02010i200711-201509
BLACK
main73219-02020i200711-201509
GRAY
main73219-02030i200711-201509
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-60560-A0i200711-200907
IVORY,TRIM0#
sub73220-60560
sub73220-60564
main73220-60560-A1i200907-201008
IVORY,TRIM0#
sub73220-60560
sub73220-60564
main73220-60560-B0i200711-200907
MD.GRAY,TRIM1#
sub73220-60560
sub73220-60564
main73220-60560-B1i200907-201008
BLACK,TRIM1#
sub73220-60560
sub73220-60564
main73220-60561-A1i201008-201201
IVORY,TRIM0#
sub73220-60563
main73220-60561-A4i201201-201212
IVORY,TRIM0#
sub73220-60563
main73220-60561-B2i201008-201212
LT.GRAY/BLACK,TRIM2#
sub73220-60563
main73220-60562-A6i201301-201302
IVORY/IVORY,TRIM0#
sub73220-60563
main73220-60562-C0i201301-201302
BLACK,TRIM2#
sub73220-60563
main73220-60563-A6i201303-201308
IVORY/IVORY,TRIM0#
sub73220-60564
main73220-60563-A6i201303-201308
SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1),IVORY/IVORY,TRIM0#
sub73220-60564
main73220-60563-C0i201303-201308
SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1),BLACK,TRIM2#,4#
sub73220-60564
main73220-60563-C0i201303-201308
BLACK,TRIM2#
sub73220-60564
main73220-60564-A6i201309-201509
SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1),IVORY/IVORY,TRIM0#
sub73220-60564
main73220-60564-A6i201309-201509
IVORY/IVORY,TRIM0#
sub73220-60564
main73220-60564-C0i201309-201509
BLACK,TRIM2#
sub73220-60564
main73220-60564-C0i201309-201509
SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1),BLACK,TRIM2#,4#,5#
sub73220-60564
main73220-60670-A0i201509-201708
IVORY,TRIM0#
sub73220-60671
main73220-60670-A0i201509-201708
SEAT AIR CONDITIONER-WITH(VENTILATION, DRIVER & PASSENGER),IVORY,TRIM0#
sub73220-60671
main73220-60670-A0i201509-201708
SEAT AIR CONDITIONER-W(VENTILATION,DRIVER & PASSENGER & REAR),IVORY,TRIM0#
sub73220-60671
main73220-60670-C0i201509-201708
SEAT AIR CONDITIONER-W(VENTILATION,DRIVER & PASSENGER & REAR),BLACK,TRIM2#,3#,4#
sub73220-60671
main73220-60670-C0i201509-201708
BLACK,TRIM2#
sub73220-60671
main73220-60670-C0i201509-201708
SEAT AIR CONDITIONER-WITH(VENTILATION, DRIVER & PASSENGER),BLACK,TRIM2#,3#,4#
sub73220-60671
main73220-60671-A0i201708
IVORY,TRIM0#
main73220-60671-C0i201708
BLACK,TRIM2#
73230BELT ASSY, FRONT SEAT INNER, RH
main73240-60310-A0i200711-200907
IVORY,TRIM0#
sub73240-60310
main73240-60310-A1i200907-201509
IVORY,TRIM0#
sub73240-60310
main73240-60310-B0i200711-201008
MD.GRAY,TRIM1#
sub73240-60310
main73240-60310-C0i201008-201509
BLACK,TRIM2#
sub73240-60310
main73240-60600-A0i201509
IVORY,TRIM0#
main73240-60600-C0i201509
BLACK,TRIM2#
73240BELT ASSY, FRONT SEAT INNER, LH
main73230-60480-A0i200711-200907
IVORY,TRIM0#
sub73230-60480
main73230-60480-A1i200907-201509
IVORY,TRIM0#
sub73230-60480
main73230-60480-B0i200711-201008
MD.GRAY,TRIM1#
sub73230-60480
main73230-60480-C0i201008-201509
BLACK,TRIM2#
sub73230-60480
main73230-60710-A0i201509
IVORY,TRIM0#
main73230-60710-C0i201509
BLACK,TRIM2#
7321475010PLATE, FRONT SEAT BELT ANCHOR
main73214-75010
9010911059
main90109-11059
9017811002
main90178-11002
9017911010
main90179-11010
9155380612
main91553-80612
9155381018
main91553-81018

14 parts on this diagram · 3 diagrams in section
