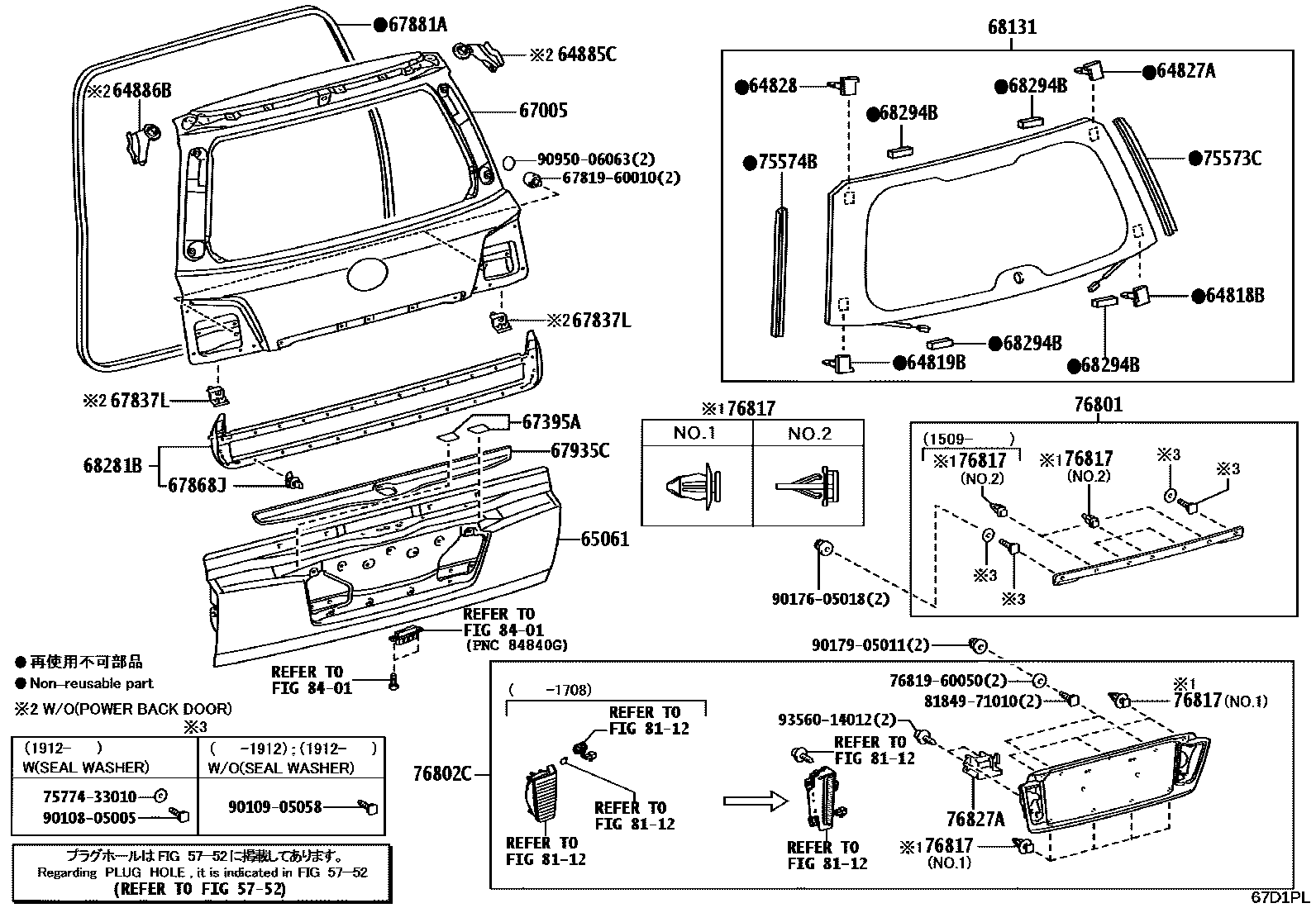

BACK DOOR PANEL & GLASS
5752
64819BSPACER, BACK WINDOW GLASS, NO.2
64885CCHANNEL, BACK DOOR GLASS, RH
64886BCHANNEL, BACK DOOR GLASS, LH
67005PANEL SUB-ASSY, BACK DOOR
WITH(POWER BACK DOOR)
67395APROTECTOR, BACK DOOR, LOWER
WITH(POWER BACK DOOR)
67837LSEAL, DOOR DUST PROOF
67868JRETAINER, DOOR WEATHERSTRIP
PINK
WHITE
67935CGARNISH, BACK DOOR
68131GLASS, BACK DOOR
*TEM,T=3.5,DK.GREEN
*EHT,T=3.1,DK.GRAY
*EHT,T=3.1,DK.GRAY
68294BDAM, BACK DOOR GLASS ADHESIVE
75574BMOULDING, BACK WINDOW, OUTSIDE LH
76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE
PLATED
PLATED
PLATED,BLACK EDITION
CANADA SPEC&BLACK EDITION & SPORTS PACKAGE(MESH *RG)
76802CGARNISH SUB-ASSY, BACK DOOR, OUTSIDE NO.2
WHITE PEARL CS.,077
MERCURY GRAY MC.,1H9
SONIC TITANIUM,1J7
BLACK,202
STARLIGHT BLACK GF.,217
SLEEK ECRU ME.,4U7
DEEP BLUE MC.,8X5
SONIC QUARTZ,085
MERCURY GRAY MC.,1H9
SONIC TITANIUM,1J7
BLACK,202
STARLIGHT BLACK GF.,217
SLEEK ECRU ME.,4U7
TERRANE KHAKI M.M.,6X4
DEEP BLUE MC.,8X5
BLACK EDITION,SONIC QUARTZ,085
CANADA SPEC&BLACK EDITION & SPORTS PACKAGE(MESH *RG),SONIC QUARTZ,085
BLACK EDITION,BLACK,202
CANADA SPEC&BLACK EDITION & SPORTS PACKAGE(MESH *RG),BLACK,202
CANADA SPEC&BLACK EDITION & SPORTS PACKAGE(MESH *RG),TERRANE KHAKI M.M.,6X4
BLACK EDITION,TERRANE KHAKI M.M.,6X4
76817CLIP, BACK DOOR OUTSIDE GARNISH
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
76827ARETAINER, BACK DOOR GARNISH, NO.2
8112
8401
6781960010PAD, BACK DOOR OUTSIDE PANEL
main67819-60010
7577433010PANEL, REAR DOOR OUTER SIDE FINISH, LH
main75774-33010
7681960050SEAL, BACK DOOR OUTSIDE GARNISH
main76819-60050
8184971010
main81849-71010
9010805005
main90108-05005
9010905058
main90109-05058
9017605018
main90176-05018
9017905011
main90179-05011
9095006063
main90950-06063
9356014012
main93560-14012
35 parts on this diagram · 2 diagrams in section
