FRONT FLOOR PANEL & FRONT FLOOR MEMBER

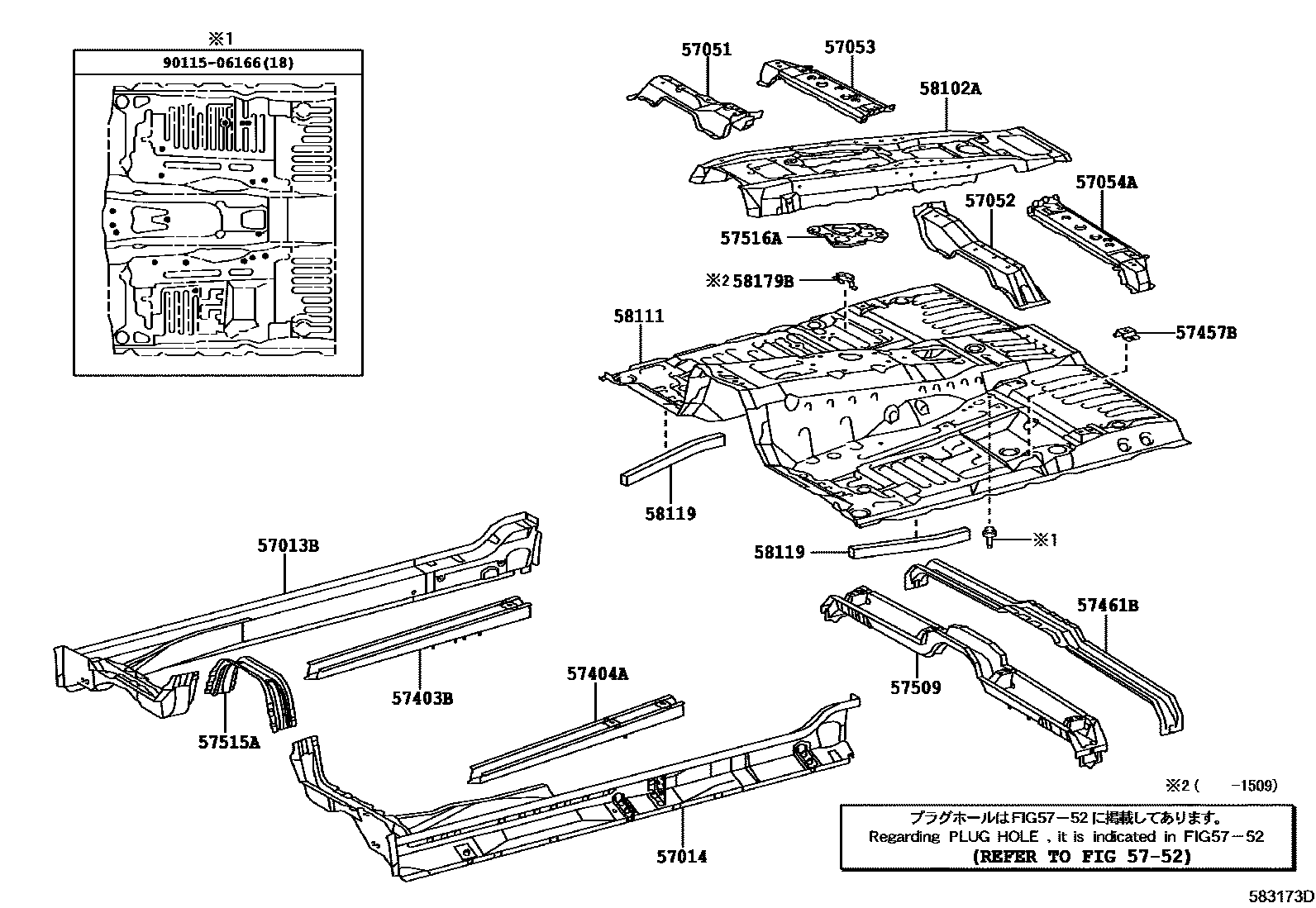

Parts diagram
57013BMEMBER SUB-ASSY, FLOOR, FRONT RH
main57013-60010i200711-201509
57014MEMBER SUB-ASSY, FLOOR, FRONT LH
main57014-60010i200711-201509
57051MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
main57051-60060i200711-201509
main57051-60061i200905-200907
WITH(COOL BOX)&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM+*MAR19SPEAKER&REARSEAT ENTERTAINMENT-WITH&EMV & NAVIGATION SYSTEM-WITHOUT
sub57051-60060
main57051-60061i200905-200907
AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM+*MAR19SPEAKER&REAR SEAT ENTERTAINMENT-WITH&EMV & NAVIGATION SYSTEM-WITHOUT
sub57051-60060
main57051-60061i200907-201108
sub57051-60060
57052MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
main57052-60060i200711-201509
57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH
main57053-60050i200711-201509
57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH
main57054-60010i200711-201509
57403BREINFORCE SUB-ASSY, FLOOR SIDE, INNER RH
main57403-60060i200711-201509
main57417-60080i200905-200907
WITH(COOL BOX)&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM+*MAR19SPEAKER&REARSEAT ENTERTAINMENT-WITH&EMV & NAVIGATION SYSTEM-WITHOUT
main57417-60080i200905-200907
AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM+*MAR19SPEAKER&REAR SEAT ENTERTAINMENT-WITH&EMV & NAVIGATION SYSTEM-WITHOUT
main57417-60080i200907-201108
57404AREINFORCE SUB-ASSY, FLOOR SIDE, INNER LH
main57404-60060i200711-201509
57457BBRACKET, FRONT SEAT, FRONT
main57457-60030i200711-201509
57461BMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1
main57461-60020i200711-201509
57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER
main57509-60090i200711-201509
57515AREINFORCEMENT, FRONT FLOOR, CENTER
main57515-60030i200711-201509
57516ARETAINER, FRONT FLOOR REINFORCEMENT, FRONT
main57516-60010i200711-201509
58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR
main58102-60090i200711-201509
58111PAN, FRONT FLOOR
main58111-60A30i200711-200907
WITH(COOL BOX)
sub58111-60A41
sub90333-20001
main58111-60A30i200711-200907
WITH(COOL BOX)&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM+*MAR19SPEAKER&REARSEAT ENTERTAINMENT-WITH
sub58111-60A41
sub90333-20001
main58111-60A40i200711-200907
WITH(COOL BOX)&EMV & NAVIGATION SYSTEM-WITHOUT
sub58111-60A41
main58111-60A40i200711-200907
WITH(COOL BOX)&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM+*MAR19SPEAKER&REARSEAT ENTERTAINMENT-WITH&EMV & NAVIGATION SYSTEM-WITHOUT
sub58111-60A41
main58111-60A40i200907-201011
WITH(COOL BOX)
sub58111-60A41
main58111-60A41i201012-201308
WITH(COOL BOX)
sub58111-60B70
sub90333-20001
main58111-60A41i201308-201509
WITH(COOL BOX)&AUDIO(FOR OVERSEAS MARKET)-EMV + DVD + AM/FM + *MAR 19SPEAKER
sub58111-60B70
sub90333-20001
main58111-60A50i200711-200907
sub58111-60A61
sub90333-20001
main58111-60A60i200711-200907
AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM+*MAR19SPEAKER&REAR SEAT ENTERTAINMENT-WITH&EMV & NAVIGATION SYSTEM-WITHOUT
sub58111-60A61
main58111-60A60i200711-200907
EMV & NAVIGATION SYSTEM-WITHOUT
sub58111-60A61
main58111-60A60i200907-201011
sub58111-60A61
main58111-60A61i201012-201509
sub58111-60E00
sub90333-20001
main58111-60B70i201201-201509
WITH(COOL BOX)&AUDIO(FOR OVERSEAS MARKET)-EMV + DVD + AM/FM + *MAR 19SPEAKER&REARSEAT ENTERTAINMENT-WITH(DUAL MONITOR)
main58111-60E00i201201-201509
AUDIO(FOR OVERSEAS MARKET)-EMV + DVD + AM/FM + *MAR 19SPEAKER&REAR SEAT ENTERTAINMENT-WITH(DUAL MONITOR)
main58111-60F20i201509-201608
WITH(COOL BOX)
sub58111-60F30
sub90333-20001
main58111-60F30i201509
WITH(COOL BOX)&REAR SEAT ENTERTAINMENT-WITH
main58111-60F60i201509
sub58111-60F70
sub90333-20001
main58111-60F70i201509-201908
REAR SEAT ENTERTAINMENT-WITH
58119PLATE, FRONT FLOOR SIDE, FRONT
main58119-60070i200711-201509
58179BBRACKET, ACCELERATOR CABLE CLAMP
main58179-60020i200711-200907
WITH(COOL BOX)&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM+*MAR19SPEAKER&REARSEAT ENTERTAINMENT-WITH&EMV & NAVIGATION SYSTEM-WITHOUT
main58179-60020i200711-200907
AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM+*MAR19SPEAKER&REAR SEAT ENTERTAINMENT-WITH
main58179-60020i200711-200907
AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM+*MAR19SPEAKER&REAR SEAT ENTERTAINMENT-WITH&EMV & NAVIGATION SYSTEM-WITHOUT
main58179-60020i200711-200907
WITH(COOL BOX)&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM+*MAR19SPEAKER&REARSEAT ENTERTAINMENT-WITH
main58179-60020i200907-201509
9011506166
main90115-06166

18 parts on this diagram · 3 diagrams in section
