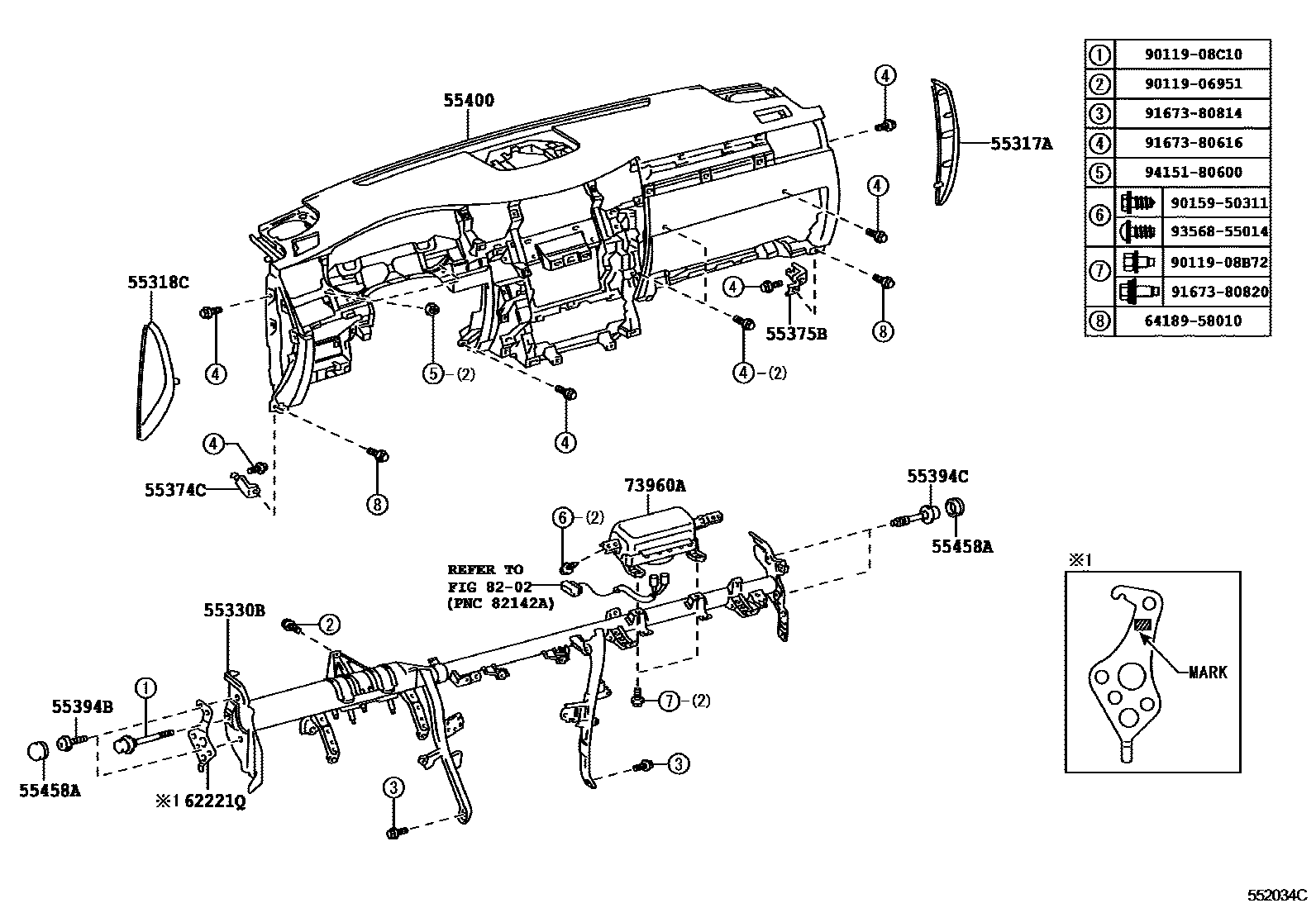

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1DRIVER SIDE 0004 1DRIVER SIDE 0005 1CENTER 0006 1CENTER 0007 1PASSENGER SIDE 0008 1PASSENGER SIDE

55317APANEL, INSTRUMENT SIDE, RH

main55317-60020-A0iURJ201200711-200807

IVORY,TRIM0#

main55317-60020-B0iURJ201200711-200807

MD.GRAY,TRIM1#

main55317-60021-A0iURJ201200808-201201

IVORY,TRIM0#

main55317-60021-A2iURJ201201509

IVORY,TRIM02

main55317-60021-B0iURJ201200808-201008

MD.GRAY,TRIM1#

main55317-60021-C0iURJ201201509

BLACK,TRIM06,2#,3#,4#,5#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-60050-A0iURJ201200711-200807

IVORY,TRIM0#

main55318-60050-B0iURJ201200711-200807

MD.GRAY,TRIM1#

main55318-60051-A0iURJ201200808-201201

IVORY,TRIM0#

main55318-60051-A2iURJ201201201-201509

IVORY,TRIM0#

main55318-60051-B0iURJ201200808-201008

MD.GRAY,TRIM1#

main55318-60051-C0iURJ201201201-201509

BLACK,TRIM2#,4#,5#

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-60210iURJ201200711-201201

main55330-60350iURJ201201201-201509

main55330-60400iURJ201201509-201708

main55330-60460iURJ201201708

55374CBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1

main55374-60090iURJ201200711-201201

55375BBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2

main55375-60090iURJ201200711-201201

55394BBOLT, INSTRUMENT PANEL

main55394-50010×2iURJ201201509

55394CBOLT, INSTRUMENT PANEL

main55394-33041×2iURJ201200711-201201

55400PAD ASSY, INSTRUMENT PANEL SAFETY

main55400-60070-C1iURJ201201509-201511

BLACK,TRIM2#,3#,4#

main55400-60070-E2iURJ201201509-201511

ORCHID BROWN,TRIM0#

main55400-60071-C1iURJ201201512

BLACK,TRIM06,2#,3#,4#,5#

main55400-60071-E2iURJ201201512

ORCHID BROWN,TRIM02

main55401-60420-C0iURJ201200711-201008

MD.GRAY,TRIM1#

sub55401-60421

main55401-60420-C1iURJ201201008-201201

BLACK,TRIM2#

sub55401-60421

main55401-60420-E0iURJ201200711-201201

IVORY,TRIM0#

sub55401-60421

main55401-60420-E1iURJ201201201-201509

ORCHID BROWN,TRIM0#

sub55401-60421

55458ACAP, INSTRUMENT PANEL SAFETY PAD

main55458-50100×4iURJ201200711-201201

62221QSPACER, FRONT PILLAR, NO.1 RH

main62221-60070iURJ201201201-201509

MARK 1L

main62221-60080iURJ201200711-201201

MARK 2L

main62221-60090iURJ201201509

MARK 3L

main62221-60100iURJ201200711-201201

MARK 4L

main62221-60110iURJ201201201-201509

MARK 5L

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-60170iURJ201201201-201509

8202

6418958010CLAMP, BACK PANEL SILENCER

main64189-58010

9011906951

main90119-06951

9011908B72

main90119-08B72

9011908C10

main90119-08C10

9015950311

main90159-50311

9167380616

main91673-80616

9167380814

main91673-80814

9167380820

main91673-80820

9356855014

main93568-55014

9415180600

main94151-80600

22 parts on this diagram · 8 diagrams in section
