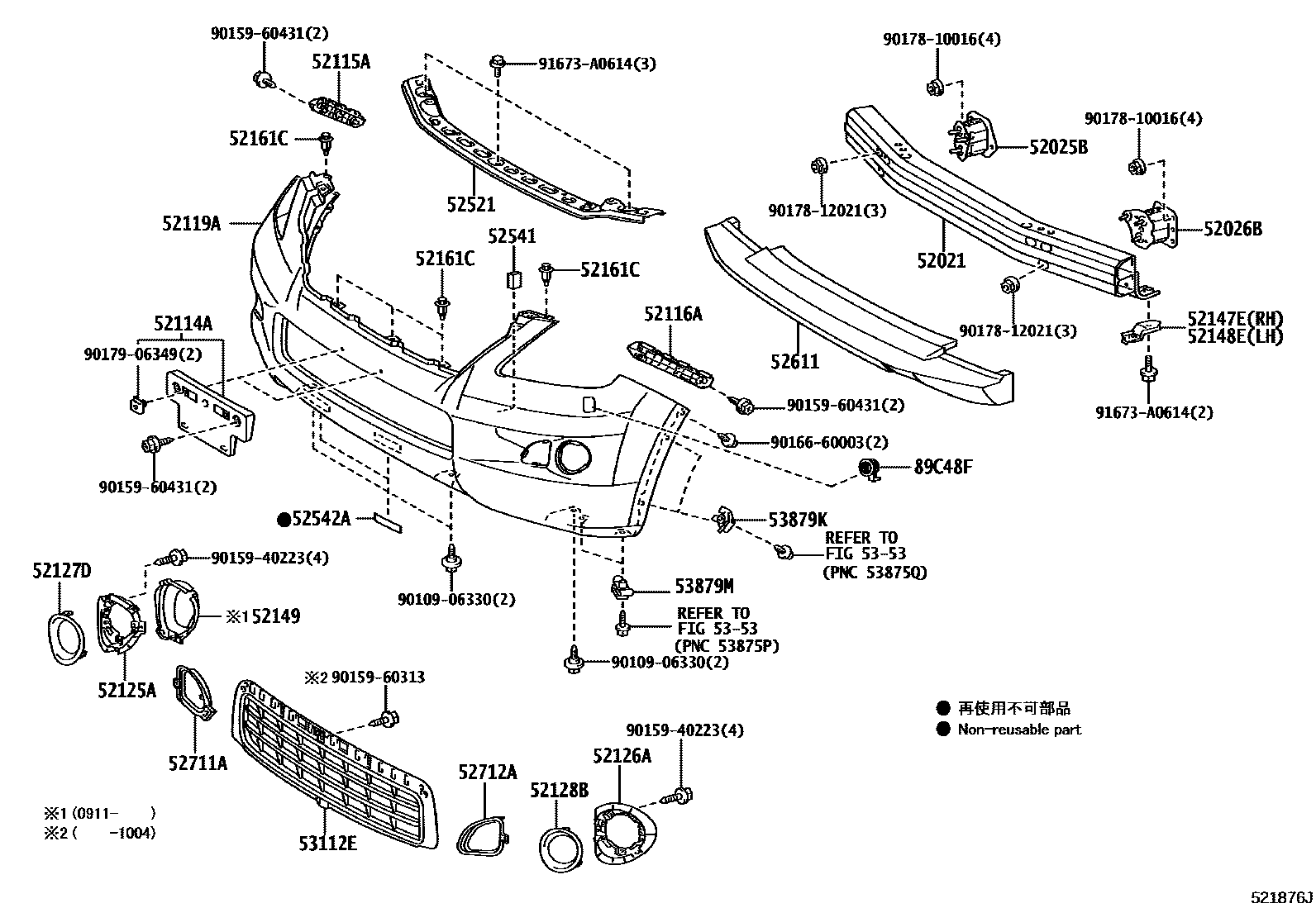

FRONT BUMPER & BUMPER STAY
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING
52115ASUPPORT, FRONT BUMPER SIDE, RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
52119ACOVER, FRONT BUMPER
PAINT REQ.
PAINT REQ.
PAINT REQ.
52126ABRACKET, FOG LAMP MOUNTING, LH
52127DCOVER, FRONT BUMPER HOLE, RH
52128BCOVER, FRONT BUMPER HOLE, LH
52147EBRACKET, FRONT BUMPER MOUNTING, RH
52148EBRACKET, FRONT BUMPER MOUNTING, LH
52149BRACKET, FRONT BUMPER, INNER
52161CPIECE, FRONT BUMPER
sub52161-0K040
52521RETAINER, FRONT BUMPER, UPPER CENTER
52541PROTECTOR, FRONT BUMPER
52542APROTECTOR, FRONT BUMPER, NO.2
52611ABSORBER, FRONT BUMPER ENERGY
52712AGARNISH, FRONT BUMPER, LH
53112EGRILLE, RADIATOR, LOWER NO.1
NO PAINT REQ.
NO PAINT REQ.
5353
53879KRETAINER, FRONT FENDER LINER
53879MRETAINER, FRONT FENDER LINER
89C48FRETAINER, ULTRASONIC SENSOR, FRONT SIDE
9010906330
main90109-06330
9015940223
main90159-40223
9015960313
main90159-60313
9015960431
main90159-60431
9016660003
main90166-60003
9017810016
main90178-10016
9017812021
main90178-12021
9017906349
main90179-06349
91673A0614
main91673-A0614
35 parts on this diagram · 3 diagrams in section
