DISC WHEEL & WHEEL CAP

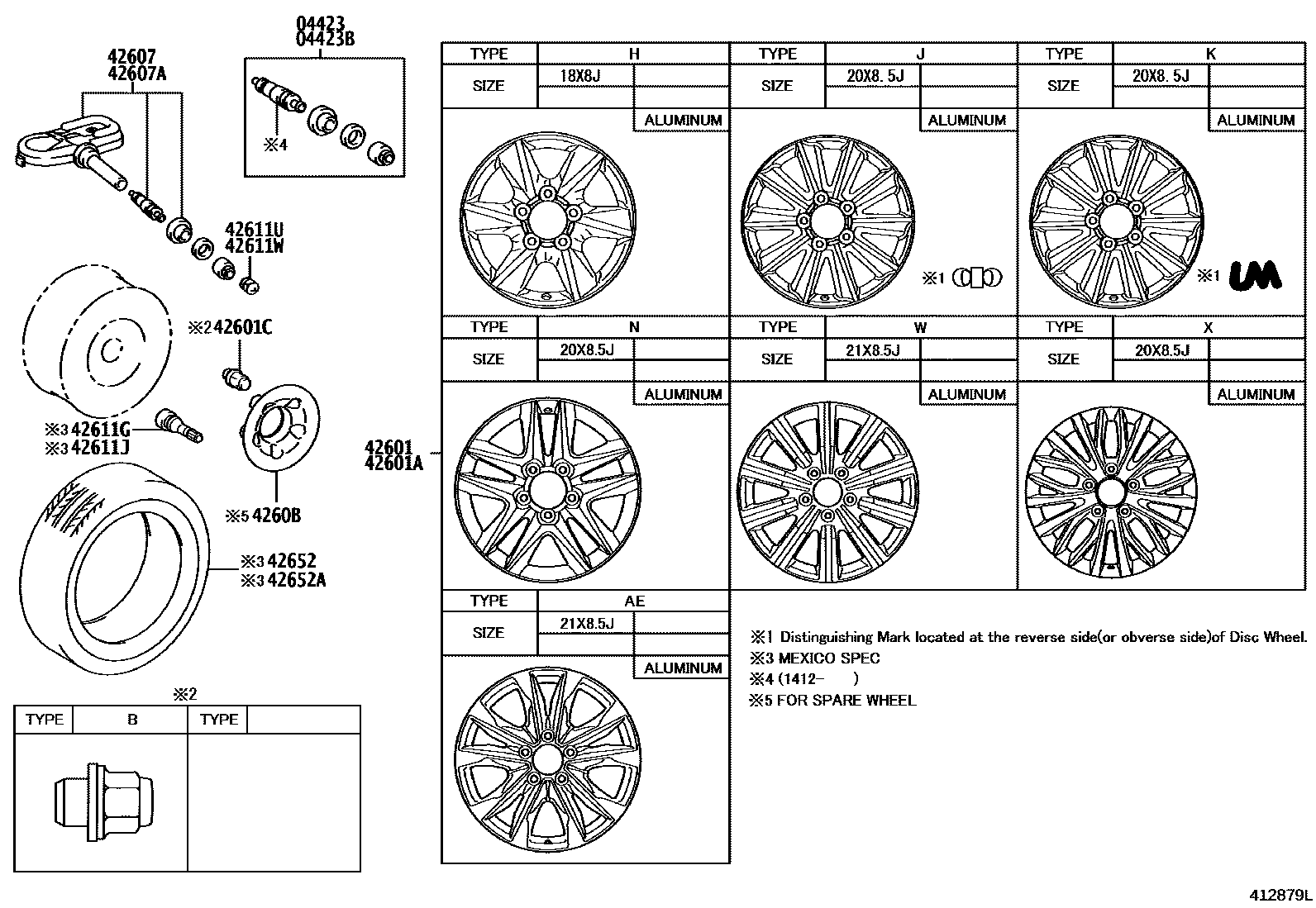

Parts diagram
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
main04423-33030i200711-201411
sub04423-33060
main04423-33060i201412-201509
04423BFITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE(SPARE)
main04423-33030i200711-201411
sub04423-33060
main04423-33060i201412-201509
42601WHEEL, DISC
main42611-60690i200711-201008
18X8J, #,TYPE H:REFER ILLUST.
sub42611-60691
main42611-60C90i201509-201708
21X8.5J, #,TIRE & DISC WHEEL-275/50R21, 8.5J, ALUMINUM,TYPE W:REFER ILLUST.
sub42611-60C91
main42611-60D00i201509-201908
20X8.5J, #,TYPE X:REFER ILLUST.
sub42611-60D01
main42611-60D01i201909
20X8.5J, #,TYPE X:REFER ILLUST.
main42611-60E30i201708-201908
21X8.5J, #,TIRE & DISC WHEEL-275/50R21, 8.5J, ALUMINUM,TYPE W:REFER ILLUST.
sub42611-60E31
main42611-60E31i201909
21X8.5J, #,TIRE & DISC WHEEL-275/50R21, 8.5J, ALUMINUM,TYPE W:REFER ILLUST.
main42611-60E50i202008
21X8.5J, #,CANADA SPEC&BLACK EDITION & SPORTS PACKAGE(MESH *RG)&TIRE & DISC WHEEL-275/50R21, 8.5J, ALUMINUM,TYPE W:REFER ILLUST.
main42611-60E50i202008
21X8.5J, #,BLACK EDITION&TIRE & DISC WHEEL-275/50R21, 8.5J, ALUMINUM,TYPE W:REFERILLUST.
main42611-60E50i201808-201908
21X8.5J, #,TIRE & DISC WHEEL-275/50R21, 8.5J, ALUMINUM,TYPE W:REFER ILLUST.
main42611-WQ070i202008
21X8.5J,SPORTS PACKAGE(MESH *RG)&TIRE & DISC WHEEL-275/50R21, 8.5J, ALUMINUM,T/P AE:REFER ILLUST.
main42611-WQ070i202008
21X8.5J,CANADA SPEC&BLACK EDITION & SPORTS PACKAGE(MESH *RG)&TIRE & DISC WHEEL-275/50R21, 8.5J, ALUMINUM,T/P AE:REFER ILLUST.
main4261A-60010i201008-201201
20X8.5J, #,STEERING WHEEL-WOOD(BUBINGA),W(STRG SWITCH & HEATER),TYPE J:REFER ILLUST.
main4261A-60010i201008-201201
20X8.5J, #,STEERING WHEEL-WOOD(BUBINGA),W(STEERING SWITCH),TYPE J:REFER ILLUST.
main4261A-60010i200907-201008
20X8.5J, #,MEXICO SPEC&TIRE & DISC WHEEL-285/50R20,8.5J ALUMINUM SILVER PAINTED,TYPE J:REFER ILLUST.
main4261A-60010i200907-201008
20X8.5J, #,MEXICO SPEC&TIRE & DISC WHEEL-285/50R20,8.5J ALUMINUM CHROME PAINTED,TYPE J:REFER ILLUST.
main4261A-60010i200711-201008
20X8.5J, #,TIRE & DISC WHEEL-285/50R20,8.5J ALUMINUM CHROME PAINTED,TYPE J:REFER ILLUST.
main4261A-60010i201008-201201
20X8.5J, #,STEERING WHEEL-WOOD(BUBINGA),W(STEERING SWITCH-W/ACC),TYPE J:REFER ILLUST.
main4261A-60010i201008-201201
20X8.5J, #,STEERING WHEEL-WOOD(BUBINGA),W(STEERING SWITCH&HEATER),TYPE J:REFER ILLUST.
main4261A-60020i200907-201008
20X8.5J, #,MEXICO SPEC&TIRE & DISC WHEEL-285/50R20,8.5J ALUMINUM CHROME PAINTED,TYPE K:REFER ILLUST.
sub4261A-60010
main4261A-60020i200907-201008
20X8.5J, #,MEXICO SPEC&TIRE & DISC WHEEL-285/50R20,8.5J ALUMINUM SILVER PAINTED,TYPE K:REFER ILLUST.
sub4261A-60010
main4261A-60020i201008-201201
20X8.5J, #,STEERING WHEEL-WOOD(BUBINGA),W(STEERING SWITCH),TYPE K:REFER ILLUST.
sub4261A-60010
main4261A-60020i201008-201201
20X8.5J, #,STEERING WHEEL-WOOD(BUBINGA),W(STEERING SWITCH-W/ACC),TYPE K:REFER ILLUST.
sub4261A-60010
main4261A-60020i201008-201201
20X8.5J, #,STEERING WHEEL-WOOD(BUBINGA),W(STEERING SWITCH&HEATER),TYPE K:REFER ILLUST.
sub4261A-60010
main4261A-60020i201008-201201
20X8.5J, #,STEERING WHEEL-WOOD(BUBINGA),W(STRG SWITCH & HEATER),TYPE K:REFER ILLUST.
sub4261A-60010
main4261A-60020i200711-201008
20X8.5J, #,TIRE & DISC WHEEL-285/50R20,8.5J ALUMINUM CHROME PAINTED,TYPE K:REFER ILLUST.
sub4261A-60010
main4261A-60040i200711-201008
20X8.5J, #,TIRE & DISC WHEEL-285/50R20,8.5J ALUMINUM SILVER PAINTED,TYPE K:REFER ILLUST.
sub4261A-60110
main4261A-60040i201008-201201
20X8.5J, #,TYPE K:REFER ILLUST.
sub4261A-60110
main4261A-60060i201201-201309
20X8.5J, #,TYPE N:REFER ILLUST.
sub4261A-60061
main4261A-60061i201310-201509
20X8.5J, #,TYPE N:REFER ILLUST.
sub4261A-60062
42601AWHEEL, DISC (FOR SPARE)
main42611-60690i200711-201008
18X8J, #,TYPE H:REFER ILLUST.
sub42611-60691
main42611-60C90i201509-201708
21X8.5J, #,TIRE & DISC WHEEL-275/50R21, 8.5J, ALUMINUM,TYPE W:REFER ILLUST.
sub42611-60C91
main42611-60D00i201509-201908
20X8.5J, #,TYPE X:REFER ILLUST.
sub42611-60D01
main42611-60D01i201909
20X8.5J, #,TYPE X:REFER ILLUST.
main42611-60E30i201708-201908
21X8.5J, #,TIRE & DISC WHEEL-275/50R21, 8.5J, ALUMINUM,TYPE W:REFER ILLUST.
sub42611-60E31
main42611-60E31i201909
21X8.5J, #,TIRE & DISC WHEEL-275/50R21, 8.5J, ALUMINUM,TYPE W:REFER ILLUST.
main42611-60E50i202008
21X8.5J, #,BLACK EDITION&TIRE & DISC WHEEL-275/50R21, 8.5J, ALUMINUM,TYPE W:REFERILLUST.
main42611-60E50i202008
21X8.5J, #,CANADA SPEC&BLACK EDITION & SPORTS PACKAGE(MESH *RG)&TIRE & DISC WHEEL-275/50R21, 8.5J, ALUMINUM,TYPE W:REFER ILLUST.
main42611-60E50i201808-201908
21X8.5J, #,TIRE & DISC WHEEL-275/50R21, 8.5J, ALUMINUM,TYPE W:REFER ILLUST.
main42611-WQ070i202008
21X8.5J,SPORTS PACKAGE(MESH *RG)&TIRE & DISC WHEEL-275/50R21, 8.5J, ALUMINUM,T/P AE:REFER ILLUST.
main42611-WQ070i202008
21X8.5J,CANADA SPEC&BLACK EDITION & SPORTS PACKAGE(MESH *RG)&TIRE & DISC WHEEL-275/50R21, 8.5J, ALUMINUM,T/P AE:REFER ILLUST.
main4261A-60010i201008-201201
20X8.5J, #,STEERING WHEEL-WOOD(BUBINGA),W(STEERING SWITCH-W/ACC),TYPE J:REFER ILLUST.
main4261A-60010i201008-201201
20X8.5J, #,STEERING WHEEL-WOOD(BUBINGA),W(STEERING SWITCH&HEATER),TYPE J:REFER ILLUST.
main4261A-60010i201008-201201
20X8.5J, #,STEERING WHEEL-WOOD(BUBINGA),W(STRG SWITCH & HEATER),TYPE J:REFER ILLUST.
main4261A-60010i201008-201201
20X8.5J, #,STEERING WHEEL-WOOD(BUBINGA),W(STEERING SWITCH),TYPE J:REFER ILLUST.
main4261A-60010i200711-201008
20X8.5J, #,TIRE & DISC WHEEL-285/50R20,8.5J ALUMINUM CHROME PAINTED,TYPE J:REFER ILLUST.
main4261A-60010i200907-201008
20X8.5J, #,MEXICO SPEC&TIRE & DISC WHEEL-285/50R20,8.5J ALUMINUM CHROME PAINTED,TYPE J:REFER ILLUST.
main4261A-60010i200907-201008
20X8.5J, #,MEXICO SPEC&TIRE & DISC WHEEL-285/50R20,8.5J ALUMINUM SILVER PAINTED,TYPE J:REFER ILLUST.
main4261A-60020i201008-201201
20X8.5J, #,STEERING WHEEL-WOOD(BUBINGA),W(STEERING SWITCH&HEATER),TYPE K:REFER ILLUST.
sub4261A-60010
main4261A-60020i200711-201008
20X8.5J, #,TIRE & DISC WHEEL-285/50R20,8.5J ALUMINUM CHROME PAINTED,TYPE K:REFER ILLUST.
sub4261A-60010
main4261A-60020i200907-201008
20X8.5J, #,MEXICO SPEC&TIRE & DISC WHEEL-285/50R20,8.5J ALUMINUM CHROME PAINTED,TYPE K:REFER ILLUST.
sub4261A-60010
main4261A-60020i200907-201008
20X8.5J, #,MEXICO SPEC&TIRE & DISC WHEEL-285/50R20,8.5J ALUMINUM SILVER PAINTED,TYPE K:REFER ILLUST.
sub4261A-60010
main4261A-60020i201008-201201
20X8.5J, #,STEERING WHEEL-WOOD(BUBINGA),W(STEERING SWITCH),TYPE K:REFER ILLUST.
sub4261A-60010
main4261A-60020i201008-201201
20X8.5J, #,STEERING WHEEL-WOOD(BUBINGA),W(STEERING SWITCH-W/ACC),TYPE K:REFER ILLUST.
sub4261A-60010
main4261A-60020i201008-201201
20X8.5J, #,STEERING WHEEL-WOOD(BUBINGA),W(STRG SWITCH & HEATER),TYPE K:REFER ILLUST.
sub4261A-60010
main4261A-60040i201008-201201
20X8.5J, #,TYPE K:REFER ILLUST.
sub4261A-60110
main4261A-60040i200711-201008
20X8.5J, #,TIRE & DISC WHEEL-285/50R20,8.5J ALUMINUM SILVER PAINTED,TYPE K:REFER ILLUST.
sub4261A-60110
main4261A-60060i201201-201309
20X8.5J, #,TYPE N:REFER ILLUST.
sub4261A-60061
main4261A-60061i201310-201509
20X8.5J, #,TYPE N:REFER ILLUST.
sub4261A-60062
42601CNUT, HUB (FOR AXLE)
main90942-01103i200711-201509
TYPE B:REFER ILLUST.
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
main42607-33021i200711-201509
sub42607-33022
main42607-48010i201509
42607AVALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE)
main42607-33021i200711-201509
sub42607-33022
main42607-48010i201509-201708
TIRE & DISC WHEEL-275/50R21, 8.5J, ALUMINUM
main42607-48010i201509
4260BCOVER SUB-ASSY, WHEEL HUB
main4260B-60410i201509
42611GVALVE (FOR TUBELESS TIRE)
main90942-05009i200907-201008
MEXICO SPEC&TIRE & DISC WHEEL-285/50R20,8.5J ALUMINUM CHROME PAINTED
main90942-05009i200907-201008
MEXICO SPEC&TIRE & DISC WHEEL-285/50R20,8.5J ALUMINUM SILVER PAINTED
main90942-05009i200907-201008
MEXICO SPEC
42611JVALVE (FOR TUBELESS TIRE SPARE)
main90942-05009i200907-201008
MEXICO SPEC&TIRE & DISC WHEEL-285/50R20,8.5J ALUMINUM CHROME PAINTED
main90942-05009i200907-201008
MEXICO SPEC
main90942-05009i200907-201008
MEXICO SPEC&TIRE & DISC WHEEL-285/50R20,8.5J ALUMINUM SILVER PAINTED
42611UCAP, TIRE VALVE
main90942-05037i200711-201206
main90942-05042i201206-201509
42611WCAP, TIRE VALVE (FOR SPARE)
main90942-05037i200711-201206
main90942-05042i201206-201509
main90942-05042i201509-201708
TIRE & DISC WHEEL-275/50R21, 8.5J, ALUMINUM
42652TIRE
main42652-60D40i200907-201008
285/60R18,*D/L,MEXICO SPEC
sub42652-60D41
main42652-60D50i200907-201008
285/60R18,*Y/H,MEXICO SPEC
sub42652-60D51
main42652-60D80i200711-201008
285/50R20,*D/L,TIRE & DISC WHEEL-285/50R20,8.5J ALUMINUM CHROME PAINTED
main42652-60D80i200711-201008
285/50R20,*D/L,TIRE & DISC WHEEL-285/50R20,8.5J ALUMINUM SILVER PAINTED
main42652-60D80i201008-201201
285/50R20,*D/L
42652ATIRE (FOR SPARE)
main42652-60D40i200907-201008
285/60R18,*D/L,MEXICO SPEC
sub42652-60D41
main42652-60D50i200907-201008
285/60R18,*Y/H,MEXICO SPEC
sub42652-60D51
main42652-60D80i200711-201008
285/50R20,*D/L,TIRE & DISC WHEEL-285/50R20,8.5J ALUMINUM CHROME PAINTED
main42652-60D80i200711-201008
285/50R20,*D/L,TIRE & DISC WHEEL-285/50R20,8.5J ALUMINUM SILVER PAINTED
main42652-60D80i201008-201201
285/50R20,*D/L

14 parts on this diagram · 3 diagrams in section
