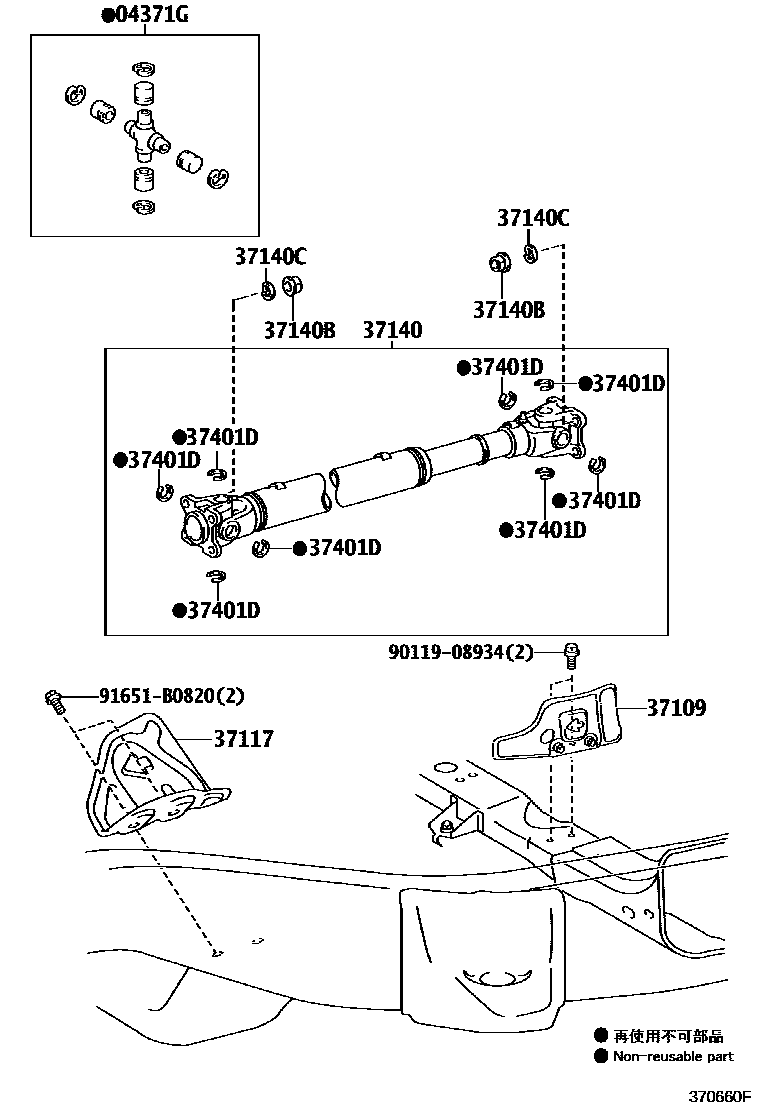

PROPELLER SHAFT & UNIVERSAL JOINT
37109BRACKET SUB-ASSY, PROPELLER SHAFT HEAT INSULATOR, NO.1
37117INSULATOR, PROPELLER SHAFT HEAT
37140BNUT (F0R FRONT PROPELLER SHAFT)
37140CWASHER (F0R FRONT PROPELLER SHAFT)
37401DRING, SNAP (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING)
T=2.29,MARK 1
T=2.31,MARK 2
T=2.33,NO MARK
T=2.35,BROWN
T=2.37,BLUE
T=2.39,MARK 6
T=2.41,MARK 7
T=2.43,MARK 8
T=2.45,MARK 9
T=2.47,MARK 10
T=2.49,MARK A
T=2.51,MARK B
T=2.53,MARK C
T=2.55,MARK D
T=2.57,MARK E
T=2.19,MARK D
T=2.21,MARK E
T=2.23,MARK F
T=2.25,MARK G
T=2.27,MARK H
T=2.00,NO MARK
T=2.03,BROWN
T=2.06,BLUE
T=2.09,NO MARK
T=1.99,MARK 1
T=2.01,MARK 2
T=2.03,MARK 3
T=2.05,MARK 4
T=2.07,MARK 5
T=2.09,MARK 6
T=2.11,MARK 7
T=2.13,MARK 8
T=2.15,MARK 9
T=2.17,MARK 10
9011908934
main90119-08934
91651B0820
main91651-B0820
9 parts on this diagram · 2 diagrams in section
