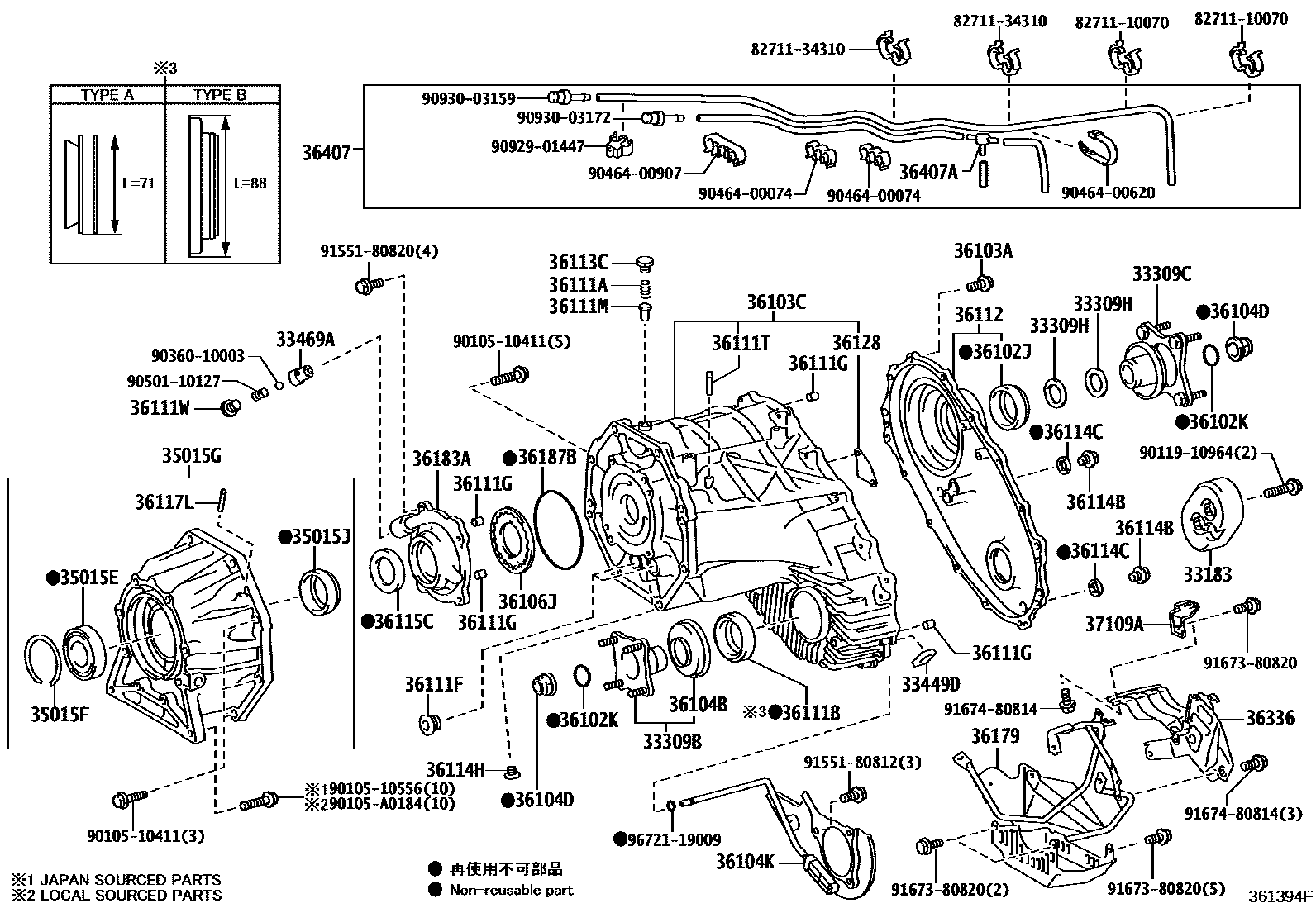

TRANSFER CASE & EXTENSION HOUSING
33183DAMPER, TRANSFER DYNAMIC
33309CFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION
33309HWASHER, TRANSFER OUTPUT SHAFT
T=0.8
33449DMAGNET (FOR TRANSFER CASE)
33469ASEAT, RELIEF VALVE (FOR TRANSFER EXTENSION REAR HOUSING)
35015EBEARING, RADIAL BALL(FOR TRANSFER CASE ADAPTER)
(J)
35015FRING, HOLE SNAP(FOR TRANSFER ADAPTER)
(L)
(J)
35015GADAPTER, TRANSFER, REAR
(L)
TOWING PACKAGE-WITH(NORTH AMERICA,W(ENGINE OIL COOLER)),(L)
(J)
35015JSEAL, OIL(FOR TRANSFER CASE ADAPTER REAR)
sub90311-51010
36102KRING, O
36103ABOLT (FOR TRANSFER CASE)
*8-1.25PX45-22
36103CCASE, TRANSFER, FRONT
36104DNUT (FOR TRANSFER OUTPUT SHAFT)
36104KSEPARATOR SUB-ASSY, TRANSFER OIL
36106JROTOR, TRANSFER OIL PUMP
36111ASPRING, COMPRESSION (FOR TRANSFER CASE)
36111BSEAL, OIL (FOR TRANSFER CASE)
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
36111FPLUG (FOR TRANSFER CASE)
36111GPIN, STRAIGHT (FOR TRANSFER CASE)
L=14,OD=10
36111MPIN, SLOTTED SPRING (FOR TRANSFER CASE)
36111TTUBE (FOR TRANSFER CASE)
sub90406-T0007
36111WPLUG, TIGHT NO.2(FOR TRANSFER CASE)
36113CPLUG (FOR TRANSFER CASE)
36114BPLUG, NO.1 (FOR TRANSFER CASE)
36114CGASKET, NO.1 (FOR TRANSFER CASE)
36114HPLUG, NO.2 (FOR TRANSFER CASE)
36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)
36117LTUBE(FOR TRANSFER ADAPTER)
sub90406-T0007
36128DEFLECTOR, BREATHER OIL
T=0.40
T=1.4
36179PROTECTOR, TRANSFER CASE LOWER
36183APLATE, TRANSFER OIL PUMP
36187BRING, O (FOR TRANSFER OIL STRAINER)
36336INSULATOR, TRANSFER HEAT
36407HOSE SUB-ASSY, TRANSFER BREATHER
36407AWAY, 3(FOR TRANSFER BREATHER HOSE)
37109ABRACKET SUB-ASSY, PROPELLER SHAFT HEAT INSULATOR
8271110070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-10070
8271134310WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-34310
9010510411
main90105-10411
9010510556
main90105-10556
90105A0184
main90105-A0184
9011910964
main90119-10964
9036010003
main90360-10003
9046400074
main90464-00074
9046400620
main90464-00620
9046400907
main90464-00907
9050110127
main90501-10127
9092901447
main90929-01447
9093003159
main90930-03159
9093003172
main90930-03172
9155180812
main91551-80812
9155180820
main91551-80820
9167380820
main91673-80820
9167480814
main91674-80814
9672119009
main96721-19009
59 parts on this diagram · 2 diagrams in section
