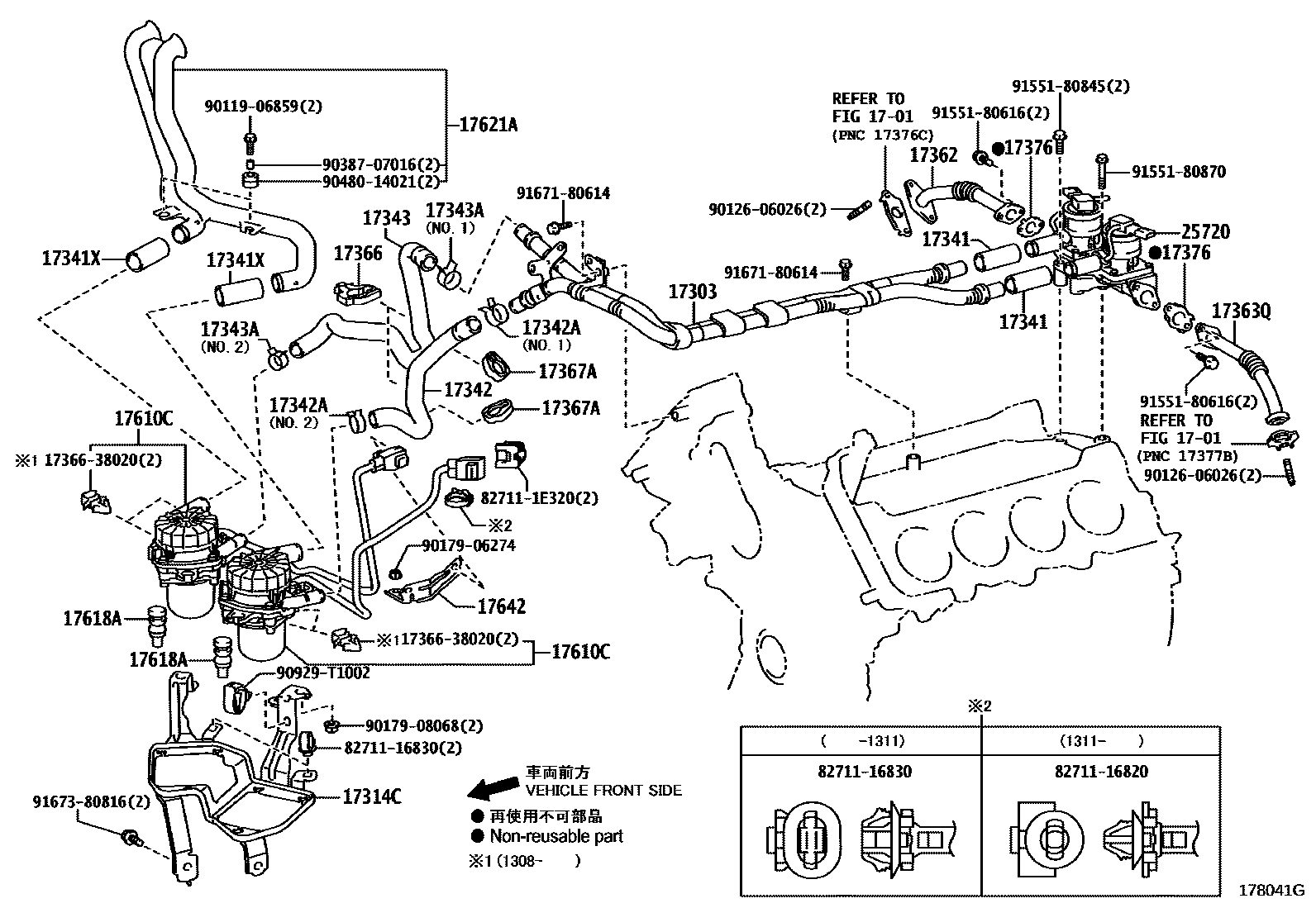

MANIFOLD AIR INJECTION SYSTEM
1701
17303PIPE SUB-ASSY, AIR
*119
*145
17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)
*119
*145
17341XHOSE, AIR, NO.1
17342HOSE, NO.2(FOR AIR INJECTION SYSTEM)
17342ACLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2)
NO.1
NO.2
17343HOSE, NO.3(FOR AIR INJECTION SYSTEM)
17343ACLAMP OR CLIP, NO.3(FOR AIR INJECTION SYSTEM HOSE, NO.3)
NO.1
NO.2
17362TUBE, AIR, NO.2
*145
*119
17363QTUBE, AIR, NO.3
*145
*119
17366CLAMP, AIR INJECTION HOSE, NO.1
17367ACLAMP, AIR INJECTION HOSE, NO.2
17376GASKET, AIR TUBE, NO.1
*145
*119
17610CPUMP ASSY, AIR
17618AINSULATOR, AIR PUMP
17642BRACKET, AIR PUMP WIRE
1736638020CLAMP, AIR INJECTION HOSE, NO.1
main17366-38020
8271116820WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16820
8271116830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16830
827111E320WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E320
9011906859
main90119-06859
9012606026
main90126-06026
9017906274
main90179-06274
9017908068
main90179-08068
9038707016
main90387-07016
9048014021
main90480-14021
90929T1002
main90929-T1002
9155180616
main91551-80616
9155180845
main91551-80845
9155180870
main91551-80870
9167180614
main91671-80614
9167380816
main91673-80816
35 parts on this diagram · 1 diagram in section
