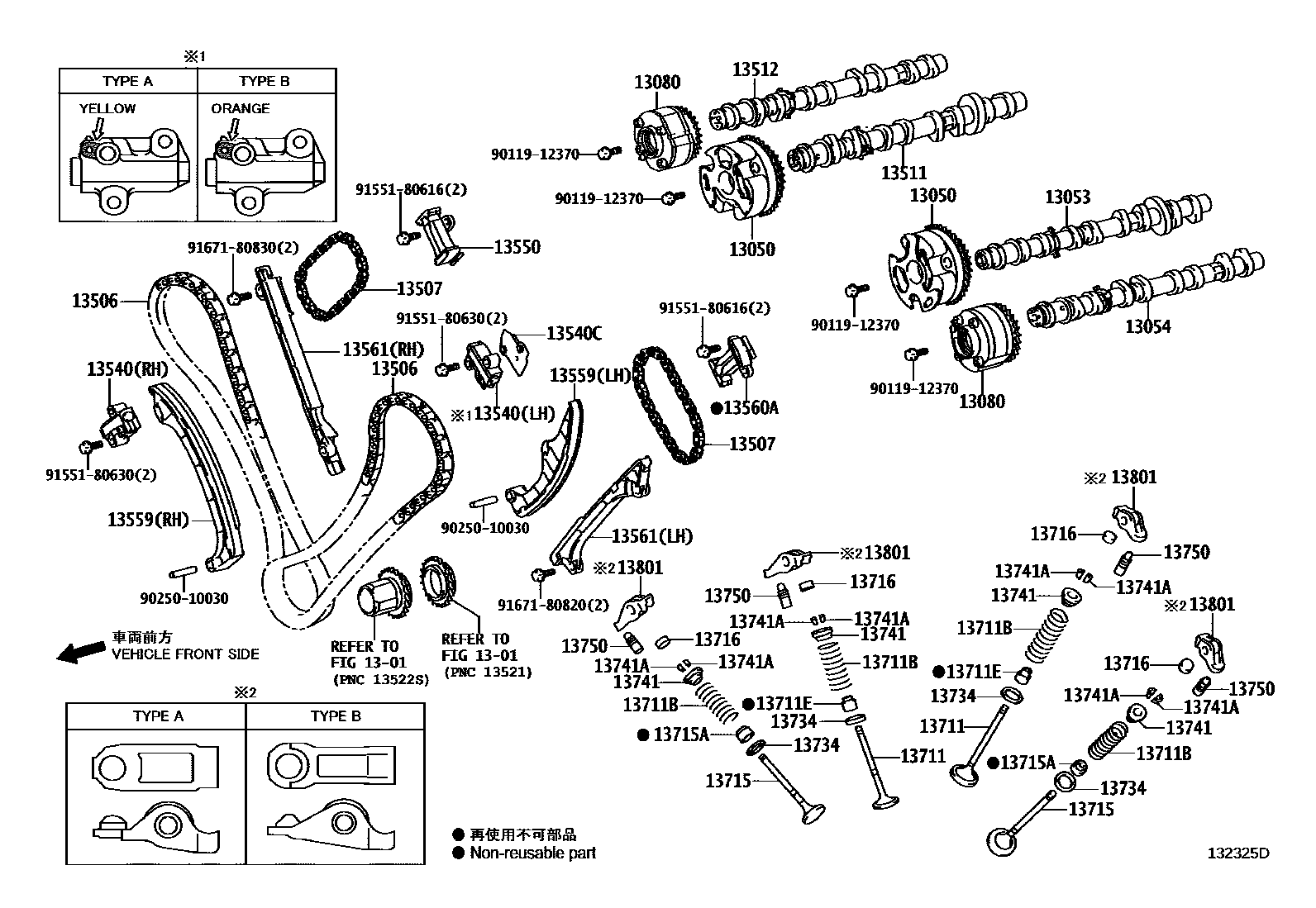

CAMSHAFT & VALVE
1301
13050GEAR ASSY, CAMSHAFT TIMING
*145
*119
13053CAMSHAFT SUB-ASSY, NO.3
*119
(J),*145
(J),*119
13054CAMSHAFT SUB-ASSY, NO.4
*119
(J),*145
(J),*119
13506CHAIN SUB-ASSY
(L),*145
(J),*145
*119
13507CHAIN SUB-ASSY, NO.2
(L),*145
(J),*145
*119
13511CAMSHAFT
*119
(J),*145
(J),*119
13512CAMSHAFT, NO.2
*119
(J),*145
(J),*119
13540TENSIONER ASSY, CHAIN, NO.1
RH,(L),*145
RH,(J),*145
RH,*119
RH
LH
LH,TYPE A,*119
13540CGASKET(FOR CHAIN TENSIONER)
*119
*145
13550TENSIONER ASSY, CHAIN, NO.2
(L),*145
(J),*145
*119
13559SLIPPER, CHAIN TENSIONER
LH,(L),*145
RH,*119
RH
LH,*119
LH,(J),*145
LH
LH,*119
13560ATENSIONER ASSY, CHAIN, NO.3
(L),*145
(J),*145
*119
13561DAMPER, CHAIN VIBRATION, NO.1
RH,*119
RH
RH,*145
RH,*119
LH,*119
LH,*119
LH
LH,*145
13711ESEAL, INTAKE VALVE STEM OIL
*145
*119
13715VALVE, EXHAUST
*145
*119
13715ASEAL, EXHAUST VALVE STEM OIL
*145
*119
13716CAP, VALVE STEM
*145
*119
13734SEAT, VALVE SPRING
*145
*119
13741RETAINER, VALVE SPRING
*145
*119
PNC 13801=TYPE A
PNC 13801=TYPE B
13741ALOCK, VALVE SPRING RETAINER
*119
*145
13750ADJUSTER ASSY, VALVE LASH
*145
*119
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
*145
*119
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
9011912370
main90119-12370
9025010030
main90250-10030
9155180616
main91551-80616
9155180630
main91551-80630
9167180820
main91671-80820
9167180830
main91671-80830
32 parts on this diagram · 1 diagram in section
