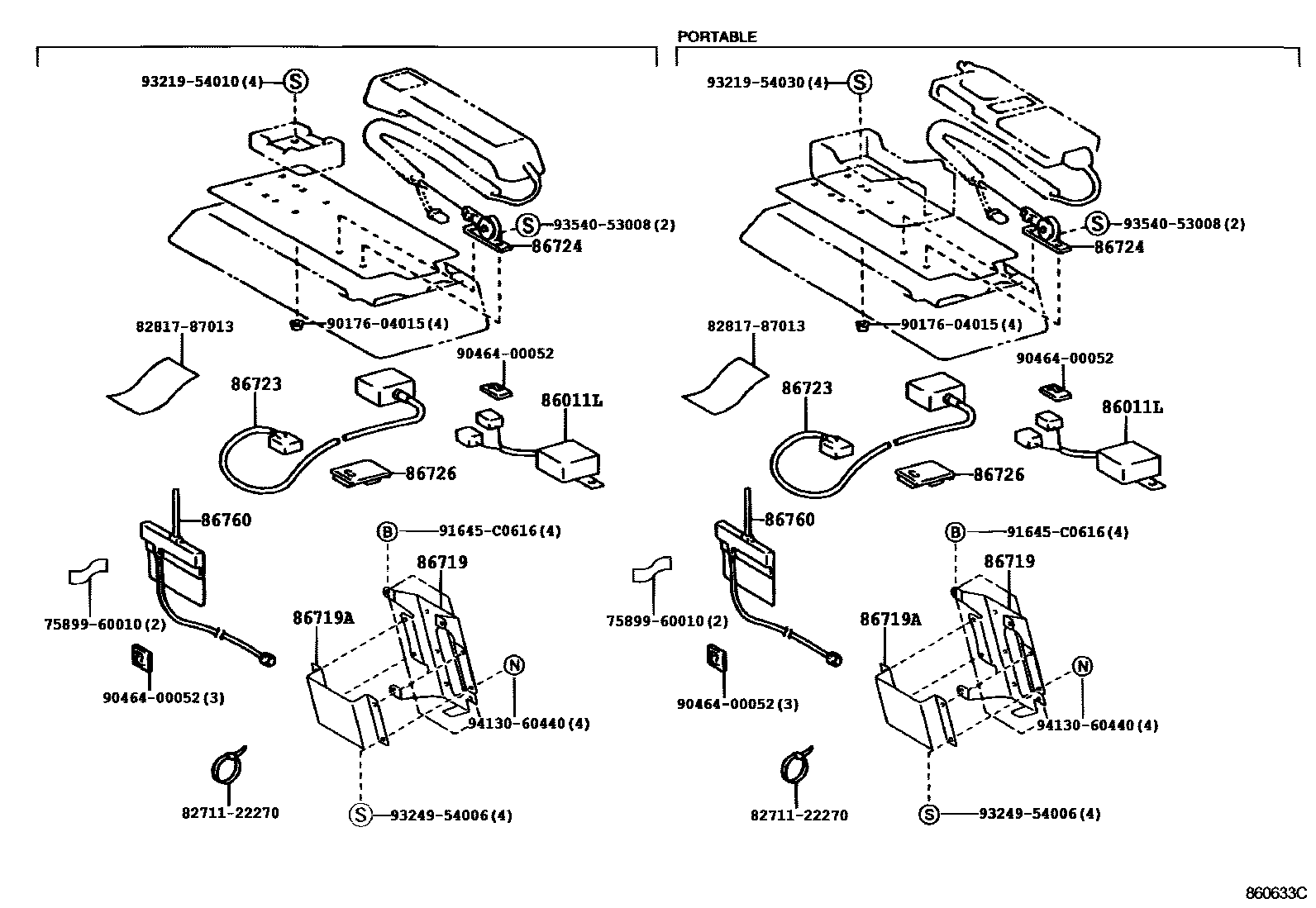

TELEPHONE & MAYDAY
86011LFILTER, NOISE
86719BRACKET, TELEPHONE
86719ABRACKET, TELEPHONE NO.1
86723WIRE, MOBILEPHONE
86724GUIDE, CURL CORD
7589960010TAPE, MOULDING, NO.5
main75899-60010
8271122270WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-22270
8281787013PROTECTOR, WIRING HARNESS, NO.1
main82817-87013
9017604015
main90176-04015
9046400052
main90464-00052
91645C0616
main91645-C0616
9321954010
main93219-54010
9321954030
main93219-54030
9324954006
main93249-54006
9354053008
main93540-53008
9413060440
main94130-60440
18 parts on this diagram · 4 diagrams in section
