AIR BAG

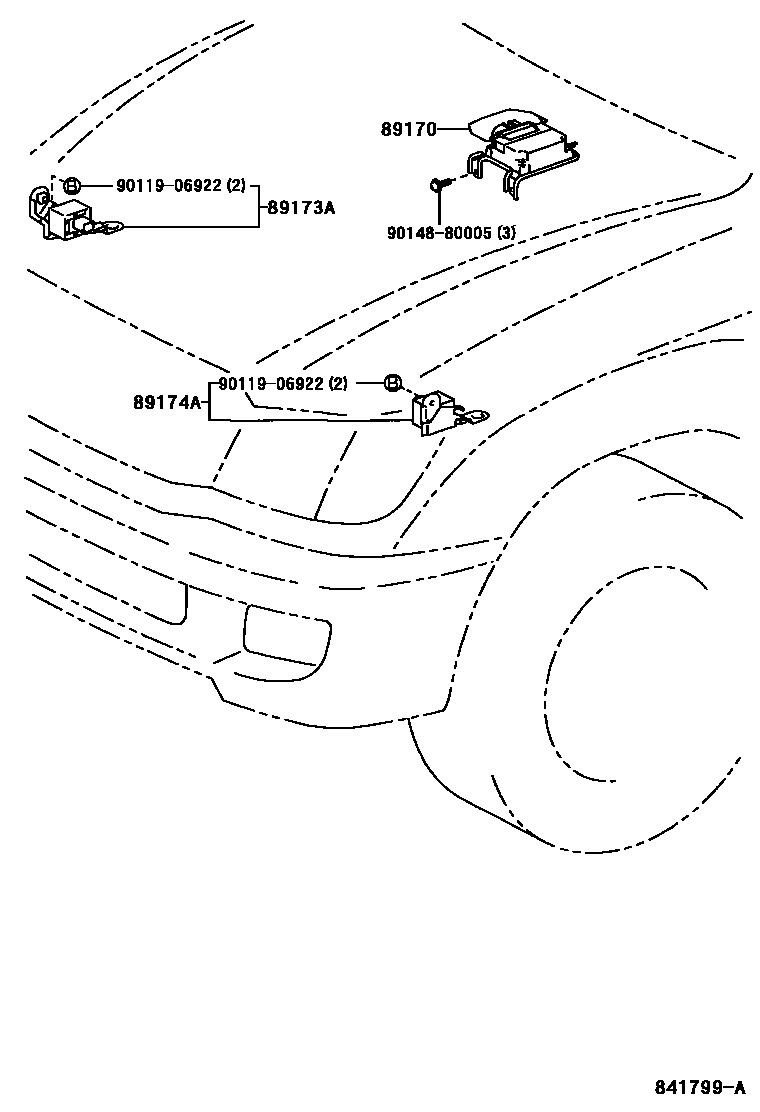

Parts diagram
89170SENSOR ASSY, AIRBAG
main89170-60050i199801-199907
sub89170-60051
main89170-60051i199907-200208
main89170-60150i200208-200505
sub89170-60151
main89170-60170i200601-200605
TAIWAN SPEC
sub89170-60171
main89170-60171i200605
TAIWAN SPEC
sub89170-60172
main89170-60260i200505-200601
sub89170-60261
main89170-60280i200601-200605
sub89170-60281
main89170-60281i200605
sub89170-60282
89173ASENSOR, AIRBAG, FRONT RH
main89173-69045i199801-200208
main89173-69105i200208-200505
89174ASENSOR, AIRBAG, FRONT LH
main89174-69035i199801-200208
main89174-69105i200208-200505
9011906922
main90119-06922
9014880005
main90148-80005

5 parts on this diagram · 2 diagrams in section
