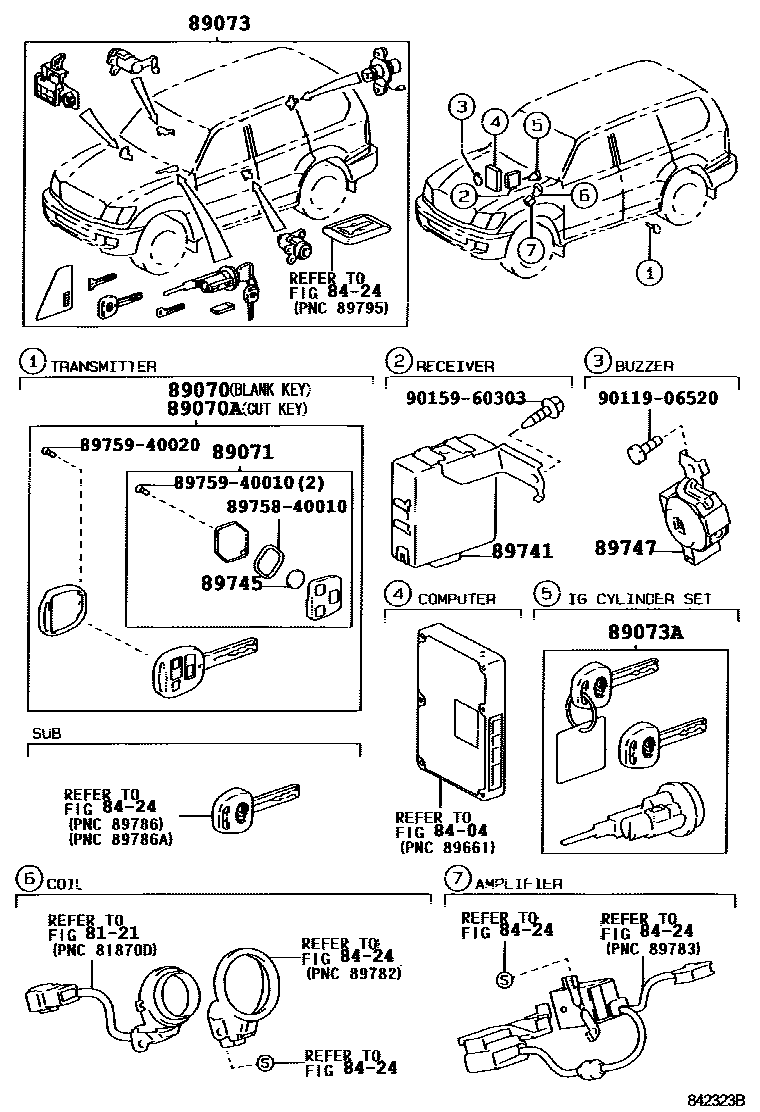

WIRELESS DOOR LOCK

0001 1 0002 1

8121

8404

8424

89070TRANSMITTER ASSY, DOOR CONTROL

main89070-48811iUZJ100¥17,500200505

main89070-48830iUZJ100200505-200512

TAIWAN SPEC

sub89070-60B50

main89070-60080iUZJ100¥16,300199801-200008

main89070-60081iUZJ100¥16,300200008-200208

main89070-60800iUZJ100200208-200502

sub89070-60801¥19,400

main89070-60801iUZJ100¥19,400200503-200505

main89070-60820iUZJ100200208-200505

TAIWAN SPEC

main89070-60B50iUZJ100200512

TAIWAN SPEC

89070ATRANSMITTER, DOOR CONTROL (CUT KEY)

main89070-4D131iUZJ100¥33,400200505

main89070-4D150iUZJ100200505-200512

TAIWAN SPEC

sub89070-60B70

main89070-60140iUZJ100¥33,500199801-200008

main89070-60141iUZJ100¥33,500200008-200208

main89070-60870iUZJ100200208-200502

sub89070-60871¥34,900

main89070-60871iUZJ100¥34,900200503-200505

main89070-60890iUZJ100200208-200505

TAIWAN SPEC

main89070-60B70iUZJ100200512

TAIWAN SPEC

89071MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-48160iUZJ100¥17,900200505

main89071-60010iUZJ100¥18,000199801-200208

main89071-60150iUZJ100¥17,900200208-200505

89073CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)

main69005-6C180iUZJ100200503-200505

main69005-6C460iUZJ100¥71,200200502-200505

TAIWAN SPEC

sub69005-6C461

main69005-6C470iUZJ100¥72,500200208-200502

main69005-6C470iUZJ100¥72,500200505-200512

TAIWAN SPEC

main89073-60070iUZJ100¥89,200199801-200008

main89073-60071iUZJ100¥89,400200008-200208

89073AIGN CYLINDER SET LOCK W/TRANSMITTER HOUSING (CUT KEY)

main69057-60530iUZJ100¥15,500200505-200512

TAIWAN SPEC

sub69057-60600¥15,500

main69057-60530iUZJ100¥15,500200208-200502

sub69057-60600¥15,500

main69057-60600iUZJ100¥15,500200502-200505

main89073-60010iUZJ100¥34,800199801-200008

main89073-60011iUZJ100¥34,800200008-200208

89741RECEIVER, DOOR CONTROL

main89741-60060iUZJ100¥53,700199801-199907

main89741-60061iUZJ100¥53,700199907-200208

main89741-60370iUZJ100¥34,800200208-200505

89745BATTERY, TRANSMITTER

main89745-40010iUZJ100¥440199801-200505

main89745-48030iUZJ100¥440200505

sub89745-71010¥440

89747BUZZER, WIRELESS DOOR LOCK

main89747-60010iUZJ100¥6,300199801-200505

8975840010PACKING, DOOR CONTROL TRANSMITTER

main89758-40010¥220

8975940010SCREW, DOOR CONTROL TRANSMITTER

main89759-40010¥120

8975940020SCREW, DOOR CONTROL TRANSMITTER

main89759-40020¥120

9011906520

main90119-06520¥120

9015960303

main90159-60303¥70

16 parts on this diagram · 2 diagrams in section
