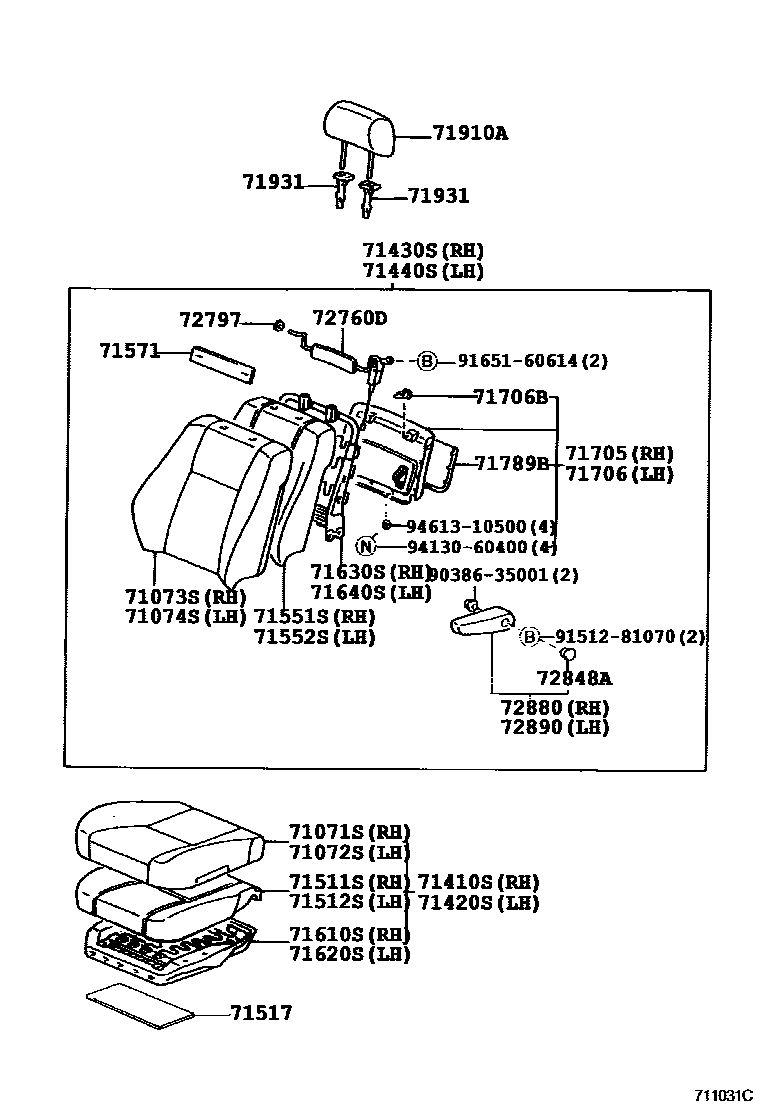

SEAT & SEAT TRACK

0001 1FRONT SEAT 0002 1FRONT SEAT 0003 1FRONT SEAT 0004 1FRONT SEAT (ADJUSTER) 0005 1REAR NO.1 SEAT (TYPE B) 0006 1REAR NO.1 SEAT (TYPE B) 0007 1REAR NO.1 SEAT (TYPE A) 0008 1REAR NO.1 SEAT (TYPE A) 0009 1REAR NO.1 SEAT (ADJUSTER) (TY0010 1REAR NO.1 SEAT (ADJUSTER) (TY0011 1REAR NO.1 SEAT (HINGE & STRIK0012 1REAR NO.2 SEAT 0013 1REAR NO.2 SEAT 0014 1REAR NO.2 SEAT (FITTING PARTS0015 1REAR NO.2 SEAT (STRIKER)

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-60810-A0iUZJ100199801-200208

IVORY,TRIM4#

sub71071-60810

sub71071-60812

main71071-60810-A1iUZJ100200208-200308

IVORY,TRIM0#

sub71071-60810

sub71071-60812

main71071-60810-B0iUZJ100199801-200208

GRAY,TRIM1#

sub71071-60810

sub71071-60812

main71071-60810-B1iUZJ100200208-200308

STONE,TRIM1#

sub71071-60810

sub71071-60812

main71071-60811-A2iUZJ100200308-200507

IVORY,TRIM0#

sub71071-60812

main71071-60811-B2iUZJ100200308-200507

DARK GRAY,TRIM1#

sub71071-60812

main71071-60812-A2iUZJ100200508-200708

IVORY,TRIM0#

main71071-60812-B2iUZJ100200508-200708

STONE,TRIM1#

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-60730-A0iUZJ100199801-200208

IVORY,TRIM4#

sub71072-60730

sub71072-60732

main71072-60730-A1iUZJ100200208-200308

IVORY,TRIM0#

sub71072-60730

sub71072-60732

main71072-60730-B0iUZJ100199801-200208

GRAY,TRIM1#

sub71072-60730

sub71072-60732

main71072-60730-B1iUZJ100200208-200308

STONE,TRIM1#

sub71072-60730

sub71072-60732

main71072-60731-A2iUZJ100200308-200507

IVORY,TRIM0#

sub71072-60732

main71072-60731-B2iUZJ100200308-200507

DARK GRAY,TRIM1#

sub71072-60732

main71072-60732-A2iUZJ100200508-200708

IVORY,TRIM0#

main71072-60732-B2iUZJ100200508-200708

STONE,TRIM1#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-60890-A0iUZJ100199801-200208

IVORY,TRIM4#

main71073-60890-B0iUZJ100199801-200208

GRAY,TRIM1#

main71073-6A380-A0iUZJ100200208-200308

IVORY,TRIM0#

main71073-6A380-B0iUZJ100200208-200308

STONE,TRIM1#

main71073-6A381-A1iUZJ100200308-200507

IVORY,TRIM0#

sub71073-6A382

main71073-6A381-B1iUZJ100200308-200507

DARK GRAY,TRIM1#

sub71073-6A382

main71073-6A382-A1iUZJ100200508-200708

IVORY,TRIM0#

main71073-6A382-B1iUZJ100200508-200708

STONE,TRIM1#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-60730-A0iUZJ100199801-200208

IVORY,TRIM4#

main71074-60730-B0iUZJ100199801-200208

GRAY,TRIM1#

main71074-60890-A0iUZJ100200208-200308

IVORY,TRIM0#

main71074-60890-B0iUZJ100200208-200308

STONE,TRIM1#

main71074-60891-A1iUZJ100200308-200507

IVORY,TRIM0#

sub71074-60892

main71074-60891-B1iUZJ100200308-200507

DARK GRAY,TRIM1#

sub71074-60892

main71074-60892-A1iUZJ100200508-200708

IVORY,TRIM0#

main71074-60892-B1iUZJ100200508-200708

STONE,TRIM1#

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-6A520-B0iUZJ100199801-200208

SHADOW GRAY,TRIM1#

main71410-6A520-E0iUZJ100199801-200208

OAK,TRIM4#

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71420-6A370-B0iUZJ100199801-200208

SHADOW GRAY,TRIM1#

main71420-6A370-E0iUZJ100199801-200208

OAK,TRIM4#

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71040-60120-B0iUZJ100199801-200208

SHADOW GRAY,TRIM1#

main71040-60120-E0iUZJ100199801-200208

OAK,TRIM4#

main71430-6A400-A0iUZJ100200208-200308

IVORY,TRIM0#

main71430-6A400-B0iUZJ100200208-200308

STONE,TRIM1#

main71430-6A520-A0iUZJ100200308-200507

IVORY,TRIM0#

sub71430-6A521

main71430-6A520-B0iUZJ100200308-200507

STONE,TRIM1#

sub71430-6A521

main71430-6A521-A0iUZJ100200508-200708

IVORY,TRIM0#

main71430-6A521-B0iUZJ100200508-200708

DARK GRAY,TRIM1#

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71070-60110-B0iUZJ100199801-200208

SHADOW GRAY,TRIM1#

main71070-60110-E0iUZJ100199801-200208

OAK,TRIM4#

main71440-6A210-A0iUZJ100200208-200308

IVORY,TRIM0#

sub71440-6A212

main71440-6A210-B0iUZJ100200208-200308

STONE,TRIM1#

sub71440-6A212

main71440-6A211-A1iUZJ100200308-200507

IVORY,TRIM0#

sub71440-6A212

main71440-6A211-B1iUZJ100200308-200507

STONE,TRIM1#

sub71440-6A212

main71440-6A212-A0iUZJ100200508-200708

IVORY,TRIM0#

main71440-6A212-B0iUZJ100200508-200708

DARK GRAY,TRIM1#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71501-60060iUZJ100199801-200601

sub71501-60C60

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71502-60100iUZJ100199801-200601

71517CLOTH, FRONT SEAT CUSHION UNDER

main71517-60170iUZJ100199801-199903

main71517-60200iUZJ100199903-200208

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-60220iUZJ100199801-200208

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71552-60160iUZJ100199801-200208

71571PAD, FRONT SEATBACK SILENCER, A

main71571-60020iUZJ100199801-200208

71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71610-60230iUZJ100199801-200601

main71610-60230iUZJ100200601

TAIWAN SPEC

main71610-60330iUZJ100200601

71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71620-60230iUZJ100199801-200601

71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71630-60160iUZJ100199801-200208

71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71640-60100iUZJ100199801-200208

71705BOARD SUB-ASSY, FRONT SEATBACK, RH

main71705-60200-A0iUZJ100199801-200208

IVORY,TRIM4#

sub71705-60240

main71705-60200-B0iUZJ100199801-200208

MD.GRAY,TRIM1#

sub71705-60240

main71705-60240-A0iUZJ100200208-200708

IVORY,TRIM0#

sub71705-60210

main71705-60240-B0iUZJ100200208-200708

STONE,TRIM1#

sub71705-60210

71706BOARD SUB-ASSY, FRONT SEATBACK, LH

main71705-60200-A0iUZJ100199801-200208

IVORY,TRIM4#

sub71705-60240

main71705-60200-B0iUZJ100199801-200208

MD.GRAY,TRIM1#

sub71705-60240

main71705-60240-A0iUZJ100200208-200708

IVORY,TRIM0#

sub71705-60210

main71705-60240-B0iUZJ100200208-200708

STONE,TRIM1#

sub71705-60210

71706BCLIP, FRONT SEATBACK BOARD

main71769-60020iUZJ100199801-200601

71789BPOCKET, FRONT SEATBACK BOARD

main71780-60030-A0iUZJ100199801-200208

IVORY,TRIM4#

sub71780-60030

sub71780-60040

main71780-60030-A1iUZJ100200208-200708

IVORY,TRIM0#

sub71780-60030

sub71780-60040

main71780-60030-B0iUZJ100199801-200208

MD.GRAY,TRIM1#

sub71780-60030

sub71780-60040

main71780-60030-B1iUZJ100200208-200708

STONE,TRIM1#

sub71780-60030

sub71780-60040

71910AHEADREST ASSY, FRONT SEAT

main71910-60450-A0iUZJ100199801-200208

IVORY,TRIM4#

sub71910-60450

sub71910-60452

main71910-60450-A1iUZJ100200208-200308

IVORY,TRIM0#

sub71910-60450

sub71910-60452

main71910-60450-B0iUZJ100199801-200208

GRAY,TRIM1#

sub71910-60450

sub71910-60452

main71910-60450-B1iUZJ100200208-200308

STONE,TRIM1#

sub71910-60450

sub71910-60452

main71910-60451-A2iUZJ100200308-200507

IVORY,TRIM0#

sub71910-60452

main71910-60451-B2iUZJ100200308-200507

STONE,TRIM1#

sub71910-60452

main71910-60452-A2iUZJ100200508-200708

IVORY,TRIM0#

main71910-60452-B2iUZJ100200508-200708

STONE,TRIM1#

71931SUPPORT, FRONT SEAT HEADREST

main71930-28040-A0iUZJ100199801-200103

W(LOCK),IVORY,TRIM4#

sub71930-60030

sub71930-28040

main71930-28040-B5iUZJ100199801-200103

W(LOCK),MD.GRAY,TRIM1#

sub71930-60030

sub71930-28040

main71930-60030-A1iUZJ100200208-200708

W(LOCK),IVORY,TRIM0#

sub71930-60030

main71930-60030-B0iUZJ100200103-200208

W(LOCK),MD.GRAY,TRIM1#,4#

sub71930-60030

main71930-60030-B1iUZJ100200208-200708

W(LOCK),STONE,TRIM1#

sub71930-60030

main71931-28050-A0iUZJ100199801-200103

W/O(LOCK),IVORY,TRIM4#

sub71931-28050

main71931-28050-B5iUZJ100199801-200103

W/O(LOCK),MD.GRAY,TRIM1#

sub71931-28050

main71931-60020-A1iUZJ100200208-200708

W/O(LOCK),IVORY,TRIM0#

sub71931-60020

main71931-60020-B0iUZJ100200103-200208

W/O(LOCK),MD.GRAY,TRIM4#

sub71931-60020

main71931-60020-B1iUZJ100200208-200708

W/O(LOCK),STONE,TRIM1#

sub71931-60020

72760DADJUSTER ASSY, LUMBAR SUPPORT, LH

main72750-60070iUZJ100199801-200505

72797SPACER, LUMBAR SUPPORT

main72797-50010iUZJ100199801-200505

72848ACAP, SEAT ARMREST, NO.1

main72848-60010-A0iUZJ100199801-200208

IVORY,TRIM4#

sub72848-60010

main72848-60010-A1iUZJ100200208-200708

IVORY,TRIM0#

sub72848-60010

main72848-60010-B0iUZJ100199801-200208

MD.GRAY,TRIM1#

sub72848-60010

main72848-60010-B1iUZJ100200208-200708

STONE,TRIM1#

sub72848-60010

72880ARMREST ASSY, SEAT, C RH

main72880-60030-A0iUZJ100199801-200208

IVORY,TRIM4#

main72880-60030-A1iUZJ100200208-200308

IVORY,TRIM0#

main72880-60030-B0iUZJ100199801-200208

GRAY,TRIM1#

main72880-60030-B1iUZJ100200208-200308

STONE,TRIM1#

main72880-60031-A1iUZJ100200308-200708

IVORY,TRIM0#

main72880-60031-B1iUZJ100200308-200708

STONE,TRIM1#

72890ARMREST ASSY, SEAT, C LH

main72890-60030-A0iUZJ100199801-200208

IVORY,TRIM4#

main72890-60030-A1iUZJ100200208-200308

IVORY,TRIM0#

main72890-60030-B0iUZJ100199801-200208

GRAY,TRIM1#

main72890-60030-B1iUZJ100200208-200308

STONE,TRIM1#

main72890-60031-A1iUZJ100200308-200708

IVORY,TRIM0#

main72890-60031-B1iUZJ100200308-200708

STONE,TRIM1#

9038635001

main90386-35001

9151281070

main91512-81070

9165160614

main91651-60614

9413060400

main94130-60400

9461310500

main94613-10500

34 parts on this diagram · 15 diagrams in section
