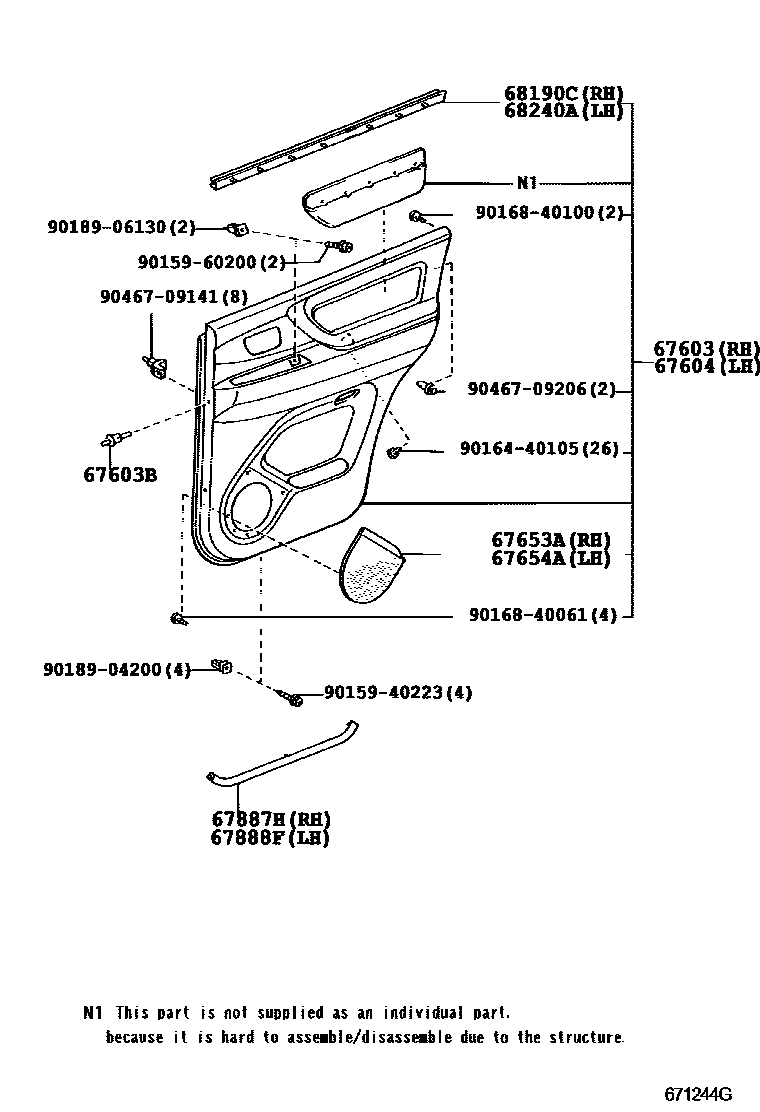

REAR DOOR PANEL & GLASS

0001 1 0002 1

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-60560-B0iUZJ100199801-200208

SHADOW GRAY,TRIM1#

main67630-60560-E0iUZJ100199801-200208

OAK,TRIM4#

main67630-60561-A1iUZJ100200208-200308

IVORY,TRIM0#

sub67630-60561¥47,100

main67630-60561-B2iUZJ100200208-200308

STONE,TRIM1#

sub67630-60561¥47,100

main67630-60562-A0iUZJ100200308-200610

IVORY,TRIM0#

sub67630-60563¥75,500

main67630-60562-B1iUZJ100200308-200610

STONE,TRIM1#

sub67630-60563¥75,500

main67630-60563-A0iUZJ100200611-200708

IVORY,TRIM0#

main67630-60563-B1iUZJ100200611-200708

STONE,TRIM1#

main67630-60A30-C0iUZJ100200610

SPECIAL EDITION(USA),STONE&BLACK,TRIM1#

67603BCLIP(FOR REAR DOOR TRIM BOARD)

main90467-07066-A0iUZJ100200208-200708

IVORY,TRIM0#

sub90467-07066¥120

main90467-07066-A1iUZJ100199801-200208

IVORY,TRIM4#

sub90467-07066¥120

main90467-07066-P2iUZJ100199801-200208

MD.GRAY,TRIM1#

sub90467-07066¥120

main90467-07066-P4iUZJ100200208-200708

STONE,TRIM1#

sub90467-07066¥120

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-60560-B0iUZJ100199801-200208

SHADOW GRAY,TRIM1#

main67640-60560-E0iUZJ100199801-200208

OAK,TRIM4#

main67640-60561-A1iUZJ100200208-200308

IVORY,TRIM0#

sub67640-60561¥47,100

main67640-60561-B2iUZJ100200208-200308

STONE,TRIM1#

sub67640-60561¥47,100

main67640-60562-A0iUZJ100200308-200610

IVORY,TRIM0#

sub67640-60563¥75,500

main67640-60562-B1iUZJ100200308-200610

STONE,TRIM1#

sub67640-60563¥75,500

main67640-60563-A0iUZJ100200611-200708

IVORY,TRIM0#

main67640-60563-B1iUZJ100200611-200708

STONE,TRIM1#

main67640-60A30-C0iUZJ100200610

SPECIAL EDITION(USA),STONE&BLACK,TRIM1#

67653AGRILLE, SPEAKER REAR DOOR, RH

main67071-60020-A1iUZJ100200206-200208

IVORY,TRIM4#

sub67071-60020¥3,890

main67071-60020-A2iUZJ100200208-200708

IVORY,TRIM0#

sub67071-60020¥3,890

main67071-60020-B0iUZJ100199801-200206

SHADOW GRAY,TRIM1#

sub67071-60020¥3,890

main67071-60020-B2iUZJ100200206-200208

MD.GRAY,TRIM1#

sub67071-60020¥3,890

main67071-60020-B3iUZJ100200208-200708

STONE,TRIM1#

sub67071-60020¥3,890

main67071-60020-E0iUZJ100199801-200206

OAK,TRIM4#

sub67071-60020¥3,890

67654AGRILLE, SPEAKER REAR DOOR, LH

main67072-60020-A1iUZJ100200206-200208

IVORY,TRIM4#

sub67072-60020¥3,890

main67072-60020-A2iUZJ100200208-200708

IVORY,TRIM0#

sub67072-60020¥3,890

main67072-60020-B0iUZJ100199801-200206

SHADOW GRAY,TRIM1#

sub67072-60020¥3,890

main67072-60020-B2iUZJ100200206-200208

MD.GRAY,TRIM1#

sub67072-60020¥3,890

main67072-60020-B3iUZJ100200208-200708

STONE,TRIM1#

sub67072-60020¥3,890

main67072-60020-E0iUZJ100199801-200206

OAK,TRIM4#

sub67072-60020¥3,890

67887HWEATHERSTRIP, REAR DOOR, NO.2 RH

main67887-60010iUZJ100¥2,070199801-200708

67888FWEATHERSTRIP, REAR DOOR, NO.2 LH

main67888-60010iUZJ100¥2,070199801-200708

68190CWEATHERSTRIP ASSY, REAR DOOR GLASS, INNER RH

main68190-60080iUZJ100¥3,090199801-200708

68240AWEATHERSTRIP ASSY, REAR DOOR GLASS, INNER LH

main68240-60060iUZJ100¥3,090199801-200708

9015940223

main90159-40223¥70

9015960200

main90159-60200¥100

9016440105

main90164-40105¥70

9016840061

main90168-40061¥70

9016840100

main90168-40100¥120

9018904200

main90189-04200¥80

9018906130

main90189-06130¥110

9046709141

main90467-09141¥260

9046709206

main90467-09206¥80

18 parts on this diagram · 2 diagrams in section
