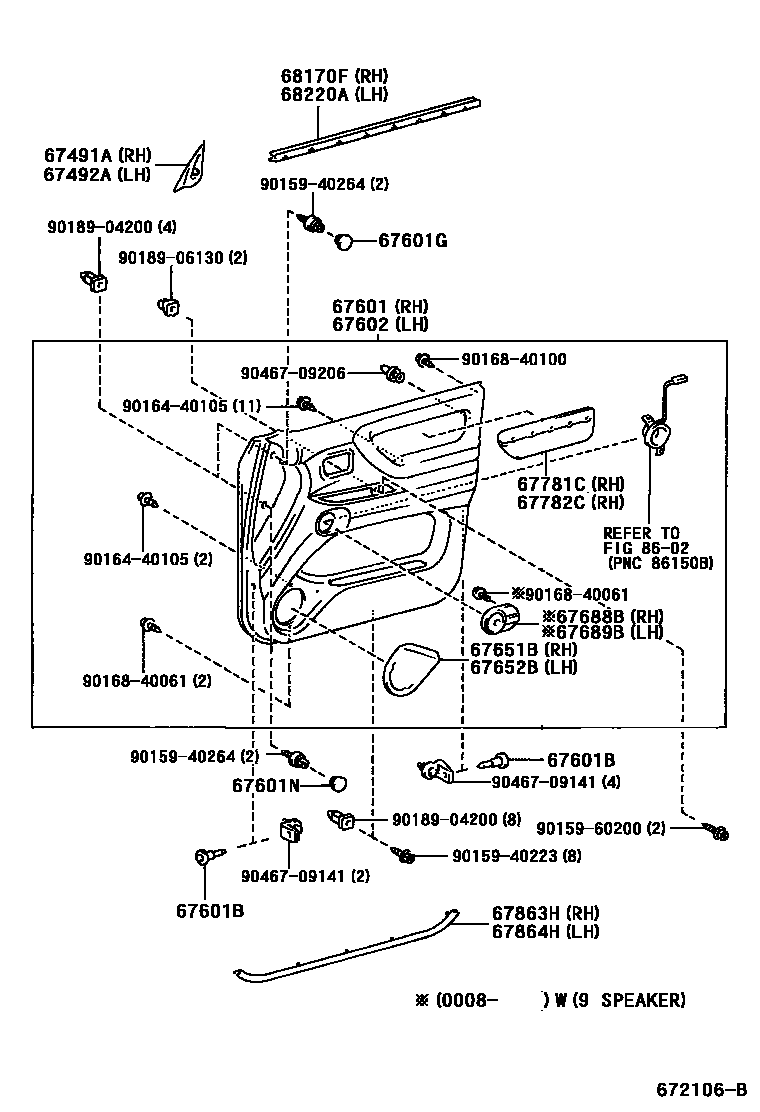

FRONT DOOR PANEL & GLASS

0001 1 0002 1

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-60070iUZJ100199801-200208

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-60070iUZJ100199801-200208

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-60C70-C0iUZJ100200610

SPECIAL EDITION(USA),BLACK,TRIM1#

main67650-60070-B0iUZJ100199801-200208

SHADOW GRAY,TRIM1#

main67650-60070-E0iUZJ100199801-200208

OAK,TRIM4#

main67650-60071-A1iUZJ100200208-200308

IVORY,TRIM0#

main67650-60071-B2iUZJ100200208-200308

STONE,TRIM1#

main67650-60072-A0iUZJ100200308-200505

IVORY,TRIM0#

main67650-60072-B1iUZJ100200308-200505

STONE,TRIM1#

main67650-60300-B1iUZJ100200008-200206

W(9 SPEAKER),SHADOW GRAY,TRIM1#

main67650-60300-B2iUZJ100200206-200208

W(9 SPEAKER),SHADOW GRAY,TRIM1#

main67650-60300-E1iUZJ100200008-200206

W(9 SPEAKER),0AK,TRIM4#

main67650-60300-E2iUZJ100200206-200208

W(9 SPEAKER),SHADOW GRAY,TRIM4#

main67650-60301-A1iUZJ100200208-200308

W(9 SPEAKER),IVORY,TRIM0#

main67650-60301-B1iUZJ100200208-200308

W(9 SPEAKER),STONE,TRIM1#

main67650-60302-A0iUZJ100200308-200505

W(9 SPEAKER),IVORY,TRIM0#

main67650-60302-B0iUZJ100200308-200505

W(9 SPEAKER),STONE,TRIM1#

main67650-60303-A0iUZJ100200611-200708

IVORY,TRIM0#

main67650-60303-B0iUZJ100200611-200708

STONE,TRIM1#

67601BCLIP(FOR FRONT DOOR TRIM BOARD)

main90467-07066-A0×6iUZJ100200505-200708

IVORY,TRIM0#

main90467-07066-A1×6iUZJ100199801-200208

IVORY,TRIM4#

main90467-07066-P2×6iUZJ100199801-200208

MD.GRAY,TRIM1#

main90467-07066-P4×6iUZJ100200208-200505

STONE,TRIM1#

67601GPLUG, HOLE(FOR FRONT DOOR TRIM BOARD)

main90950-01800-A1×2iUZJ100200505-200708

IVORY,TRIM00

main90950-01800-B0×2iUZJ100199801-200208

SHADOW GRAY,TRIM1#

main90950-01800-B9×2iUZJ100200208-200505

STONE,TRIM10

main90950-01800-E1×2iUZJ100199801-200208

OAK,TRIM4#

main90950-01800-E5×2iUZJ100200505-200708

SANDAL WOOD,TRIM00

main90950-01800-P0×2iUZJ100200208-200505

DK.GRAY,TRIM10

67601NPLUG, HOLE(FOR FRONT DOOR TRIM BOARD)

main90950-01800-A0×2iUZJ100199801-200208

IVORY,TRIM4#

main90950-01800-A1×2iUZJ100200505-200708

IVORY,TRIM00

main90950-01800-B6×2iUZJ100199801-200208

MD.GRAY,TRIM1#

main90950-01800-B9×2iUZJ100200208-200505

STONE,TRIM10

main90950-01800-E5×2iUZJ100200208-200505

SANDAL WOOD,TRIM00

main90950-01800-P0×2iUZJ100200208-200505

DK.GRAY,TRIM10

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-60C50-C0iUZJ100200610

SPECIAL EDITION(USA),BLACK,TRIM1#

main67660-60080-B0iUZJ100199801-200208

SHADOW GRAY,TRIM1#

main67660-60080-E0iUZJ100199801-200208

OAK,TRIM4#

main67660-60081-A1iUZJ100200208-200308

IVORY,TRIM0#

main67660-60081-B2iUZJ100200208-200308

STONE,TRIM1#

main67660-60082-A0iUZJ100200308-200505

IVORY,TRIM0#

main67660-60082-B1iUZJ100200308-200505

STONE,TRIM1#

main67660-60320-B1iUZJ100200008-200206

W(9 SPEAKER),SHADOW GRAY,TRIM1#

main67660-60320-B2iUZJ100200206-200208

W(9 SPEAKER),SHADOW GRAY,TRIM1#

main67660-60320-E1iUZJ100200008-200206

W(9 SPEAKER),OAK,TRIM4#

main67660-60320-E2iUZJ100200206-200208

W(9 SPEAKER),OAK,TRIM4#

main67660-60321-A1iUZJ100200208-200308

W(9 SPEAKER),IVORY,TRIM0#

main67660-60321-B1iUZJ100200208-200308

W(9 SPEAKER),STONE,TRIM1#

main67660-60322-A0iUZJ100200308-200505

W(9 SPEAKER),IVORY,TRIM0#

main67660-60322-B0iUZJ100200505-200610

STONE,TRIM1#

main67660-60323-A0iUZJ100200611-200708

IVORY,TRIM0#

main67660-60323-B0iUZJ100200611-200708

STONE,TRIM1#

67651BGRILLE, SPEAKER DOOR, RH

main67609-60020-A1iUZJ100200206-200208

IVORY,TRIM4#

main67609-60020-A2iUZJ100200505-200708

IVORY,TRIM0#

main67609-60020-B0iUZJ100199801-200206

SHADOW GRAY,TRIM1#

main67609-60020-B2iUZJ100200206-200208

MD.GRAY,TRIM1#

main67609-60020-B3iUZJ100200505-200708

STONE,TRIM1#

main67609-60020-E0iUZJ100199801-200206

OAK,TRIM4#

67652BGRILLE, SPEAKER DOOR, LH

main67709-60020-A1iUZJ100200206-200208

IVORY,TRIM4#

sub67709-60010

main67709-60020-A2iUZJ100200505-200708

IVORY,TRIM0#

sub67709-60010

main67709-60020-B0iUZJ100199801-200206

SHADOW GRAY,TRIM1#

sub67709-60010

main67709-60020-B2iUZJ100200206-200208

MD.GRAY,TRIM1#

sub67709-60010

main67709-60020-B3iUZJ100200208-200505

STONE,TRIM1#

sub67709-60010

main67709-60020-E0iUZJ100199801-200206

OAK,TRIM4#

sub67709-60010

67688BGRILLE, SPEAKER DOOR, NO.2 RH

main67688-60010-A0iUZJ100200008-200208

IVORY,TRIM4#

main67688-60010-A1iUZJ100200505-200610

IVORY,TRIM0#

main67688-60010-B0iUZJ100200008-200208

MD.GRAY,TRIM1#

main67688-60010-B1iUZJ100200505-200610

STONE,TRIM1#

67689BGRILLE, SPEAKER DOOR, NO.2 LH

main67689-60010-A0iUZJ100200008-200208

IVORY,TRIM4#

main67689-60010-A1iUZJ100200208-200505

IVORY,TRIM0#

main67689-60010-B0iUZJ100200008-200208

MD.GRAY,TRIM1#

main67689-60010-B1iUZJ100200505-200610

STONE,TRIM1#

67781CORNAMENT SUB-ASSY, FRONT DOOR TRIM, RH

main67705-60060-A0iUZJ100199801-200003

IVORY,TRIM4#

main67705-60060-B0iUZJ100199801-200003

GRAY,TRIM1#

67782CORNAMENT SUB-ASSY, FRONT DOOR TRIM, LH

main67706-60060-A0iUZJ100199801-200003

IVORY,TRIM4#

main67706-60060-B0iUZJ100199801-200003

GRAY,TRIM1#

67863HWEATHERSTRIP, FRONT DOOR, NO.2 RH

main67863-60020iUZJ100200505-200708

67864HWEATHERSTRIP, FRONT DOOR, NO.2 LH

main67864-60020iUZJ100199801-200208

68170FWEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER RH

main68170-60110iUZJ100199801-200104

main68170-60111iUZJ100200104-200208

68220AWEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER LH

main68220-60060iUZJ100199801-200104

main68220-60061iUZJ100200505-200708

8602

9015940223

main90159-40223

9015940264

main90159-40264

9015960200

main90159-60200

9016440105

main90164-40105

9016840061

main90168-40061

9016840100

main90168-40100

9018904200

main90189-04200

9018906130

main90189-06130

9046709141

main90467-09141

9046709206

main90467-09206

28 parts on this diagram · 2 diagrams in section
