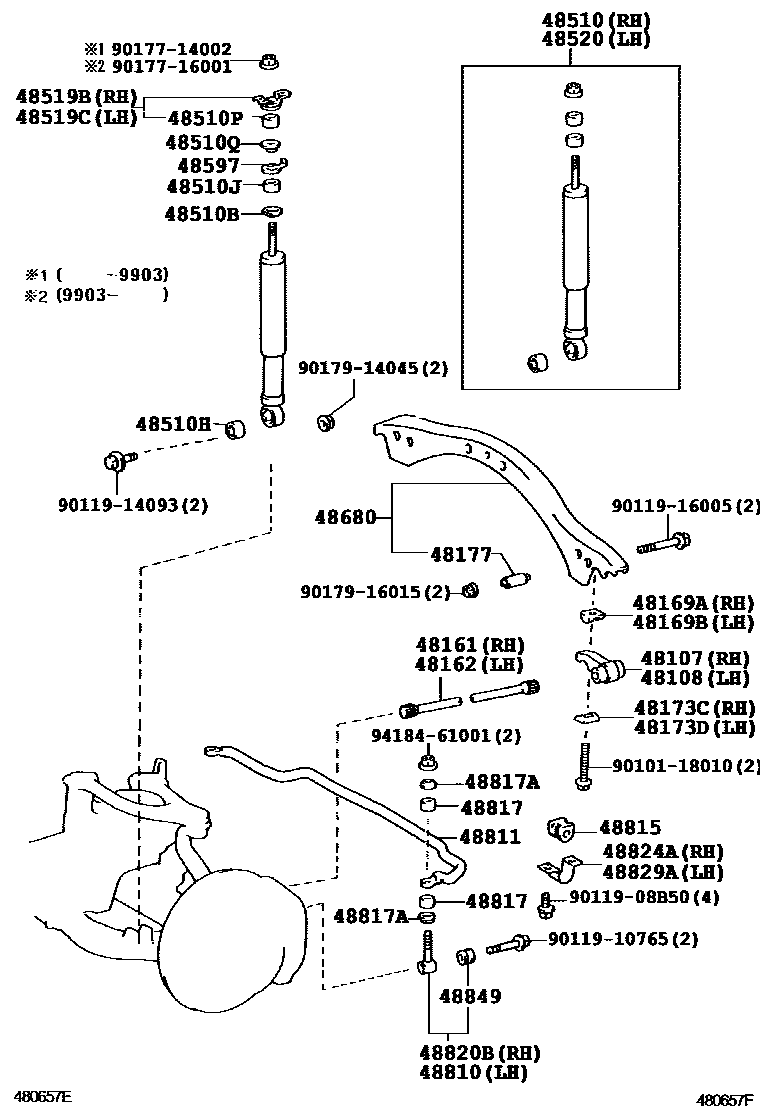

FRONT SPRING & SHOCK ABSORBER
48107ARM SUB-ASSY, ANCHOR, RH
48108ARM SUB-ASSY, ANCHOR, LH
48161SPRING, TORSION BAR, RH
48162SPRING, TORSION BAR, LH
48169ASWIVEL, ANCHOR ARM, RH
48169BSWIVEL, ANCHOR ARM, LH
48173CSEAT, ANCHOR ARM ADJUSTER, RH
48173DSEAT, ANCHOR ARM ADJUSTER, LH
48177BUSH, ANCHOR ARM BRACKET
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48510-60080
MARK 48510-60081
48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
48510HBUSH(FOR FRONT SHOCK ABSORBER)
48510JCUSHION, FRONT SHOCK ABSORBER, NO.1
48510PCUSHION, FRONT SHOCK ABSORBER, NO.2
48510QRETAINER, CUSHION, NO.3(FOR FRONT SHOCK ABSORBER)
48519BBRACKET, ACTUATOR SUPPORT, FRONT RH
48519CBRACKET, ACTUATOR SUPPORT, FRONT LH
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48510-60080
MARK 48510-60081
48597RETAINER, SHOCK ABSORBER CUSHION
48680SUPPORT ASSY, FRONT SUSPENSION
48810LINK ASSY, FRONT STABILIZER, LH
48811BAR, STABILIZER, FRONT
48815BUSH, FRONT STABILIZER BAR, NO.1
48817CUSHION, FRONT STABILIZER
48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
48820BLINK ASSY, FRONT STABILIZER, RH
48824ABRACKET, FRONT STABILIZER, NO.1 RH
48829ABRACKET, FRONT STABILIZER, NO.1 LH
48849BUSH, STABILIZER LINK
9010118010
main90101-18010
9011908B50
main90119-08B50
9011910765
main90119-10765
9011914093
main90119-14093
9011916005
main90119-16005
9017714002
main90177-14002
9017716001
main90177-16001
9017914045
main90179-14045
9017916015
main90179-16015
9418461001
main94184-61001
39 parts on this diagram · 1 diagram in section
