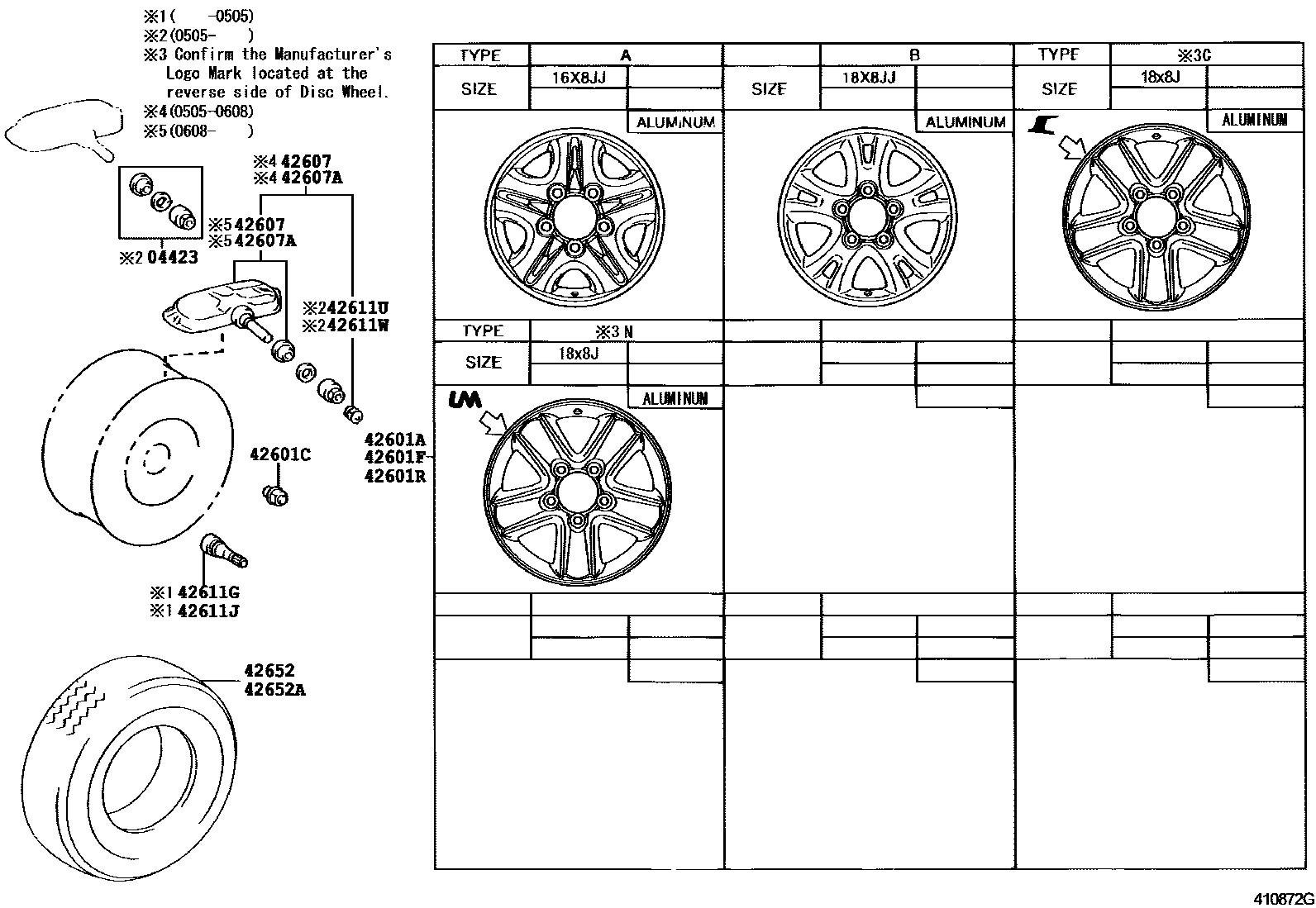

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE

main04423-33030iUZJ100200608

sub04423-33060

main04423-35020iUZJ100200505-200604

main04423-42010iUZJ100200604-200608

42601AWHEEL, DISC (FOR SPARE)

main42611-60190iUZJ100199801-200005

16X8JJ, #,TYPE A:REFER TO ILLUSTRATION

main42611-60270iUZJ100200005-200208

16X8JJ,TYPE A:REFER TO ILLUSTRATION

main42611-60280iUZJ100200008-200208

16X8JJ,TYPE A:REFER TO ILLUSTRATION,W(CHROME PLATED WHEEL)

main42611-60330iUZJ100200505

18X8J,TYPE N:REFER ILLUST.

sub4261A-60150

main42611-60340iUZJ100200505

18X8J,TYPE C:REFER ILLUST.

sub42611-60330

main42611-60520iUZJ100200208-200505

18X8JJ, #,TYPE B:REFER ILLUST.

main42611-60610iUZJ100200610

18X8J,SPECIAL EDITION(USA),TYPE N:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01103iUZJ100199801-200505

42601FWHEEL, DISC (FOR FRONT)

main42611-60190iUZJ100199801-200005

16X8JJ, #,TYPE A:REFER TO ILLUSTRATION

main42611-60270iUZJ100200005-200208

16X8JJ,TYPE A:REFER TO ILLUSTRATION

main42611-60280iUZJ100200008-200208

16X8JJ,TYPE A:REFER TO ILLUSTRATION,W(CHROME PLATED WHEEL)

main42611-60330iUZJ100200505

18X8J,TYPE N:REFER ILLUST.

sub4261A-60150

main42611-60340iUZJ100200505

18X8J,TYPE C:REFER ILLUST.

sub42611-60330

main42611-60520iUZJ100200208-200505

18X8JJ, #,TYPE B:REFER TO ILLUSTRATION

main42611-60610iUZJ100200610

18X8J,SPECIAL EDITION(USA),TYPE N:REFER ILLUST.

42601RWHEEL, DISC (FOR REAR)

main42611-60190iUZJ100199801-200005

16X8JJ, #,TYPE A:REFER TO ILLUSTRATION

main42611-60270iUZJ100200005-200208

16X8JJ,TYPE A:REFER TO ILLUSTRATION

main42611-60280iUZJ100200008-200208

16X8JJ,TYPE A:REFER TO ILLUSTRATION,W(CHROME PLATED WHEEL)

main42611-60330iUZJ100200505

18X8J,TYPE N:REFER ILLUST.

sub4261A-60150

main42611-60340iUZJ100200505

18X8J,TYPE C:REFER ILLUST.

sub42611-60330

main42611-60520iUZJ100200208-200505

18X8JJ, #,TYPE B:REFER TO ILLUSTRATION

main42611-60610iUZJ100200610

18X8J,SPECIAL EDITION(USA),TYPE N:REFER ILLUST.

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-33021iUZJ100200608

sub42607-33022

main42607-34020iUZJ100200505-200608

sub42607-33011

42607AVALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE)

main42607-33021iUZJ100200608

sub42607-33022

main42607-34020iUZJ100200505-200608

sub42607-33011

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009iUZJ100199801-200505

main90942-05028iUZJ100200008-200208

W(CHROME PLATED WHEEL)

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iUZJ100199801-200505

main90942-05028iUZJ100200008-200208

W(CHROME PLATED WHEEL)

42611UCAP, TIRE VALVE

main90942-05037iUZJ100200608

main90942-05038iUZJ100200505-200608

sub90942-05039

42611WCAP, TIRE VALVE (FOR SPARE)

main90942-05037iUZJ100200608

main90942-05038iUZJ100200505-200608

sub90942-05039

42652TIRE

main42652-60300iUZJ100199801-200208

275/70R16,*D/L

main42652-60790iUZJ100200208-200505

275/60R18,*D/L

main42652-60800iUZJ100200208-200505

275/60R18,*B/S

main42652-60860iUZJ100200208-200505

275/60R18,MICHELIN

42652ATIRE (FOR SPARE)

main42652-60300iUZJ100199801-200208

275/70R16,*D/L

main42652-60790iUZJ100200208-200505

275/60R18,*D/L

main42652-60800iUZJ100200208-200505

275/60R18,*B/S

main42652-60860iUZJ100200208-200505

275/60R18,MICHELIN

13 parts on this diagram · 3 diagrams in section
