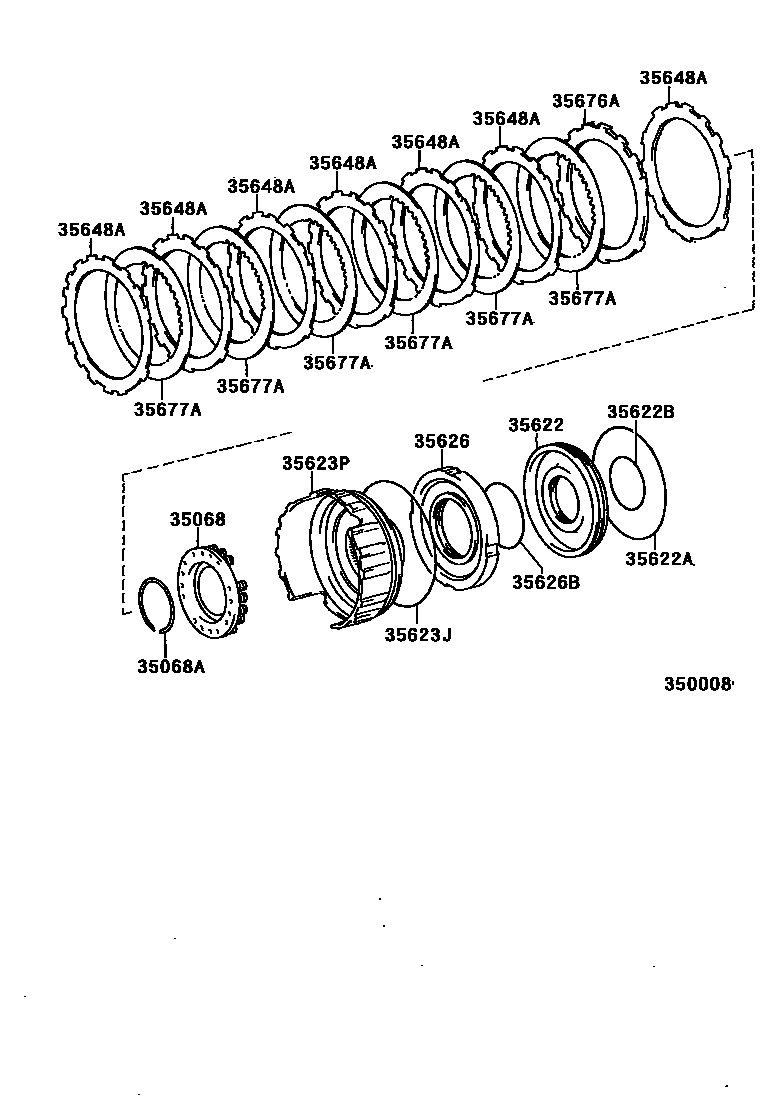

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

0001 1A343F 0002 1A750F

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-50010iUZJ100199801-200208

main35068-60010iUZJ100200208-200505

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-52262iUZJ100199801-200208

main90520-61001iUZJ100200208-200505

35622PISTON, BRAKE, NO.2

main35622-30010iUZJ100199801-200208

35622ARING (FOR BRAKE PISTON OUTER)

main90301-99084iUZJ100199801-200208

35622BRING (FOR BRAKE PISTON INNER)

main90301-56007iUZJ100199801-200208

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-99087iUZJ100200208-200505

main90301-99192iUZJ100199801-200208

35623PPISTON, 1ST & REVERSE BRAKE, NO.2

main35623-14011iUZJ100199801-200208

35626SLEEVE, BRAKE REACTION

main35626-30020iUZJ100199801-200208

main35626-60010iUZJ100200208-200505

35626BRING (FOR BRAKE REACTION SLEEVE INNER)

main90301-67005iUZJ100199801-200208

main90301-79003iUZJ100200208-200505

35648APLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35648-30031iUZJ100199801-200208

35676AFLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)

main35676-30100iUZJ100199801-200208

T=5.2

main35676-30110iUZJ100199801-200208

T=5.4

main35676-50010iUZJ100199801-200208

T=5.0

main35676-50020iUZJ100199801-200208

T=4.8

main35676-50030iUZJ100199801-200208

T=4.6

main35676-50040iUZJ100199801-200208

T=4.4

main35676-50050iUZJ100199801-200208

T=4.2

main35676-50060iUZJ100199801-200208

T=4.0

35677ADISC, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35677-30130iUZJ100199801-199905

main35677-30180iUZJ100199905-200208

12 parts on this diagram · 2 diagrams in section
