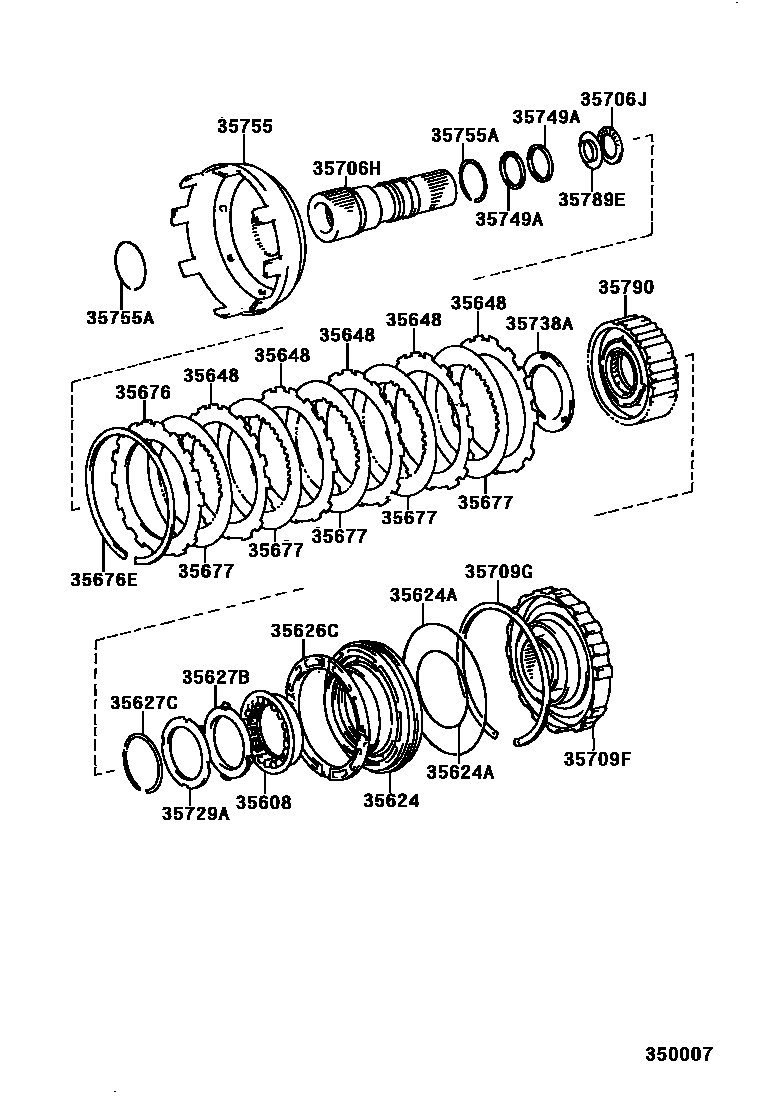

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)
35608SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN
35624ARING, O (FOR 2ND BRAKE PISTON)
INNER
OUTER
INNER
OUTER
35626CSLEEVE, 2ND BRAKE PISTON
35627BSEAT, 2ND BRAKE PISTON RETURN SPRING
35627CRING, SHAFT SNAP(FOR 2ND BRAKE PISTON RETURN SPRING SEAT)
35648PLATE, CLUTCH (FOR 2ND BRAKE)
T=2.5
T=1.8
35676FLANGE, BRAKE (FOR 2ND BRAKE)
T=3.0
35676ERING, HOLE SNAP (FOR 2ND BRAKE)
35677DISC, CLUTCH (FOR 2ND BRAKE)
35706HGEAR SUB-ASSY, PLANETARY SUN
35706JBEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR)
35709FDRUM SUB-ASSY, 2ND BRAKE
35709GRING, HOLE SNAP (FOR 2ND BRAKE DRUM)
35729AWASHER, PLANETARY CARRIER THRUST, NO.4
35738AWASHER, 1 WAY CLUTCH THRUST, NO.1
35749ARING, SUN GEAR SHAFT OIL SEAL
35755DRUM, SUN GEAR INPUT
35755ARING, SHAFT SNAP (FOR SUN GEAR INPUT DRUM)
ID=46.0,T=1.2
ID=49.0,WD=2.3
35789ERACE, THRUST BEARING (FOR PLANETARY SUN GEAR)
35790CLUTCH ASSY, 1 WAY
21 parts on this diagram · 2 diagrams in section
