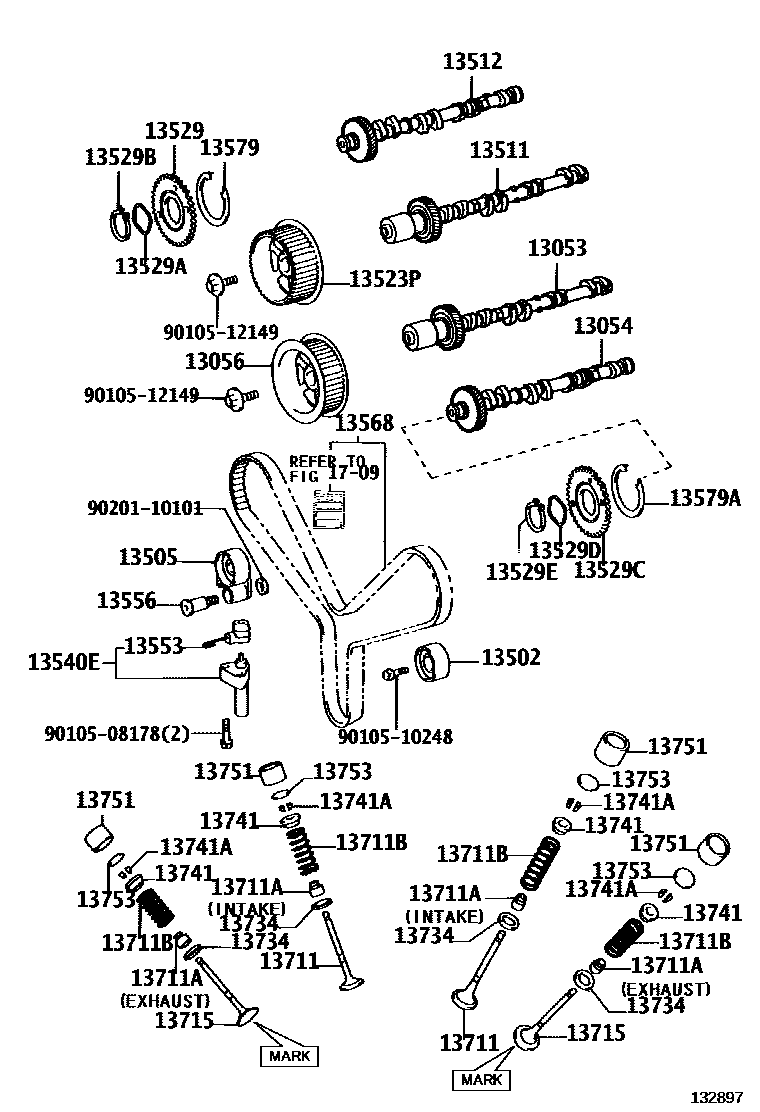

CAMSHAFT & VALVE
13053CAMSHAFT SUB-ASSY, NO.3
13054CAMSHAFT SUB-ASSY, NO.4
13056PULLEY SUB-ASSY, CAMSHAFT TIMING, LH
13502IDLER SUB-ASSY, TIMING BELT, NO.2
13505IDLER SUB-ASSY, TIMING BELT, NO.1
13523PPULLEY, CAMSHAFT TIMING
13529GEAR, CAMSHAFT SUB
13529AWASHER, WAVE(FOR CAMSHAFT SUB GEAR)
13529BRING, SHAFT SNAP(FOR CAMSHAFT SUB GEAR)
13529CGEAR, CAMSHAFT SUB, NO.3
13529DWASHER, WAVE(FOR CAMSHAFT SUB GEAR, NO.3)
13529ERING, SHAFT SNAP(FOR CAMSHAFT SUB GEAR, NO.3)
13556SHAFT, TIMING BELT IDLER
13568BELT, TIMING
13579WASHER, CAMSHAFT TIMING GEAR BOLT
13579AWASHER, CAMSHAFT TIMING GEAR BOLT, NO.3
13711VALVE, INTAKE
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
EXHAUST
INTAKE
13715VALVE, EXHAUST
MARK U,M
MARK U,Y
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13753SHIM, VALVE ADJUSTING
T=2.000,MARK 00
T=2.020,MARK 02
T=2.040,MARK 04
T=2.060,MARK 06
T=2.080,MARK 08
T=2.100,MARK 10
T=2.120,MARK 12
T=2.140,MARK 14
T=2.160,MARK 16
T=2.180,MARK 18
T=2.200,MARK 20
T=2.220,MARK 22
T=2.240,MARK 24
T=2.260,MARK 26
T=2.280,MARK 28
T=2.300,MARK 30
T=2.320,MARK 32
T=2.340,MARK 34
T=2.360,MARK 36
T=2.380,MARK 38
T=2.400,MARK 40
T=2.420,MARK 42
T=2.440,MARK 44
T=2.460,MARK 46
T=2.480,MARK 48
T=2.500,MARK 50
T=2.520,MARK 52
T=2.540,MARK 54
T=2.560,MARK 56
T=2.580,MARK 58
T=2.600,MARK 60
T=2.620,MARK 62
T=2.640,MARK 64
T=2.660,MARK 66
T=2.680,MARK 68
T=2.700,MARK 70
T=2.720,MARK 72
T=2.740,MARK 74
T=2.760,MARK 76
T=2.780,MARK 78
T=2.800,MARK 80
1709
9010508178
main90105-08178
9010510248
main90105-10248
9010512149
main90105-12149
9020110101
main90201-10101
34 parts on this diagram · 2 diagrams in section
