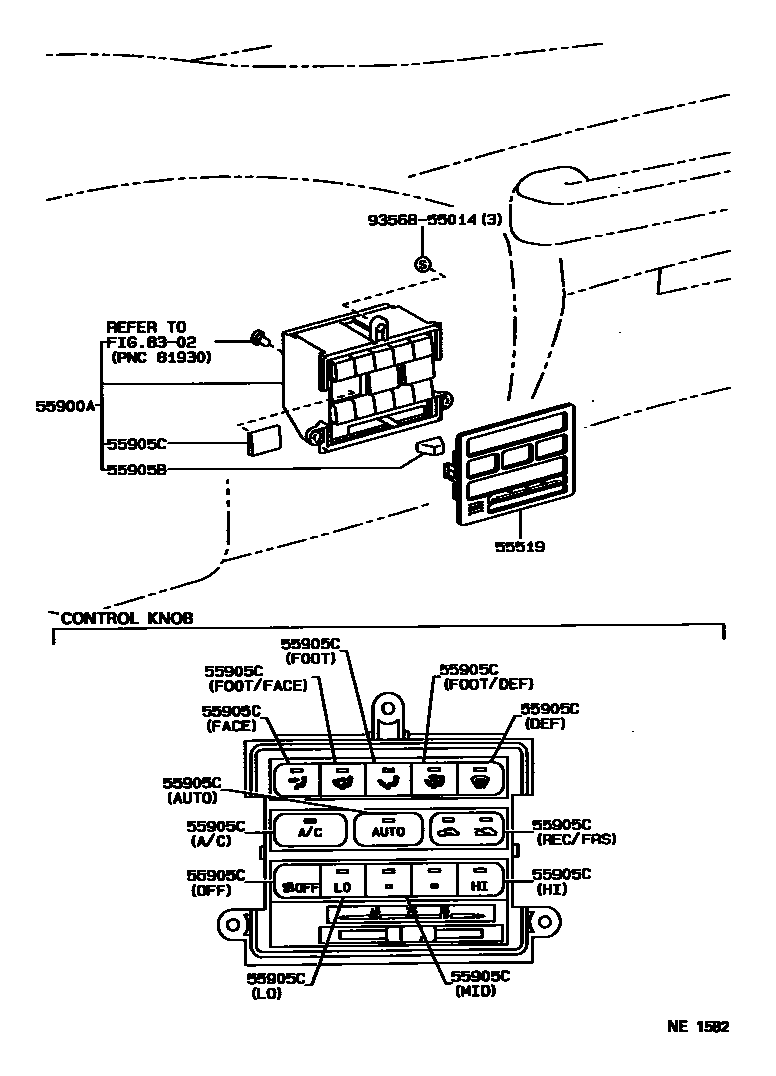

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1CONTROL 0002 1FRONT DUCT 0003 1REAR DUCT 0004 1AUTOMATIC SENSOR

55519PLATE, HEATER CONTROL NAME

main55519-60010iFZJ80199608-199801

CANADA SPEC

main55519-60240iFZJ80199511-199801

55900ACONTROL & ACCESSORY ASSY, HEATER

main55900-60020iFZJ80199511-199801

55905BKNOB, HEATER CONTROL, NO.2

main55905-60140iFZJ80199511-199801

55905CKNOB, HEATER CONTROL, NO.3

main55905-60020iFZJ80199511-199801

A/C

main55905-60030iFZJ80199511-199801

FACE

main55905-60040iFZJ80199511-199801

FOOT/FACE

main55905-60050iFZJ80199511-199801

FOOT

main55905-60060iFZJ80199511-199801

FOOT/DEF

main55905-60070iFZJ80199511-199801

DEF

main55905-60080iFZJ80199511-199801

OFF

main55905-60090iFZJ80199511-199801

LO

main55905-60100iFZJ80199511-199801

MID

main55905-60110iFZJ80199511-199801

HI

main55905-60120iFZJ80199511-199801

REC/FRS

main55905-60130iFZJ80199511-199801

AUTO

8302

9356855014

main93568-55014

6 parts on this diagram · 4 diagrams in section
