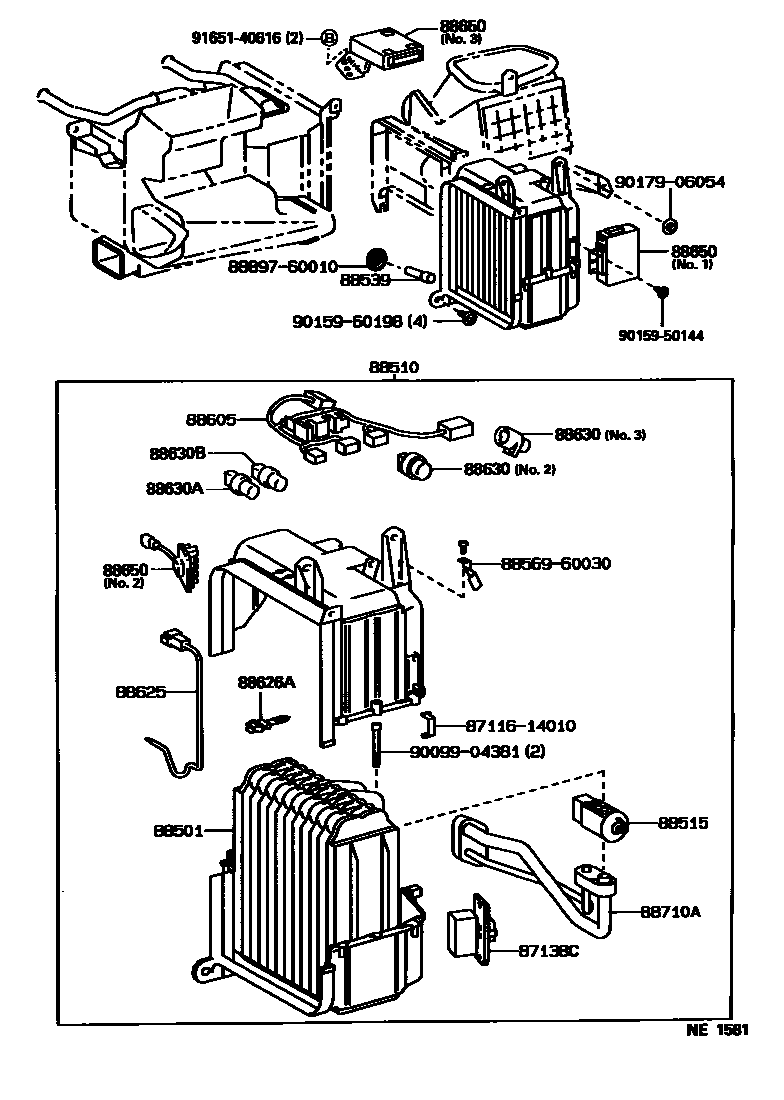

HEATING & AIR CONDITIONING - COOLER UNIT

87138CRESISTOR, BLOWER

main87138-60230iFZJ80199511-199801

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-60101iFZJ80199511-199801

88510UNIT ASSY, COOLER

main88510-60810iFZJ80199511-199801

88515VALVE, COOLER EXPANSION

main88515-20100iFZJ80199511-199801

sub88515-22240

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-60080iFZJ80199511-199801

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-60730iFZJ80199511-199801

88625THERMISTOR, COOLER, NO.1

main88625-60060iFZJ80199511-199801

88626AHOLDER, THERMISTOR

main88626-28010iFZJ80199511-199801

88630RELAY ASSY, COOLER

main88630-14030iFZJ80199511-199801

NO.3

main88630-60060iFZJ80199511-199801

NO.2

88630ARELAY ASSY, COOLER

main90987-02004iFZJ80199511-199801

88630BRELAY ASSY, COOLER

main90987-03001iFZJ80199511-199801

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-60081iFZJ80199511-199801

NO.1

main88650-60081iFZJ80199511-199801

DUAL AIR CONDITIONER

main88650-60130iFZJ80199511-199801

NO.2

main88650-60210iFZJ80199511-199608

NO.3

sub88650-60211

main88650-60211iFZJ80199608-199611

NO.3

sub88650-60212

main88650-60212iFZJ80199611-199801

NO.3

88710ATUBE ASSY, AIR CONDITIONER

main88710-60480iFZJ80199511-199801

8711614010SPRING, HEATER CASE FASTENING

main87116-14010

8856960030CLAMP (FOR COOLER RELAY)

main88569-60030

8889760010VALVE, COOLER MAGNET

main88897-60010

9009904381

main90099-04381

9015950144

main90159-50144

9015960198

main90159-60198

9017906054

main90179-06054

9165140616

main91651-40616

21 parts on this diagram · 1 diagram in section
