BATTERY & BATTERY CABLE

28800BATTERY

main28800-46090i1FZFE..FZJ80199511-199611

75D31L

main28800-46091i1FZFE..FZJ80199611-199801

main28800-66020i1FZFE..FZJ80199511-199611

105D31

main28800-66021i1FZFE..FZJ80199611-199801

105D31L

sub28800-66022

28800ATERMINAL, BATTERY POSITIVE

main90982-05030i1FZFE..FZJ80199511-199801

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-60010i1FZFE..FZJ80199511-199801

28897PLATE, BATTERY CAUTION

main28897-38010i1FZFE..FZJ80199608-199611

CANADA SPEC

main28897-46020i1FZFE..FZJ80199611-199801

CANADA SPEC

28898BPLATE, BATTERY

main28898-50140i1FZFE..FZJ80199511-199801

28898CPLATE, BATTERY

main28898-20010i1FZFE..FZJ80199611-199801

main28898-62010i1FZFE..FZJ80199511-199611

sub28898-20020

9017908146

main90179-08146

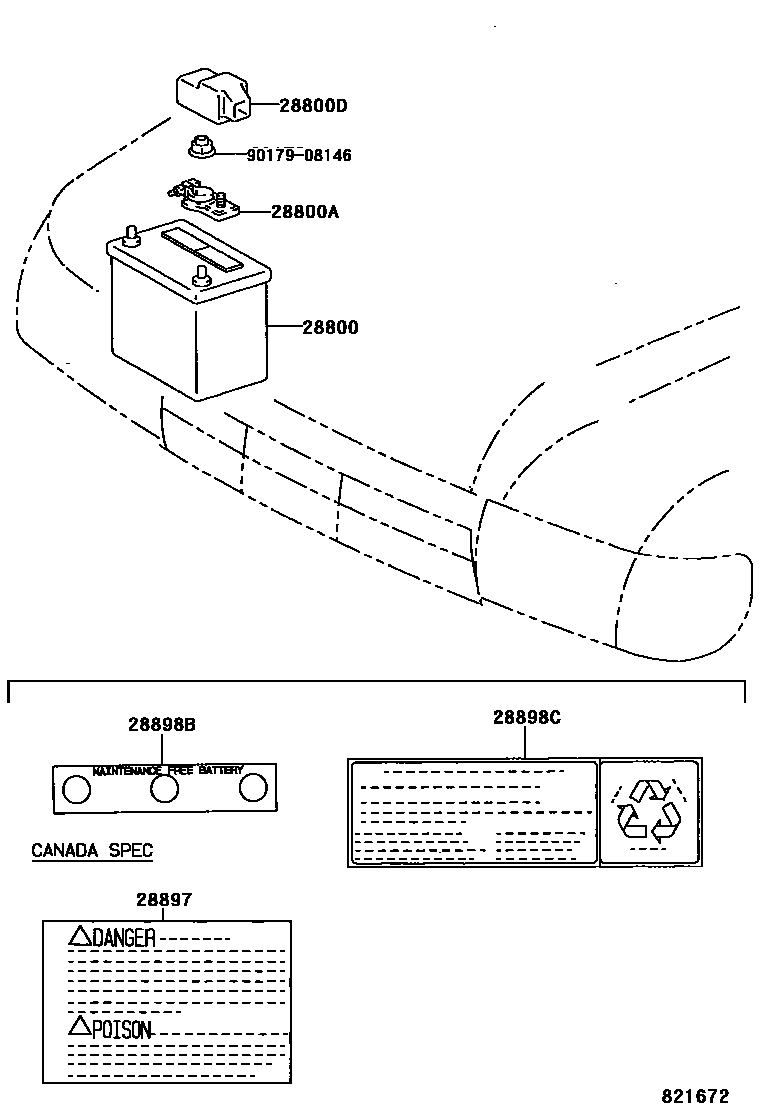

7 parts on this diagram · 1 diagram in section
