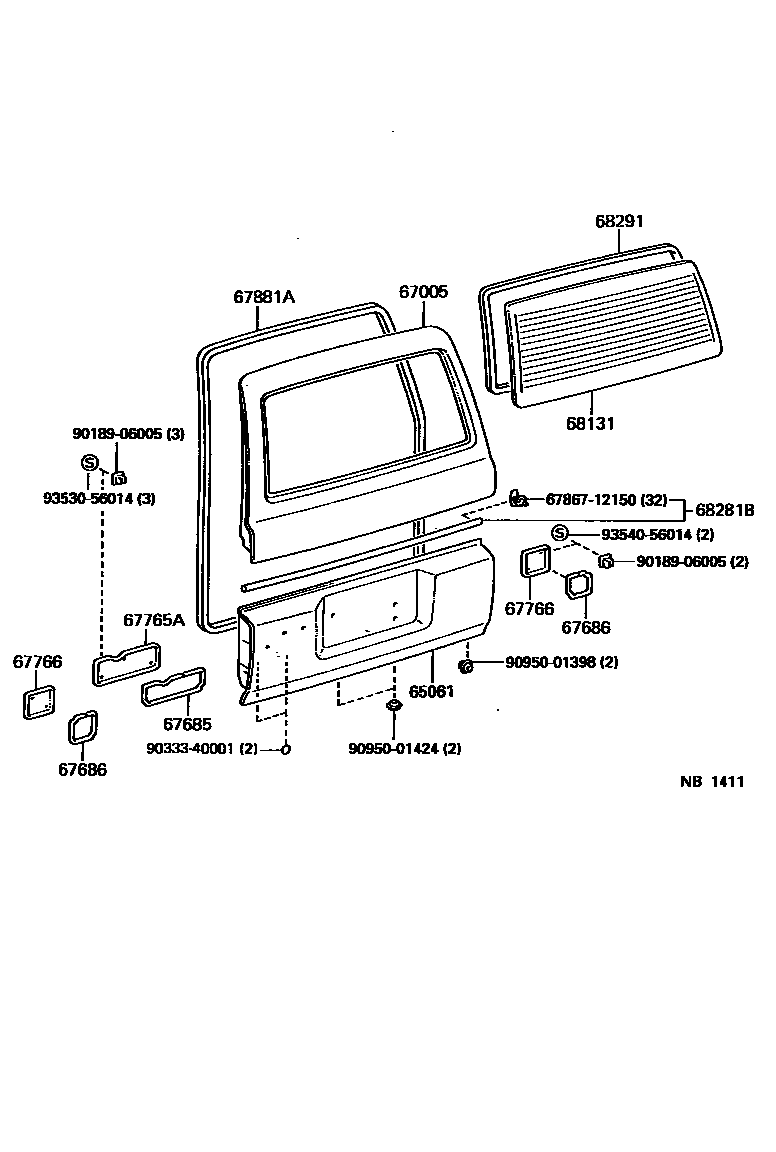

BACK DOOR PANEL & GLASS

0001 1 0002 1TRIM BORD

65061PANEL SUB-ASSY, TAIL GATE

main65061-60070iFZJ80199511-199801

67005PANEL SUB-ASSY, BACK DOOR

main67005-60800iFZJ80199511-199801

67685PACKING, BACK DOOR SERVICE HOLE, NO.1

main67685-60010iFZJ80199511-199801

67686PACKING, BACK DOOR SERVICE HOLE, NO.2

main67685-60010iFZJ80199511-199801

67765ACOVER, BACK DOOR SERVICE HOLE, NO.1

main67765-60010iFZJ80199511-199801

67766COVER, BACK DOOR SERVICE HOLE, NO.2

main67766-60010iFZJ80199511-199801

67881AWEATHERSTRIP, BACK DOOR

main67881-60060iFZJ80199511-199801

68131GLASS, BACK DOOR

main68131-60151iFZJ80199511-199801

*EHSERT,T=4.0,GRAY

68281BWEATHERSTRIP, LIFT GATE

main68281-60010iFZJ80199511-199801

68291WEATHERSTRIP, BACK DOOR GLASS

main68291-60050iFZJ80199511-199801

6786712150CLIP, DOOR WEATHERSTRIP

main67867-12150

9018906005

main90189-06005

9033340001

main90333-40001

9095001398

main90950-01398

9095001424

main90950-01424

9353056014

main93530-56014

9354056014

main93540-56014

17 parts on this diagram · 2 diagrams in section
