SIDE MEMBER
61021CPILLAR SUB-ASSY, FRONT BODY, RH
61022CPILLAR SUB-ASSY, FRONT BODY, LH
61031EXTENSION SUB-ASSY, QUARTER PANEL, REAR LOWER RH
61032EXTENSION SUB-ASSY, QUARTER PANEL, REAR LOWER LH
61181ABRACKET, INSTRUMENT SIDE, RH
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61231RAIL, ROOF SIDE, INNER RH
61232RAIL, ROOF SIDE, INNER LH
61261CHANNEL, ROOF DRIP, RH
61262CHANNEL, ROOF DRIP, LH
61267ACHANNEL, ROOF DRIP SIDE, REAR RH
61268CHANNEL, ROOF DRIP SIDE, REAR LH
61301PILLAR SUB-ASSY, CENTER BODY, RH
61302PILLAR SUB-ASSY, CENTER BODY, LH
61605EPANEL, QUARTER, RH
61606EPANEL, QUARTER, LH
61611PANEL, QUARTER, RH
61612PANEL, QUARTER, LH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH
61646BGUSSET, QUARTER WHEEL HOUSE, REAR LH
61659BRETAINER, REAR DOOR OPEN SWITCH SET, RH
61659CRETAINER, REAR DOOR OPEN SWITCH SET, LH
61665BREINFORCE, SEAT BELT ANCHORAGE TO QUARTER WHEEL HOUSE, RH
61666BREINFORCE, SEAT BELT ANCHORAGE TO QUARTER WHEEL HOUSE, LH
61703GPANEL SUB-ASSY, QUARTER, INNER RH
61704HPANEL SUB-ASSY, QUARTER, INNER LH
61711PANEL, ROOF SIDE, OUTER RH
61712PANEL, ROOF SIDE, OUTER LH
61733APANEL, ROOF SIDE, INNER FRONT RH
61734APANEL, ROOF SIDE, INNER FRONT LH
61824CPAD, NOISE SHUTTER, NO.1
sub62554-58010
9017908102
main90179-08102
9033320001
main90333-20001
9095001027
main90950-01027
9095001056
main90950-01056
9095001061
main90950-01061
9095001336
main90950-01336
9095001398
main90950-01398

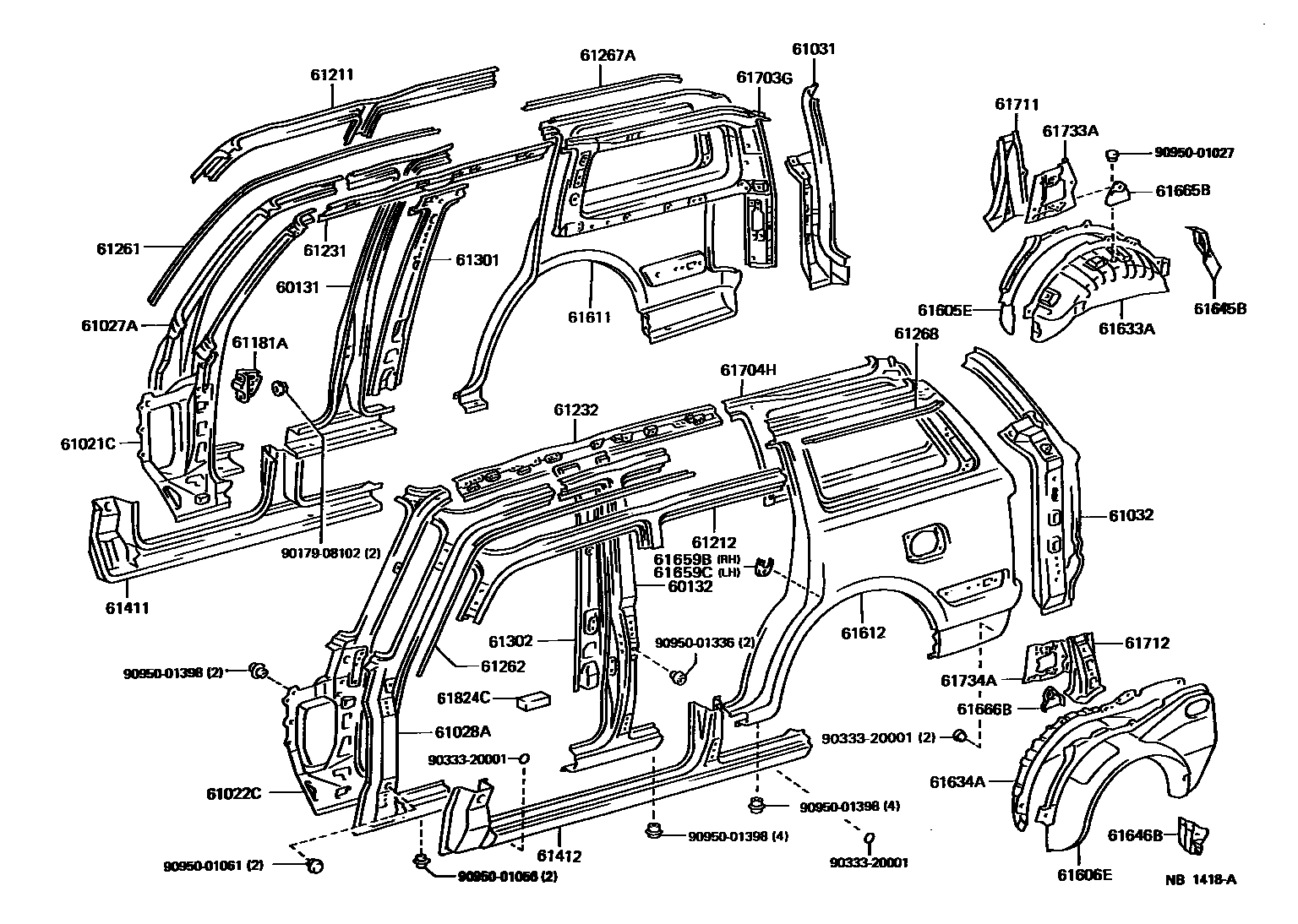

47 parts on this diagram · 2 diagrams in section
