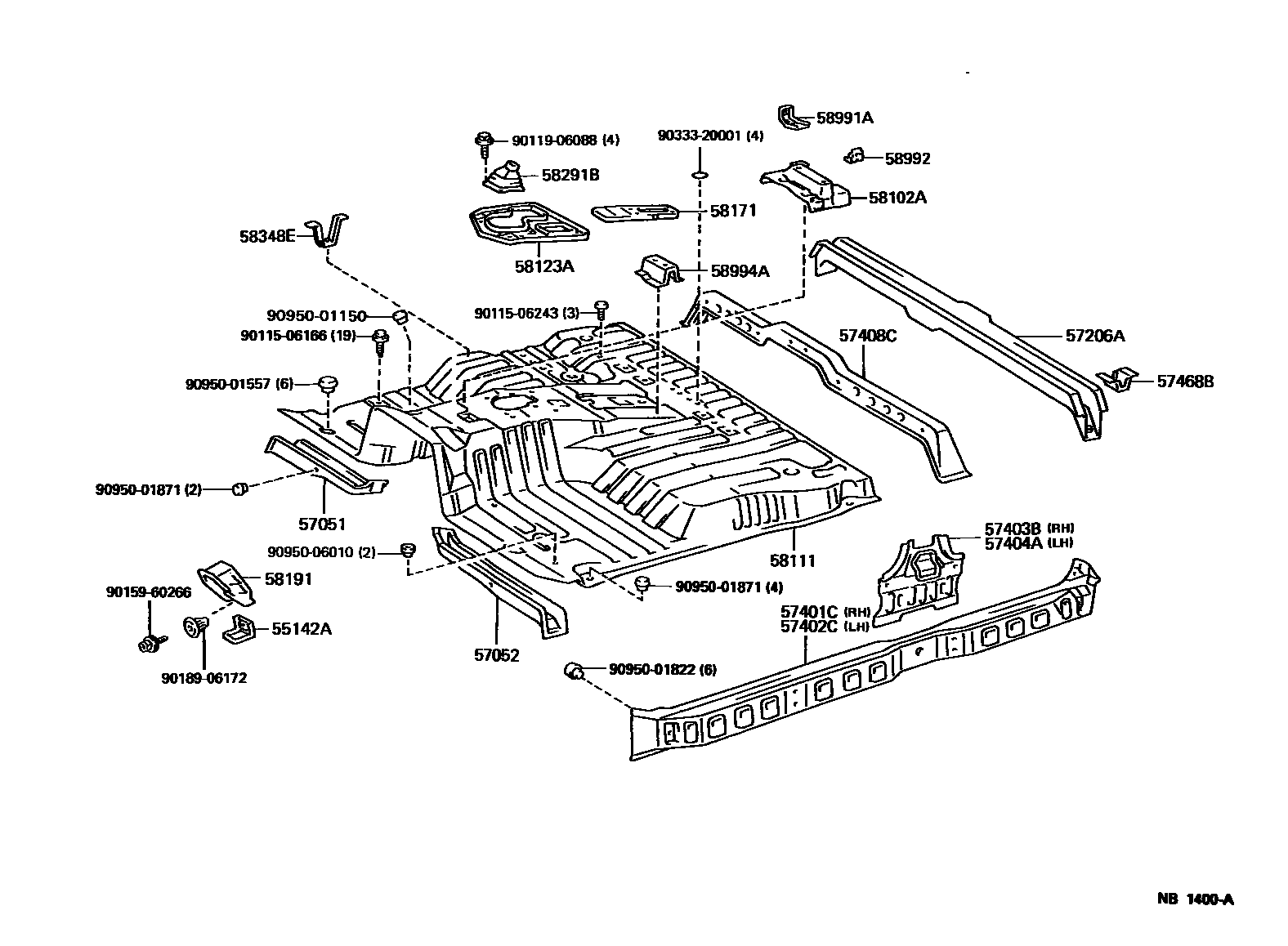

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

55142ABRACKET, FOOT REST MOUNTING, NO.2

main55142-60040iFZJ80199511-199801

57051MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-60021iFZJ80199511-199801

57052MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-60021iFZJ80199511-199801

57206AMEMBER SUB-ASSY, FRONT FLOOR CROSS, NO.2

main57206-60061iFZJ80199511-199801

57401CMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-60022iFZJ80199511-199801

57402CMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-60022iFZJ80199511-199801

57403BREINFORCE SUB-ASSY, FLOOR SIDE, INNER RH

main57403-60010iFZJ80199511-199801

57404AREINFORCE SUB-ASSY, FLOOR SIDE, INNER LH

main57404-60010iFZJ80199511-199801

57408CMEMBER SUB-ASSY, FRONT FLOOR CROSS

main57408-60012iFZJ80199511-199801

57468BBRACKET, FRONT SEAT, REAR

main57468-60012×2iFZJ80199511-199801

58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR

main58102-60050iFZJ80199511-199801

58111PAN, FRONT FLOOR

main58111-60292iFZJ80199608-199801

W(FRONT HEATER)

main58111-60302iFZJ80199511-199801

58123ASUPPORT, SHIFT & SELECT LEVER

main58123-60020iFZJ80199511-199801

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-60010iFZJ80199511-199801

58191FOOTREST, FRONT FLOOR

main58192-60020iFZJ80199511-199801

58291BBOOT, TRANSFER SHIFT LEVER

main58290-60010iFZJ80199511-199801

58348EBRACKET, REAR FLOOR HEAT INSULATOR, NO.3

main58348-60010iFZJ80199511-199801

58991ABRACKET, CONSOLE BOX MOUNTING, UPPER RH

main58991-60030iFZJ80199511-199801

58992BRACKET, CONSOLE BOX MOUNTING, UPPER LH

main58992-60020iFZJ80199511-199801

58994ABRACKET, CONSOLE BOX MOUNTING, NO.4

main58997-60010iFZJ80199511-199801

9011506166

main90115-06166

9011506243

main90115-06243

9011906088

main90119-06088

9015960266

main90159-60266

9018906172

main90189-06172

9033320001

main90333-20001

9095001150

main90950-01150

9095001557

main90950-01557

9095001822

main90950-01822

9095001871

main90950-01871

9095006010

main90950-06010

31 parts on this diagram · 1 diagram in section
