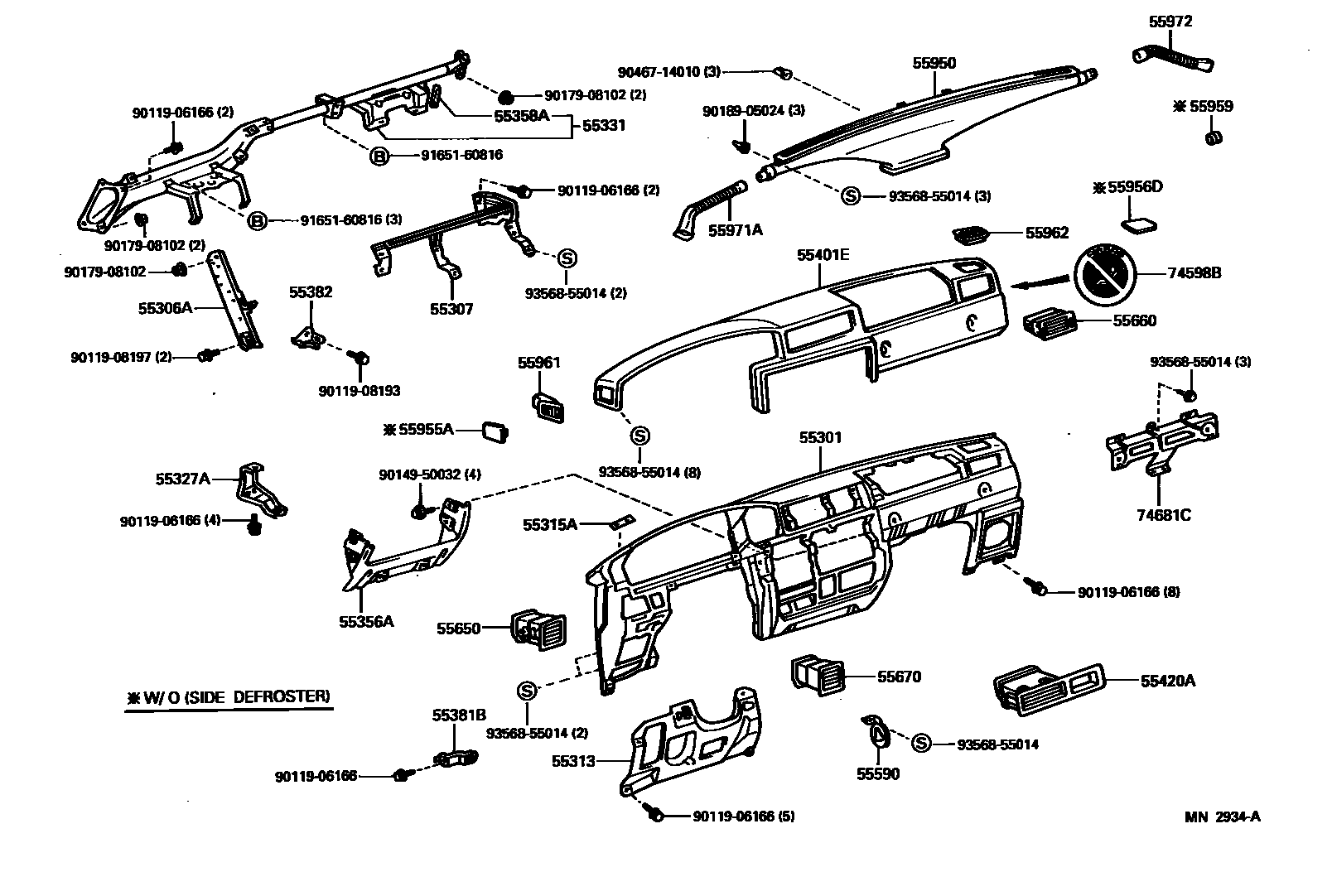

INSTRUMENT PANEL & GLOVE COMPARTMENT
55301PANEL SUB-ASSY, INSTRUMENT
OAK,TRIM4#
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55307REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, LOWER
55313PANEL, INSTRUMENT, LOWER LH
55315ASPACER, INSTRUMENT PANEL, NO.1
55327ASTAY, INSTRUMENT PANEL, NO.2
55331REINFORCEMENT, INSTRUMENT PANEL
55356APLATE, INSTRUMENT PANEL, LOWER
55358APROTECTOR, EDGE, NO.2
sub64777-90A00
55381BBRACKET, FINISH PANEL MOUNTING, NO.1
55382BRACKET, FINISH PANEL MOUNTING, NO.2
55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY
OAK,TRIM4#
55420APANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER
sub55420-60030
55590PLATE ASSY, GROVE COMPARTMENT DOOR LOCK STRIKER
55650REGISTER ASSY, INSTRUMENT PANEL, NO.1
55660REGISTER ASSY, INSTRUMENT PANEL, NO.2
sub55660-60090
55670REGISTER ASSY, INSTRUMENT PANEL, NO.3
55950NOZZLE ASSY, DEFROSTER
55955APLATE, DEFROSTER NOZZLE OPENING, NO.1
OAK,TRIM4#
55956DPLATE, DEFROSTER NOZZLE OPENING, NO.2
OAK,TRIM4#
55959COVER, DEFROSTER NOZZLE OPENING, NO.1
55961NOZZLE, SIDE DEFROSTER, NO.1
OAK,TRIM4#
55962NOZZLE, SIDE DEFROSTER, NO.2
OAK,TRIM4#
55971ADUCT, SIDE DEFROSTER NOZZLE, NO.1
55972DUCT, SIDE DEFROSTER NOZZLE, NO.2
74598BLABEL, PASSENGER AIRBAG CAUTION
74681CRETAINER, ASSIST GRIP
9011906166
main90119-06166
9011908193
main90119-08193
9011908197
main90119-08197
9014950032
main90149-50032
9017908102
main90179-08102
9018905024
main90189-05024
9046714010
main90467-14010
9165160816
main91651-60816
9356855014
main93568-55014
36 parts on this diagram · 3 diagrams in section
