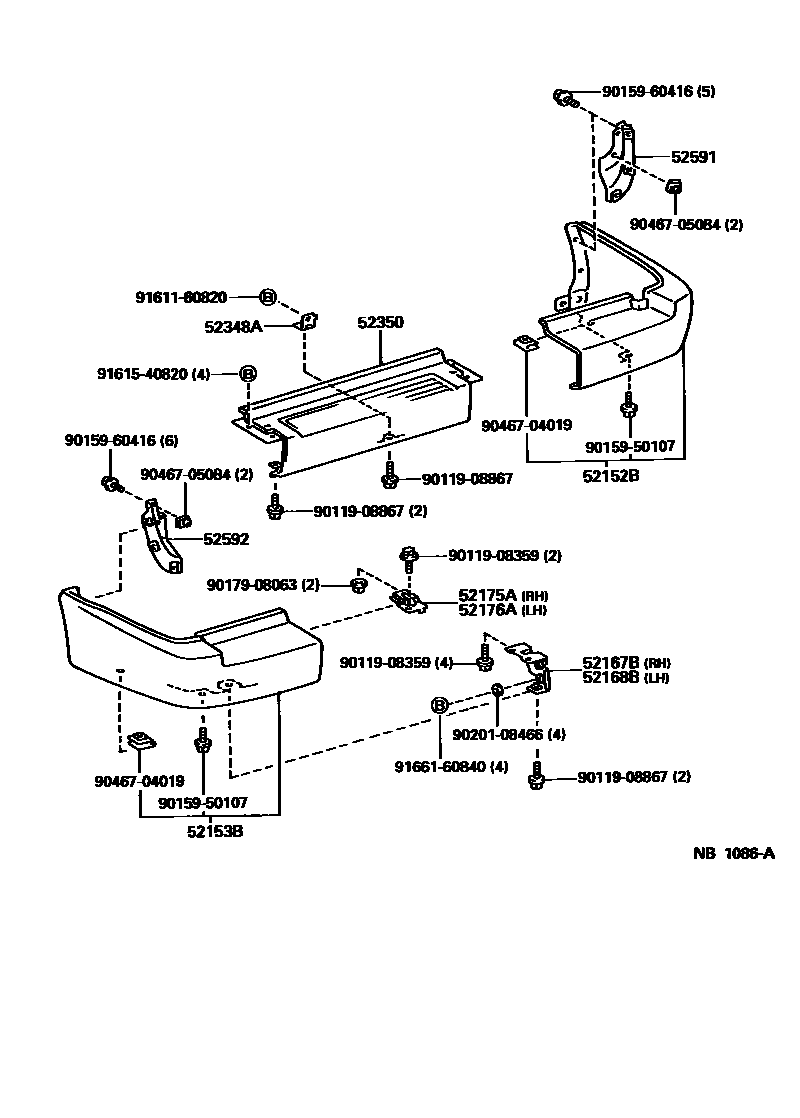

REAR BUMPER & BUMPER STAY

52152BEXTENSION, REAR BUMPER, RH

main52106-60900iFZJ80199511-199801

52153BEXTENSION, REAR BUMPER, LH

main52107-60900iFZJ80199511-199801

52167BBRACKET, REAR BUMPER EXTENSION MOUNTING, RH

main52167-60020iFZJ80199511-199801

52168BBRACKET, REAR BUMPER EXTENSION MOUNTING, LH

main52168-60020iFZJ80199511-199801

52175ABRACKET, REAR BUMPER ARM MOUNTING, RH

main52175-60040iFZJ80199511-199801

52176ABRACKET, REAR BUMPER ARM MOUNTING, LH

main52176-60030iFZJ80199511-199801

52348ABRACKET, BACK STEP FRAME, NO.2

main52348-60020iFZJ80199511-199801

52350STEP ASSY, REAR BUMPER

main52350-60900iFZJ80199511-199801

sub52350-60010

52591SEAL, REAR BUMPER SIDE, RH

main52591-60010iFZJ80199511-199801

52592SEAL, REAR BUMPER SIDE, LH

main52592-60010iFZJ80199511-199801

9011908359

main90119-08359

9011908867

main90119-08867

9015950107

main90159-50107

9015960416

main90159-60416

9017908063

main90179-08063

9020108466

main90201-08466

9046704019

main90467-04019

9046705084

main90467-05084

9161160820

main91611-60820

9161540820

main91615-40820

9166160840

main91661-60840

21 parts on this diagram · 1 diagram in section
