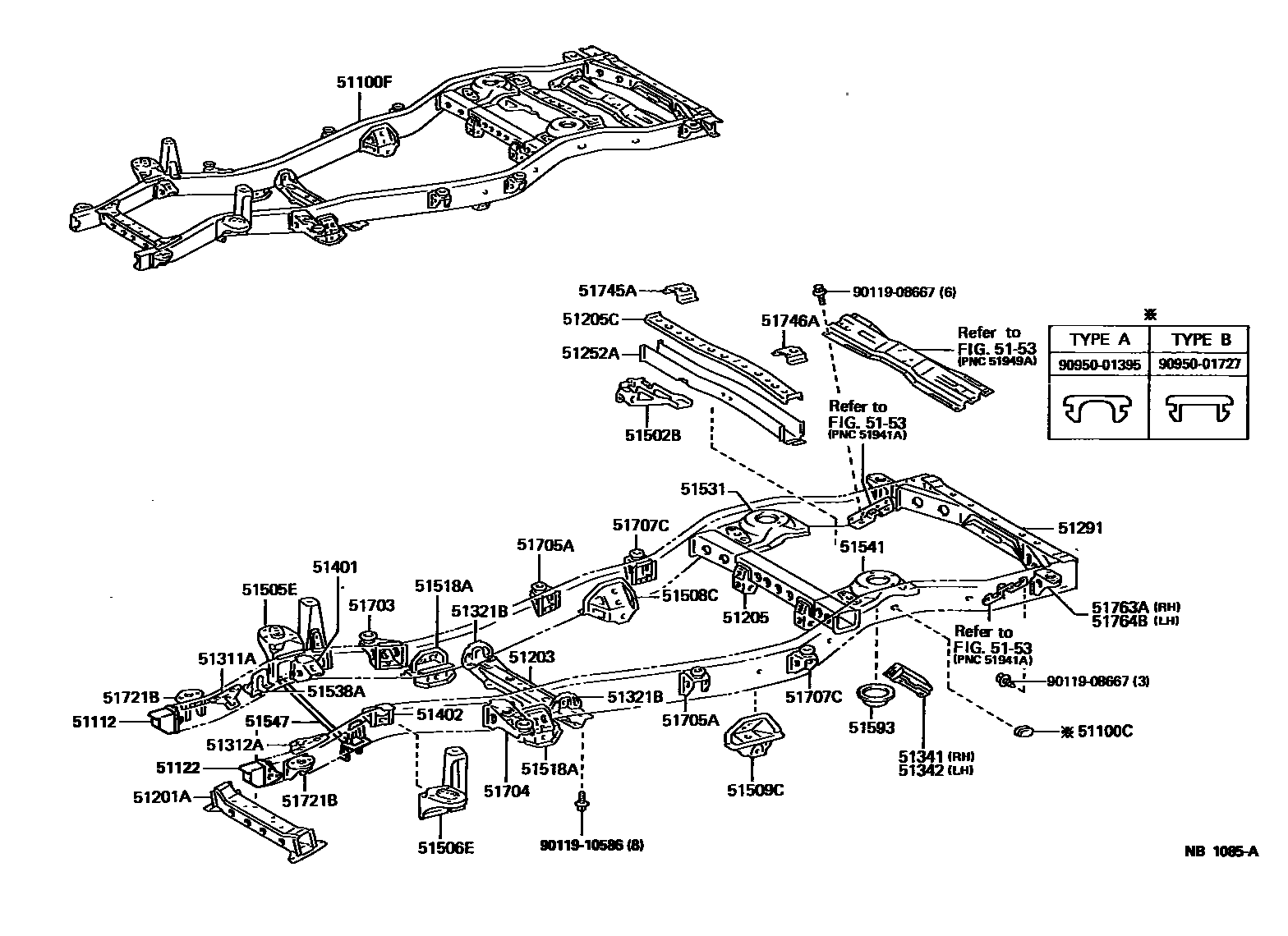

FRAME
51100CPLUG, HOLE(FOR FRAME)
TYPE A
TYPE B
51100FFRAME SUB-ASSY
51112EXTENSION, SIDE RAIL, RH
51122EXTENSION, SIDE RAIL, LH
51201ACROSSMEMBER SUB-ASSY, FRAME, FRONT
51203CROSSMEMBER SUB-ASSY, FRAME, NO.2
51205CROSSMEMBER SUB-ASSY, FRAME, NO.4
51205CCROSSMEMBER SUB-ASSY, FRAME, NO.5
51252ACROSSMEMBER, FRAME, NO.5 LOWER
51291CROSSMEMBER, FRAME, REAR
51311AGUSSET, REAR FRAME, UPPER RH
51312AGUSSET, REAR FRAME, UPPER LH
51321BGUSSET, CROSSMEMBER, NO.2
51341GUSSET, FRAME NO.4 CROSSMEMBER, RH
51342GUSSET, FRAME NO.4 CROSSMEMBER, LH
51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51502BBRACKET SUB-ASSY, LATERAL ROD SUPPORT
51505EBRACKET SUB-ASSY, FRONT SPRING SUPPORT, RH
51506EBRACKET SUB-ASSY, FRONT SPRING SUPPORT, LH
51508CBRACKET SUB-ASSY, LOWER CONTROL LINK, RH
51509CBRACKET SUB-ASSY, LOWER CONTROL LINK, LH
51518ABRACKET, LEADING ARM
5153
51531BRACKET, REAR SPRING SUPPORT, RH
51538ASTAY, LATERAL ROD SUPPORT, FRONT RH
51541BRACKET, REAR SPRING SUPPORT, LH
51547BRACKET, LATERAL ROD SUPPORT, FRONT LH
51593BRACKET, REAR SPRING BUMPER
51703BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH
51704BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH
51705ABRACKET SUB-ASSY, CAB MOUNTING, NO.3
51707CBRACKET SUB-ASSY, CAB MOUNTING, NO.4 RH
51721BBRACKET, CAB FRONT MOUNTING, NO.1
51745ABRACKET, REAR BODY MOUNTING, NO.5 RH
51746ABRACKET, REAR BODY MOUNTING, NO.5 LH
51763ABRACKET, BODY SUPPORT, NO.6 RH
51764BBRACKET, BODY SUPPORT, NO.6 LH
9011908667
9011910586
9095001395
9095001727
42 parts on this diagram · 1 diagram in section
