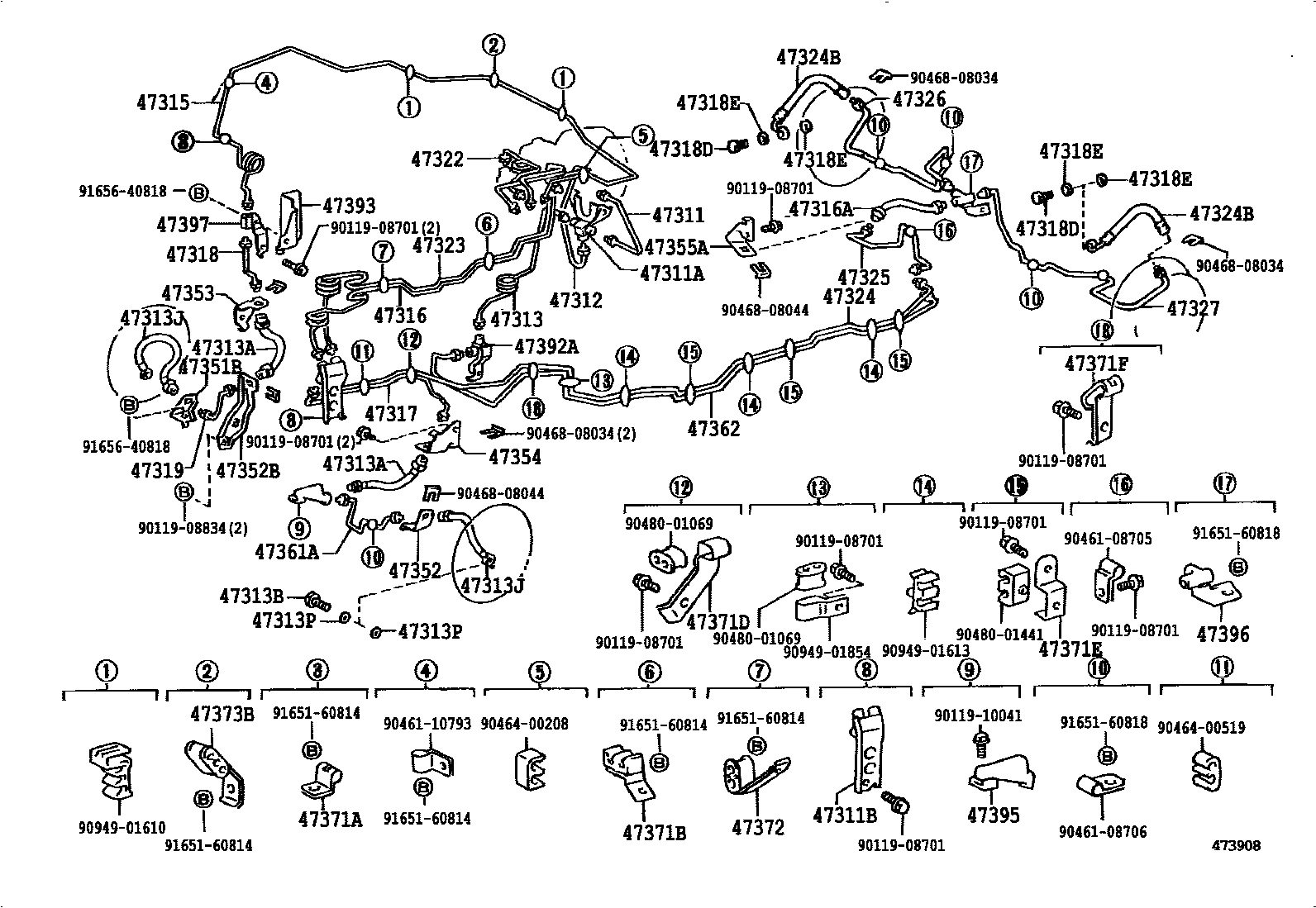

BRAKE TUBE & CLAMP
47311TUBE, FRONT BRAKE, NO.1
47311AWAY(FOR FRONT BRAKE TUBE)
47311BWAY, NO.1(FOR FRONT BRAKE TUBE)
47312TUBE, FRONT BRAKE, NO.2
47313TUBE, FRONT BRAKE, NO.3
47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)
RH
47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)
47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)
sub90947-02967
47313PGASKET(FOR FRONT FLEXIBLE HOSE)
47315TUBE, FRONT BRAKE, NO.5
47316TUBE, FRONT BRAKE, NO.6
47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
sub90947-02968
47317TUBE, FRONT BRAKE, NO.7
47318TUBE, FRONT BRAKE, NO.8
47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)
47318EGASKET(FOR REAR FLEXIBLE HOSE)
47319TUBE, FRONT BRAKE, NO.9
47322TUBE, REAR BRAKE, NO.2
47323TUBE, REAR BRAKE, NO.3
47324TUBE, REAR BRAKE, NO.4
47324BHOSE, FLEXIBLE(FOR REAR BRAKE TUBE, NO.2)
RH
LH
47325TUBE, REAR BRAKE, NO.5
47326TUBE, REAR BRAKE, NO.6
47327TUBE, REAR BRAKE, NO.7
47351BBRACKET, FLEXIBLE HOSE, NO.1
47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352BBRACKET, FLEXIBLE HOSE, NO.2
47353BRACKET, FLEXIBLE HOSE(FOR REAR)
47354BRACKET, FRONT FLEXIBLE HOSE
47355ABRACKET, FLEXIBLE HOSE, NO.5
47361ATUBE, FRONT BRAKE, NO.10
47362TUBE, FRONT BRAKE, NO.11
47371ACLAMP, BRAKE TUBE, NO.1
47371BCLAMP, BRAKE TUBE, NO.6
47371DCLAMP, BRAKE TUBE, NO.8
47371ECLAMP, BRAKE TUBE, NO.9
47371FCLAMP, BRAKE TUBE, NO.10
47372CLAMP, BRAKE TUBE, NO.2
47373BCLAMP, BRAKE TUBE, NO.3
47392AWAY, BRAKE TUBE, NO.2
47393INSULATOR, BRAKE TUBE HEAT
47395WAY, BRAKE TUBE, NO.3
47396WAY, BRAKE TUBE, NO.4
47397WAY, BRAKE TUBE, NO.5
9011908701
main90119-08701
9011908834
main90119-08834
9011910041
main90119-10041
9046108705
main90461-08705
9046108706
main90461-08706
9046110793
main90461-10793
9046400208
main90464-00208
9046400519
main90464-00519
9046808034
main90468-08034
9046808044
main90468-08044
9048001069
main90480-01069
9048001441
main90480-01441
9094901610
main90949-01610
9094901613
main90949-01613
9094901854
main90949-01854
9165160814
main91651-60814
9165160818
main91651-60818
9165640818
main91656-40818
62 parts on this diagram · 3 diagrams in section
