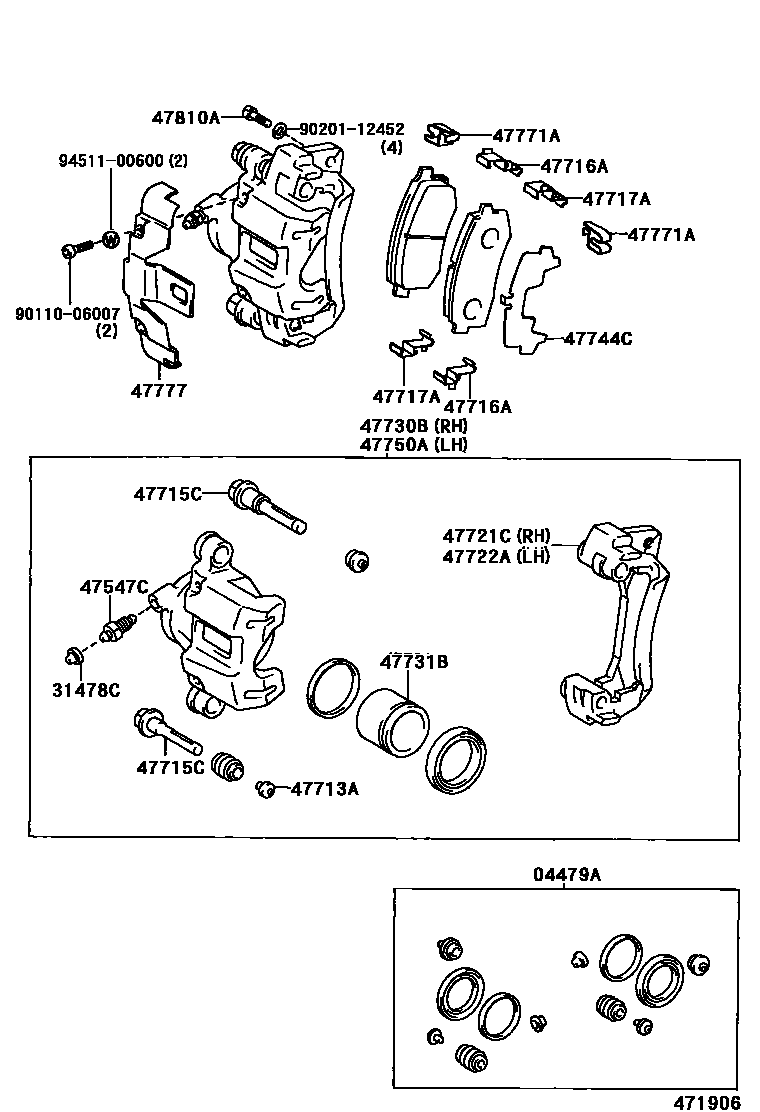

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-60030iFZJ80199511-199801

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iFZJ80199511-199801

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-12030iFZJ80199511-199801

47713APLUG, HOLE(FOR REAR DISC BRAKE CYLINDER)

main90950-01301iFZJ80199511-199801

47715CPIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)

main47715-22010iFZJ80199511-199801

47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47716-22010iFZJ80199511-199801

47717APLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE)

main47717-22010iFZJ80199511-199801

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-60020iFZJ80199511-199801

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47722-60020iFZJ80199511-199801

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-60070iFZJ80199511-199801

sub47730-60110

47731BPISTON, REAR DISC BRAKE

main47731-60020iFZJ80199511-199801

47744CSHIM, ANTI-SQUEAL, NO.1(FOR REAR DISC BRAKE)

main47744-60010iFZJ80199511-199801

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-60070iFZJ80199511-199801

sub47750-60110

47771APLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE)

main47771-22030iFZJ80199511-199801

47777PROTECTOR, DUST BOOT, RH

main47777-60010iFZJ80199511-199801

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90101-12167iFZJ80199511-199801

9011006007

main90110-06007

9020112452

main90201-12452

9451100600

main94511-00600

19 parts on this diagram · 2 diagrams in section
