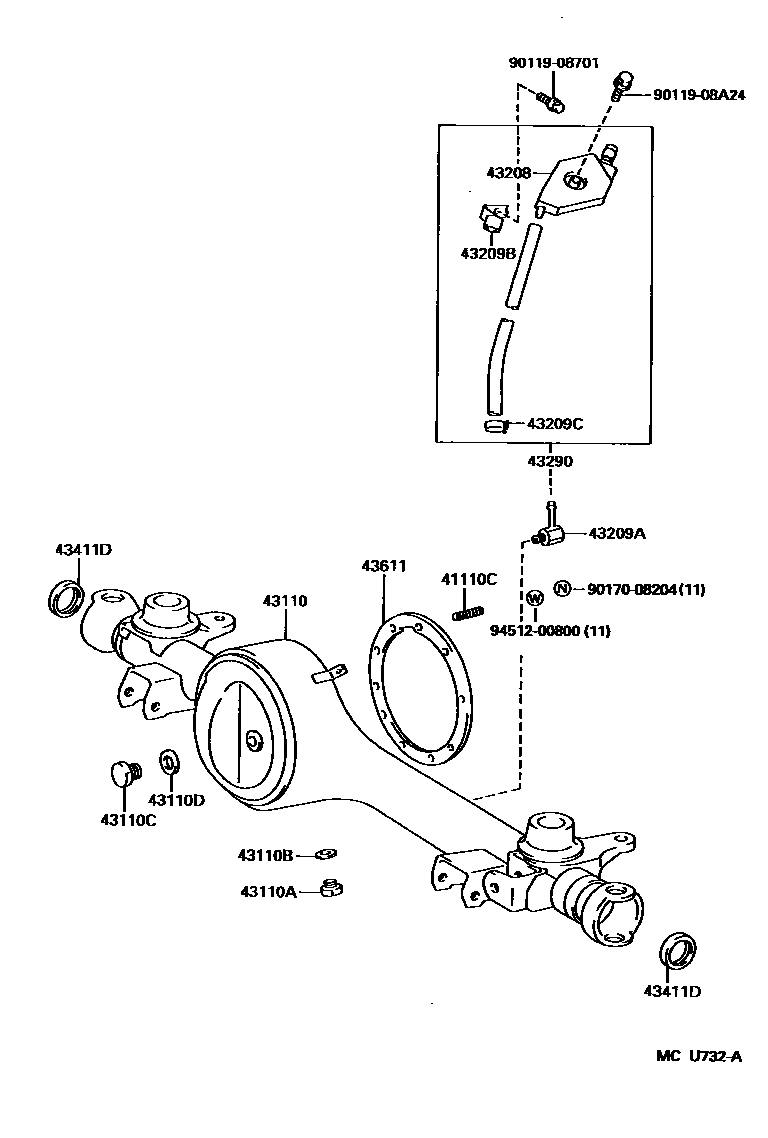

FRONT AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1 0003 1W(DIFFERENTIAL LOCK) 0004 1W(DIFFERENTIAL LOCK)

41110CBOLT, STUD (FOR FRONT DIFFERENTIAL CARRIER)

main90116-08233iFZJ80199511-199801

S=14 & 14,L=42

main90116-08329iFZJ80199511-199801

S=17 & 12,L=37,W(*DL)

main90116-08329iFZJ80199511-199801

S=17 & 12,L=37

main90116-08330iFZJ80199511-199801

S=17 & 12,L=111,W(*DL)

43110HOUSING ASSY, FRONT AXLE

main43110-60380iFZJ80199511-199801

main43110-60400iFZJ80199511-199801

W(*DL)

43110APLUG SUB-ASSY, DRAIN

main90341-18040iFZJ80199511-199801

43110BGASKET, DRAIN

main12157-10010iFZJ80199511-199801

43110CPLUG (FOR FRONT AXLE HOUSING)

main90341-18006iFZJ80199511-199801

43110DGASKET (FOR FRONT AXLE HOUSING PLUG)

main12157-10010iFZJ80199511-199801

43208TANK SUB-ASSY, FRONT AXLE BREATHER

main43208-60010iFZJ80199511-199801

43209AUNION (FOR FRONT AXLE BREATHER HOSE)

main90904-04001iFZJ80199511-199801

43209BCLAMP (FOR FRONT AXLE BREATHER HOSE)

main90461-12404iFZJ80199511-199801

43209CCLIP, HOSE (FOR FRONT AXLE BREATHER HOSE)

main96132-30600iFZJ80199511-199801

sub96132-51100

43290HOSE ASSY, FRONT AXLE BREATHER

main43290-60010iFZJ80199511-199801

43411DSEAL, TYPE T OIL (FOR FRONT DRIVE SHAFT)

main90310-35010iFZJ80199511-199801

43611GASKET, FRONT AXLE DIFFERENTIAL CARRIER

main42181-60080iFZJ80199511-199801

W(*DL)

sub42181-60170

main42181-60090iFZJ80199511-199801

sub42181-60160

9011908701

main90119-08701

9011908A24

main90119-08A24

9017008204

main90170-08204

9451200800

main94512-00800

17 parts on this diagram · 4 diagrams in section
