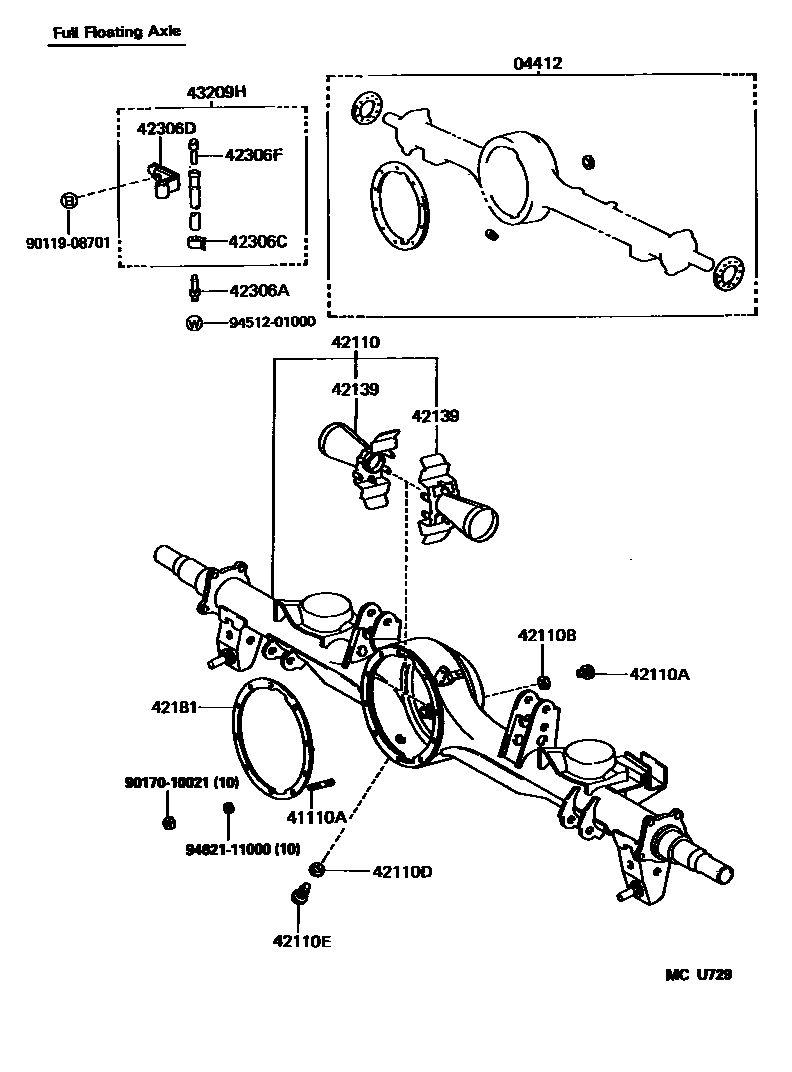

REAR AXLE HOUSING & DIFFERENTIAL
04412GASKET KIT, REAR DIFFERENTIAL CARRIER
W(*DL)
41110CARRIER ASSY, DIFFERENTIAL, REAR
41110ABOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
S=16 & 12.5,L=40.5,W(*DL)
S=16 & 12.5,L=40.5
S=18 & 12.5,L=53.5
S=18 & 12.5,L=53.5,W(*DL)
S=32 & 12.5,L=91.4,W(*DL)
S=28 & 12.5,L=63.5,W(*DL)
42110HOUSING ASSY, REAR AXLE
W(*DL)
42110APLUG (FOR REAR AXLE HOUSING FILLER)
42110BGASKET (FOR REAR AXLE HOUSING FILLER PLUG)
42110DGASKET (FOR REAR AXLE HOUSING DRAIN PLUG)
42110EPLUG (FOR REAR AXLE HOUSING DRAIN)
42139DEFLECTOR, REAR AXLE HOUSING OIL
sub42108-60030
42181GASKET, REAR DIFFERENTIAL CARRIER
W(*DL)
42306AUNION (FOR REAR AXLE BREATHER HOUSE)
42306CCLIP, HOSE (FOR REAR AXLE BREATHER HOSE)
sub96132-51100
42306DCLAMP (FOR REAR AXLE BRATHER HOSE)
42306FPLUG, BREATHER (FOR REAR AXLE)
43209HHOSE, FRONT AXLE BREATHER
9011908701
main90119-08701
9017010021
main90170-10021
9451201000
main94512-01000
9462111000
main94621-11000
19 parts on this diagram · 4 diagrams in section
