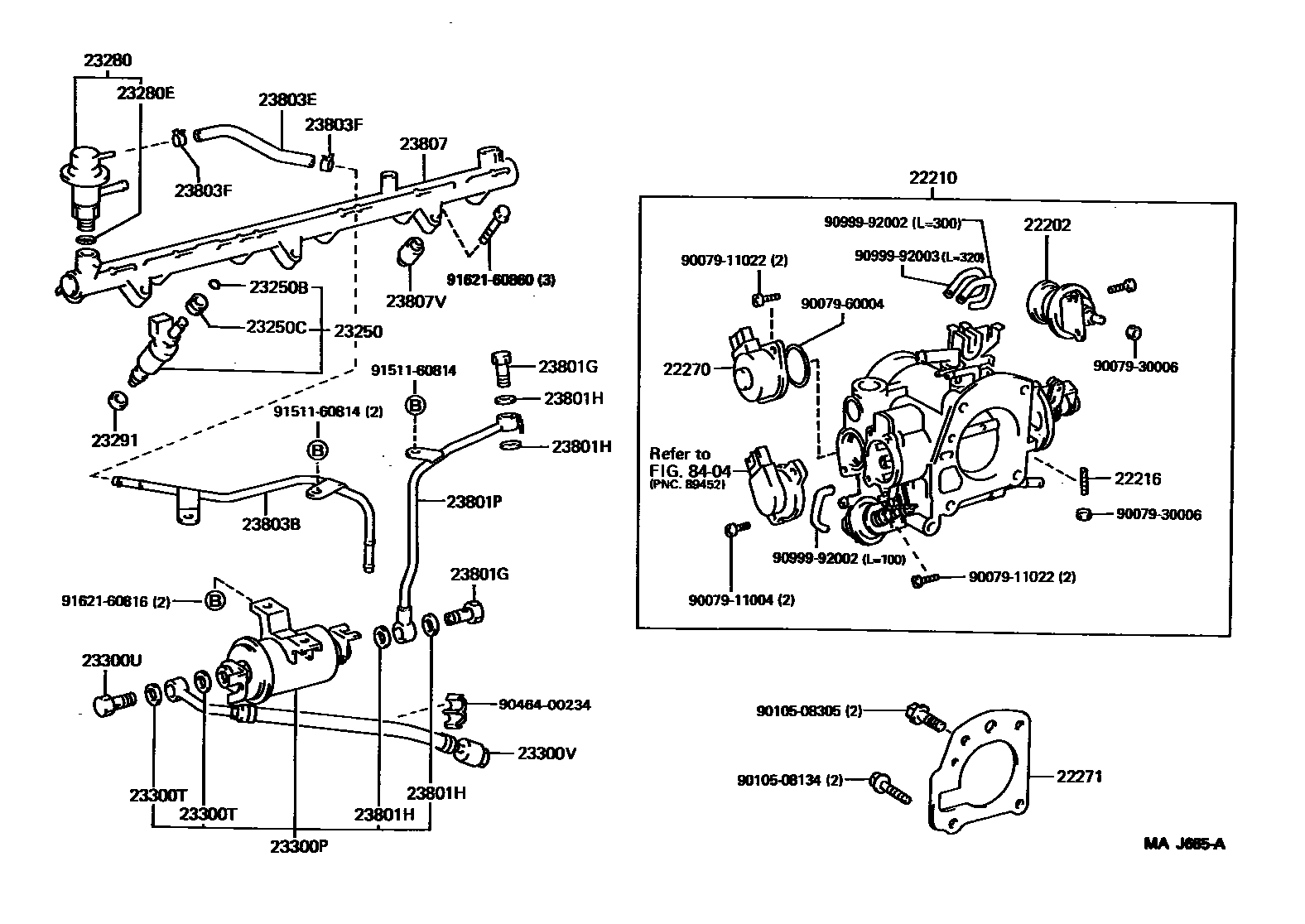

FUEL INJECTION SYSTEM
22202DASH POT SUB-ASSY
22210BODY ASSY, THROTTLE
22216SCREW, DASH POT ADJUSTING
22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22271GASKET, THROTTLE BODY
23250INJECTOR ASSY, FUEL
23250BRING, O(FOR FUEL INJECTOR)
23250CGROMMET(FOR FUEL INJECTOR)
23280REGULATOR ASSY, FUEL PRESSURE
23280ERING, O(FOR FUEL PRESSURE REGULATOR)
23291INSULATOR, INJECTOR VIBRATION
23300PFILTER, FUEL(FOR EFI)
23300TGASKET(FOR FUEL FILTER)
23300UBOLT, UNION(FOR FUEL FILTER)
23300VHOSE, FUEL(FOR FUEL INLET)
23801GBOLT, UNION(FOR FUEL PIPE)
23801HGASKET(FOR FUEL PIPE)
23801PPIPE SUB-ASSY, FUEL, NO.1
23803BPIPE SUB-ASSY, FUEL, NO.3
23803EHOSE, FUEL
23803FCLIP
sub96135-51100
23807PIPE SUB-ASSY, FUEL DELIVERY
23807VSPACER, NO.1(FOR DELIVERY PIPE)
8404
9007911004
main90079-11004
9007911022
main90079-11022
9007930006
main90079-30006
9007960004
main90079-60004
9010508134
main90105-08134
9010508305
main90105-08305
9046400234
main90464-00234
9099992002
main90999-92002
9099992003
main90999-92003
9151160814
main91511-60814
9162160816
main91621-60816
9162160860
main91621-60860
36 parts on this diagram · 2 diagrams in section
