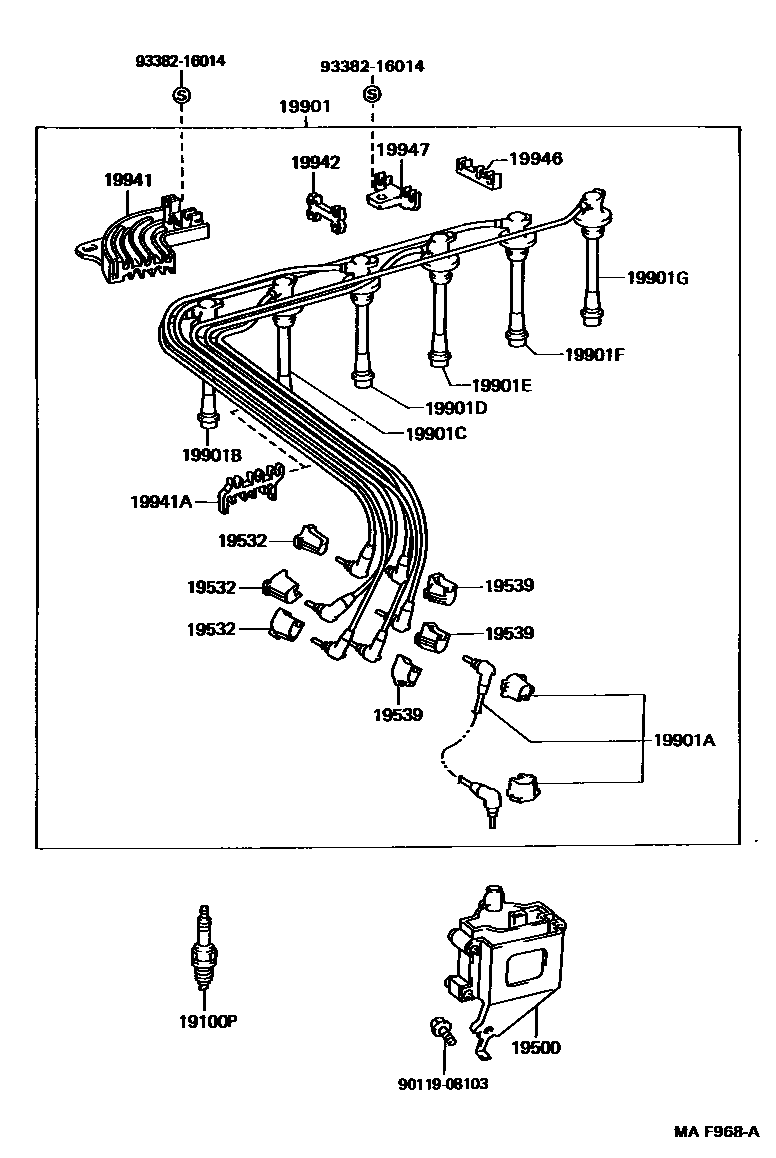

IGNITION COIL & SPARK PLUG / GLOW PLUG

19100PPLUG, SPARK

main90919-01176i1FZFE..FZJ80199511-199801

K16R-U

19500COIL ASSY, IGNITION

main19080-66010i1FZFE..FZJ80199511-199801

19532HOLDER, RESISTIVE CODE, NO.2

main19532-46010i1FZFE..FZJ80199511-199801

19539HOLDER, RESISTIVE CODE, NO.4

main19539-46010i1FZFE..FZJ80199511-199801

MARK A

main19539-50010i1FZFE..FZJ80199511-199801

MARK C

19901CORD SET, COIL & SPARK, W/RESISTIVE

main90919-21557i1FZFE..FZJ80199511-199801

19901ACORD, COIL RESISTIVE

main90919-13436i1FZFE..FZJ80199511-199801

19901BCORD, SPARK PLUG RESISTIVE, NO.1

main90919-15362i1FZFE..FZJ80199511-199801

19901CCORD, SPARK PLUG RESISTIVE, NO.2

main90919-15363i1FZFE..FZJ80199511-199801

19901DCORD, SPARK PLUG RESISTIVE, NO.3

main90919-15364i1FZFE..FZJ80199511-199801

19901ECORD, SPARK PLUG RESISTIVE, NO.4

main90919-15365i1FZFE..FZJ80199511-199801

19901FCORD, SPARK PLUG RESISTIVE, NO.5

main90919-15366i1FZFE..FZJ80199511-199801

19901GCORD, SPARK PLUG RESISTIVE, NO.6

main90919-15367i1FZFE..FZJ80199511-199801

19941CLAMP, RESISTIVE CORD, NO.1

main19941-66010i1FZFE..FZJ80199511-199801

19941ACLAMP(FOR RESISTIVE CORD)

main90929-01278i1FZFE..FZJ80199511-199801

19942CLAMP, RESISTIVE CORD, NO.2

main19942-66010i1FZFE..FZJ80199511-199801

19946CLAMP, RESISTIVE CORD, NO.3

main19946-66010i1FZFE..FZJ80199511-199801

19947CLAMP, RESISTIVE CORD, NO.4

main19947-66010i1FZFE..FZJ80199511-199801

9011908103

main90119-08103

9338216014

main93382-16014

19 parts on this diagram · 1 diagram in section
