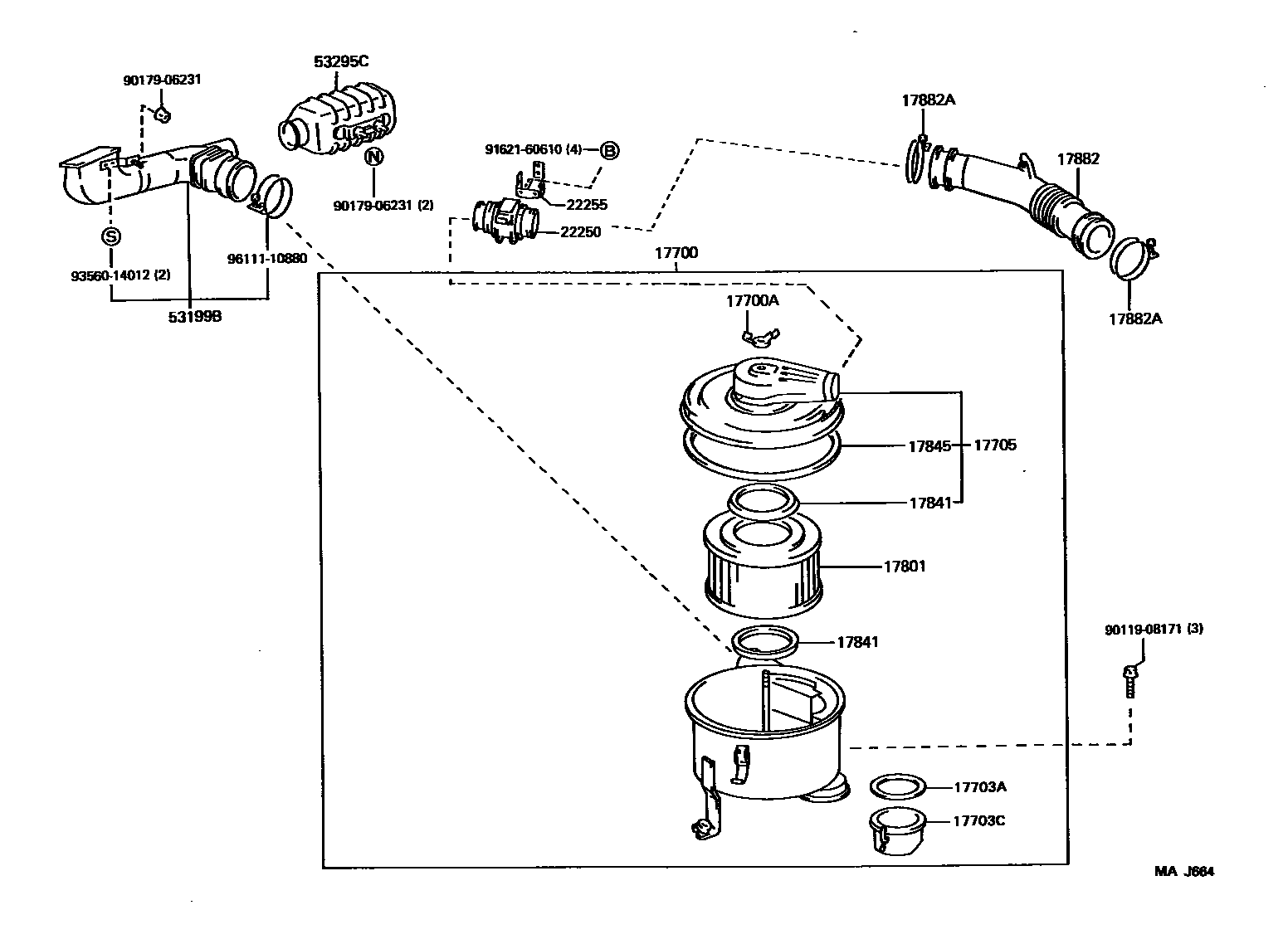

AIR CLEANER
17700CLEANER ASSY, AIR
17700ANUT, WING(FOR AIR CLEANER)
17703AGASKET(FOR BOTTOM AIR CLEANER FILTER CASE)
17703CCAP SUB-ASSY, DUST
17705CAP SUB-ASSY, AIR CLEANER
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
17841GASKET, FILTER ELEMENT
17845GASKET, AIR CLEANER CAP
17882HOSE, AIR CLEANER, NO.2
17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)
THROTTLE BODY SIDE
AIR CLEANER SIDE
22250METER ASSY, INTAKE AIR FLOW
22255BRACKET, AIR FLOW METER
53199BDUCT SUB-ASSY, COOL AIR INTAKE
53295CSILENCER, COOL AIR INTAKE
9011908171
main90119-08171
9017906231
main90179-06231
9162160610
main91621-60610
9356014012
main93560-14012
9611110880
main96111-10880
19 parts on this diagram · 1 diagram in section
