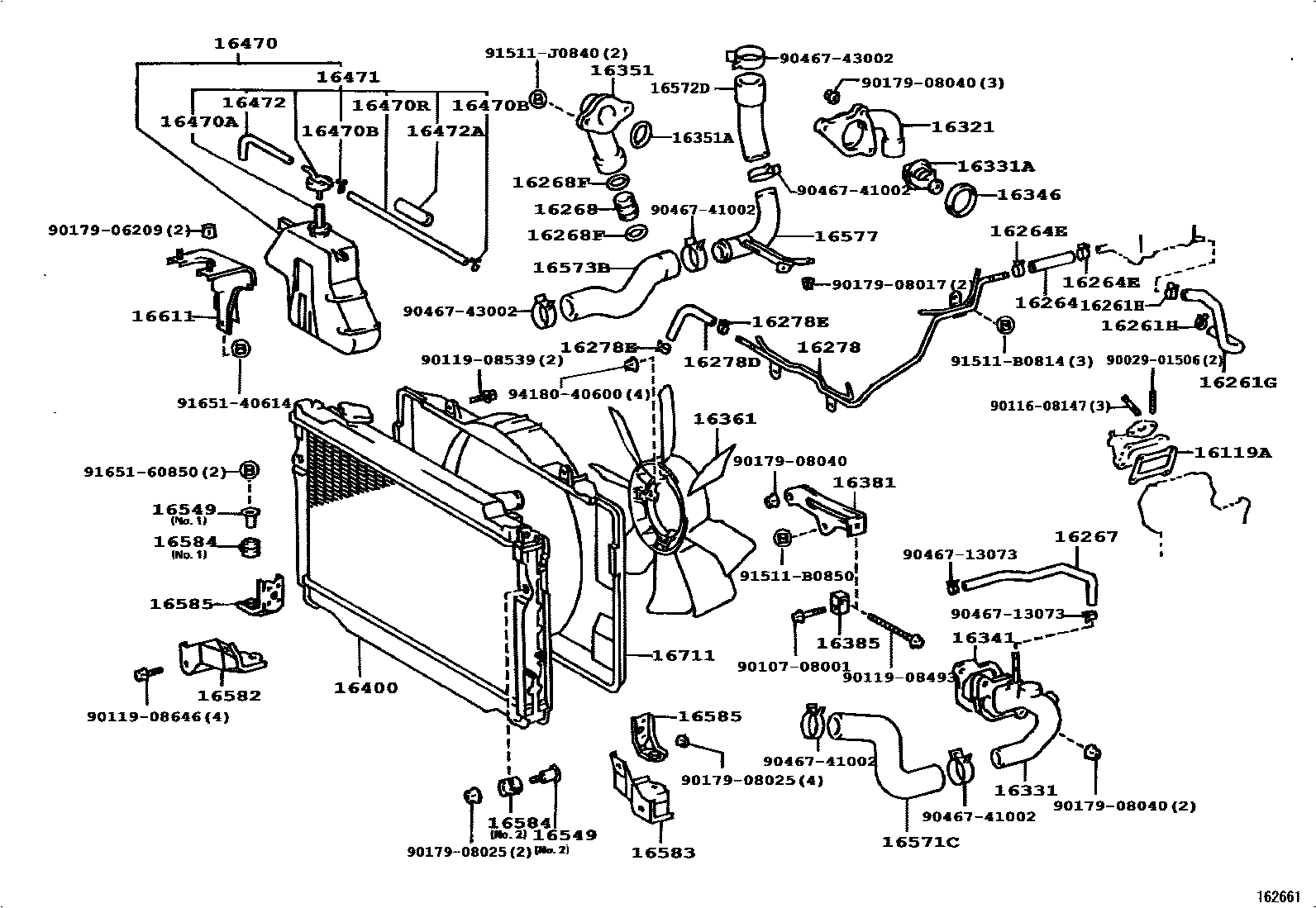

RADIATOR & WATER OUTLET
16119AGASKET, THERMOSTAT GUIDE
16261GHOSE, WATER BY-PASS, NO.1
16261HCLIP(FOR WATER BY-PASS HOSE NO.1)
sub96135-51300
16264HOSE, WATER BY-PASS, NO.2
16264ECLIP(FOR WATER BY-PASS HOSE NO.2)
sub96135-51300
16267HOSE, WATER BY-PASS, NO.3
16268PIPE, WATER BY-PASS, NO.1
16268FRING, O(FOR WATER BY-PASS PIPE)
16278PIPE, WATER BY-PASS, NO.2
16278DHOSE, WATER BY-PASS
*H,L=200
16278ECLIP(FOR WATER BY-PASS HOSE)
sub96135-51300
16321INLET, WATER
sub16321-66011
16331OUTLET, WATER
16331ATHERMOSTAT
*WAX 82-95
16341GASKET, WATER OUTLET
16346GASKET, THERMOSTAT
16351OUTLET, WATER BY-PASS
16351ARING, O(FOR WATER BY-PASS OUTLET)
16361FAN
16381BAR, FAN BELT ADJUSTING
16385SLIDER, FAN BELT ADJUSTING
16470TANK ASSY, RADIATOR RESERVE
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
L=600
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16470RHOSE, NO.2(FOR RADIATOR RESERVE TANK)
L=600
16471CAP SUB-ASSY, RESERVE TANK
16472HOSE, BREATHER
16472APROTECTOR, HOSE
16549COLLAR, RADIATOR SUPPORT, NO.2
NO.1
NO.2
16571CHOSE, RADIATOR, NO.1
16573BHOSE, RADIATOR, NO.3
16582BRACKET, RADIATOR, NO.1
16584INSULATOR, RADIATOR MOUNTING
NO.1
16585BRACKET, RADIATOR, NO.3
16611BRACKET, RADIATOR RESERVE TANK
16711SHROUD, FAN
sub16711-66031
9002901506
main90029-01506
9010708001
main90107-08001
9011608147
main90116-08147
9011908493
main90119-08493
9011908539
main90119-08539
9011908646
main90119-08646
9017906209
main90179-06209
9017908017
main90179-08017
9017908025
main90179-08025
9017908040
main90179-08040
9046713073
main90467-13073
9046741002
main90467-41002
9046743002
main90467-43002
91511B0814
main91511-B0814
91511B0850
main91511-B0850
91511J0840
main91511-J0840
9165140614
main91651-40614
9165160850
main91651-60850
9418040600
main94180-40600
58 parts on this diagram · 2 diagrams in section
