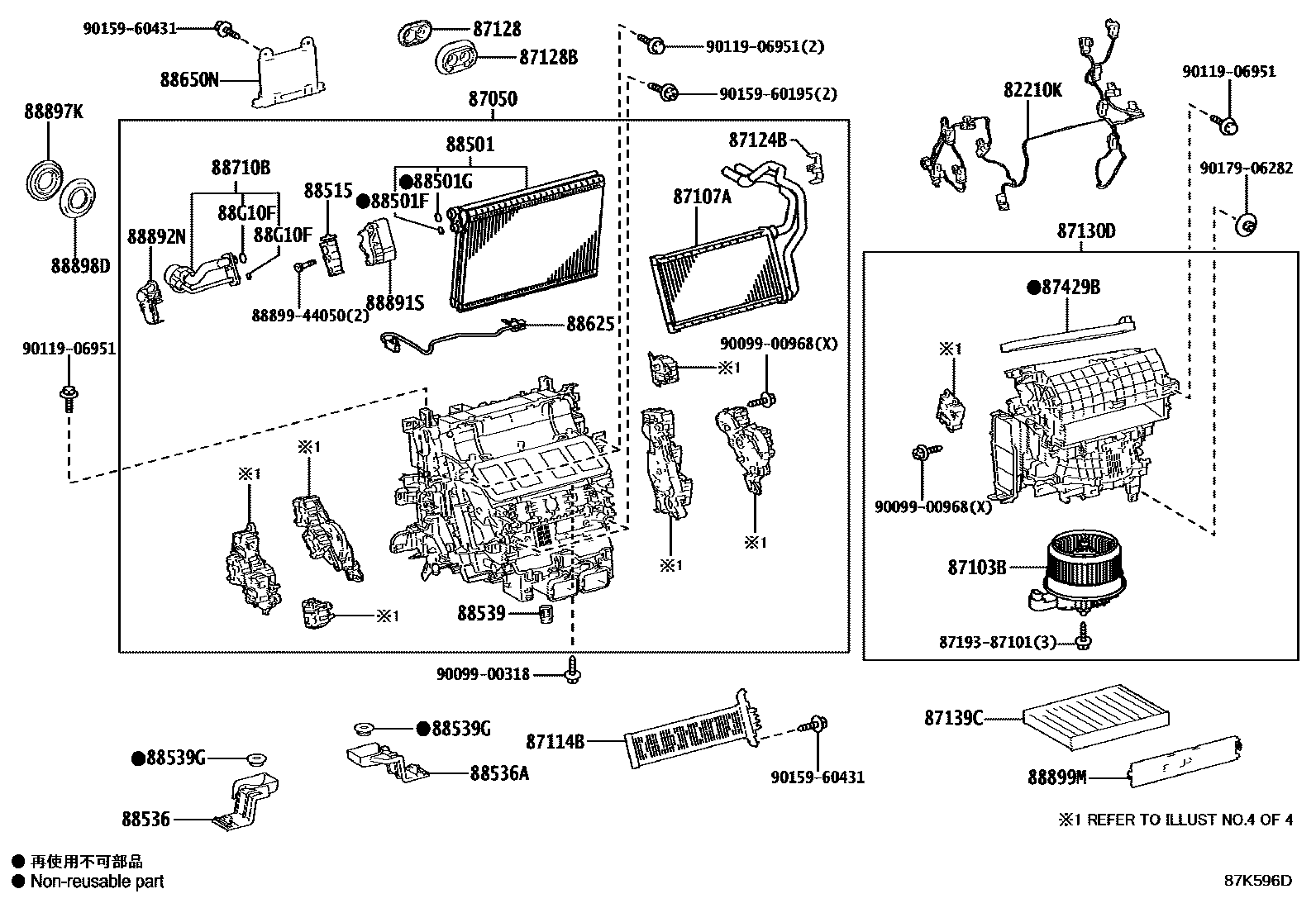

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1FRONT(1LAY),W/O(COOL BOX) 0002 1FRONT(2LAY),W/O(COOL BOX) 0003 1FRONT(1LAY),W(COOL BOX) 0004 1FRONT(2LAY),W(COOL BOX) 0005 1FRONT,W/O(COOL BOX) 0006 1FRONT,W(COOL BOX) 0007 1REAR 0008 1COOL BOX 0009 1COOL BOX 0010 1DAMPER SERVO 0011 1DAMPER SERVO

82210KHARNESS ASSY, AIR CONDITIONER

main82212-60520iFJA310,VJA310..EUR202112-202411

main82212-60530iFJA310,VJA310..GCC202112-202411

main82212-60560iFJA310,VJA310,VJH310..ARL202112-202411

87050RADIATOR ASSY, AIR CONDITIONER

main87050-60D80iFJA310,VJA310..GCC202112-202411

main87050-60D90iFJA310,VJA310..GCC202112-202310

COOL BOX-WITHOUT

main87050-60N30iFJA310,VJA310..EUR202112-202310

COOL BOX-WITH

main87050-60N30iFJA310,VJA310..EUR202310-202411

main87050-60N40iFJA310,VJA310..EUR202112-202310

main87050-60N90iFJA310,VJA310..ARL202411

main87050-60P20iFJA310..ARL202411

INDIA SPEC

main87050-60P20iFJA310..ARL202411

THAI SPEC

main87050-60P20iFJA310..ARL202411

INDONESIA SPEC

main87050-60P20iFJA310..ARL202411

BRUNEI SPEC

main87050-60P20iFJA310,VJA310..ARL202501

SOUTH AFRICA SPEC

main87050-60P20iFJA310,VJA310..ARL202112-202411

COOL BOX-WITH

main87050-60P30iFJA310,VJA310..ARL202112-202411

main87050-60S80iVJH310..GCC202411

main87050-60T10iVJH310..CHI202411

main87050-60T90iVJH310..ARL202411

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-33170iFJA310,VJA310,VJH310..GCC202112-202411

main87103-50180iFJA310,VJA310..EUR202112-202411

main87103-50190iFJA310,VJA310..ARL202112-202411

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-60450iFJA310,VJA310,VJH310..LHD202112-202411

main87107-60460iFJA310,VJA310..ARL202112-202411

87114BCOVER, HEATER

main87114-30010iFJA310..EUR202112-202411

HEATER-*673(2LAYER BLOWER)

main87114-30010iFJA310,VJA310,VJH310..ARL,GCC202310-202411

CHILE SPEC&WITHOUT(COLD AREA SPEC)

87124BCLAMP, HEATER

main87124-33070iFJA310,VJA310202112-202411

87128GROMMET, HEATER

main87128-60120iFJA310,VJA310,VJH310202112-202411

87128BGROMMET, HEATER, NO.2

main87128-28020iFJA310,VJA310,VJH310202112-202411

87130DBLOWER ASSY

main87130-60631iFJA310,VJA310..GCC202112-202411

main87130-60640iFJA310,VJA310..ARL202112-202410

main87130-60641iFJA310,VJA310,VJH310..ARL202411

main87130-60651iFJA310,VJA310,VJH310..CHI,EUR202112-202411

87139CFILTER, CLEAN AIR

main87139-30110iFJA310,VJA310202112-202411

DEODORANT FILTER

main87139-60030iFJA310,VJA310,VJH310202112-202411

POLLEN FILTER

main87139-60040iFJA310,VJA310,VJH310202411

MICRO DUST FILTER

87429BPACKING, COOLER UNIT, NO.1

main87429-60020iFJA310,VJA310202112-202411

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-60620iVJH310202411

main88501-60670iFJA310..ARL202411

THAI SPEC

main88501-60670iFJA310,VJA310..LHD202411

INDONESIA SPEC

main88501-60670iFJA310,VJA310..LHD202411

BRUNEI SPEC

main88501-60670iFJA310,VJA310..LHD202411

INDIA SPEC

main88501-60670iFJA310,VJA310..ARL202501

SOUTH AFRICA SPEC

main88501-60670iFJA310,VJA310202112-202411

main88501-60680iFJA310,VJA310..ARL202411

88501FO-RING, COOLER EVAPORATOR NO.1(DISCHARGE)

main90099-14120iFJA310,VJA310202112-202411

ID=10.8,OD=15.6

88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)

main90099-14121iFJA310,VJA310,VJH310202112-202411

ID=13.4,OD=18.2

88515VALVE, COOLER EXPANSION

main88515-60350iFJA310,VJA310..ARL202112-202411

main88515-60350iFJA310,VJA310..EUR202112-202310

COOL BOX-WITHOUT

88536BRACKET, COOLING UNIT, NO.1

main88688-60B80iFJA310,VJA310,VJH310202112-202411

88536ABRACKET, COOLING UNIT, NO.2

main88688-60B90iFJA310,VJA310202112-202411

88539HOSE, COOLER UNIT DRAIN, NO.1

main88899-10110iFJA310,VJA310202112-202411

88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)

main90480-26029iFJA310,VJA310202112-202411

88625THERMISTOR, COOLER, NO.1

main88620-30290iFJA310,VJA310..LHD202112-202411

main88620-50020iFJA310,VJA310,VJH310..ARL202112-202411

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-60X90iFJA310,VJA310202112-202310

main886H0-60010iFJA310,VJA310202310-202411

main886H0-60140iVJH310..CHI202411

main886H0-60150iFJA310,VJA310202411

main886H0-60160iVJH310..ARL,GCC202411

88710BTUBE ASSY, AIR CONDITIONER

main88710-60N50iFJA310,VJA310,VJH310..LHD202112-202411

main88710-60N50iFJA310,VJA310..EUR202112-202310

COOL BOX-WITH

main88710-60N60iVJA310..ARL202411

BRUNEI SPEC

main88710-60N60iVJH310..ARL202411

INDONESIA SPEC

main88710-60N60iVJH310..ARL202411

INDIA SPEC

main88710-60N60iVJH310..ARL202411

THAI SPEC

main88710-60N60iFJA310,VJA310..ARL202501

SOUTH AFRICA SPEC

main88710-60N60iFJA310,VJA310..ARL202112-202411

COOL BOX-WITH

main88710-60N80iFJA310,VJA310..ARL202411

main88710-60N90iFJA310,VJA310..EUR202112-202310

COOL BOX-WITHOUT

main88710-60N90iFJA310,VJA310..ARL202112-202411

88891SCOVER, COOLER, NO.1

main88891-11010iFJA310,VJA310..EUR202112-202310

COOL BOX-WITHOUT

main88891-11010iFJA310,VJA310..ARL202112-202411

88892NCOVER, COOLER, NO.2

main88892-11010iFJA310,VJA310..EUR202112-202310

COOL BOX-WITHOUT

main88892-11010iFJA310,VJA310..ARL202112-202411

88897KGROMMET, (FOR COOLER PIPE)

main88897-11020iFJA310,VJA310,VJH310202112-202411

88898DGROMMET

main88899-11020iFJA310,VJA310,VJH310202112-202411

88899MPLATE, COVER(FOR AIR FILTER)

main88899-50150iFJA310,VJA310,VJH310202112-202411

88G10FRING, O, NO.3 (FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)

main90099-14119iFJA310,VJA310..ARL202308-202411

ID=6.7,OD=10.3

main90099-14121iFJA310,VJA310..ARL202308-202411

ID=13.4,OD=18.2

8719387101

main87193-87101

8889944050COVER, EVAPORATOR

main88899-44050

9009900318

main90099-00318

9009900968

main90099-00968

9011906951

main90119-06951

9015960195

main90159-60195

9015960431

main90159-60431

9017906282

main90179-06282

36 parts on this diagram · 11 diagrams in section
