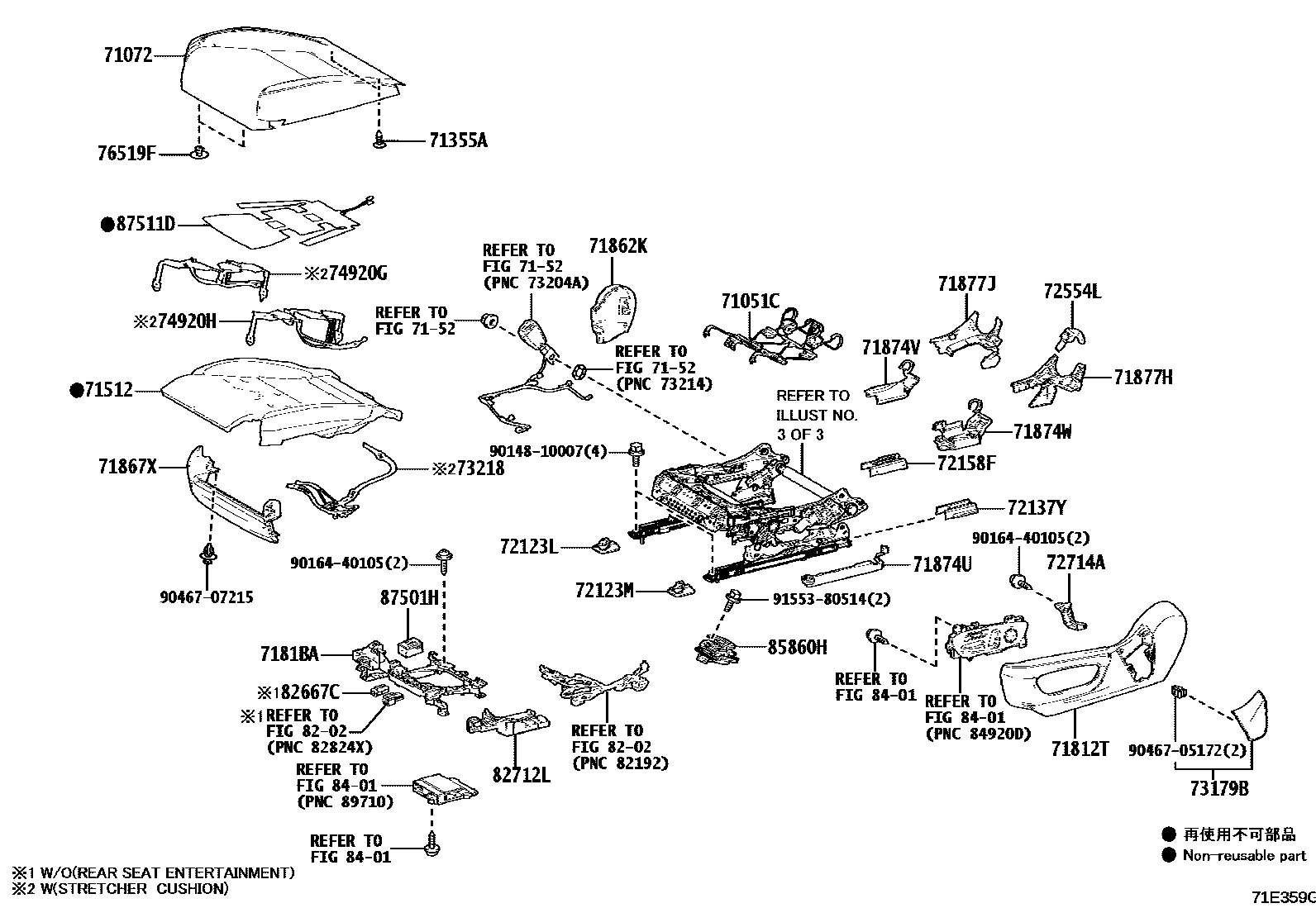

FRONT SEAT & SEAT TRACK
71051CSPRING SUB-ASSY, FRONT SEAT CUSHION, LH
71072COVER SUB-ASSY, FRONT SEAT CUSHION, LH
WHITE,TRIM0#
BLACK,TRIM2#
CRIMSON,TRIM3#
HAZEL,TRIM4#
WHITE,TRIM0#
BLACK,TRIM2#
CRIMSON,TRIM3#
HAZEL,TRIM4#
71355ACLIP
71512PAD, FRONT SEAT CUSHION, LH
SEAT VENTILATION-WITHOUT
SEAT VENTILATION-WITH(DRIVER & PASSENGER)
7152
71812TSHIELD, FRONT SEAT CUSHION, LH
BLACK,TRIM0#,2#,3#,4#
7181BAHOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH
71862KSHIELD, FRONT SEAT CUSHION, INNER LH
71867XSHIELD, FRONT SEAT CUSHION, FRONT LH
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#,4#
71874USHIELD, FRONT SEAT CUSHION, LOWER LH
71874VSHIELD, FRONT SEAT CUSHION, LOWER LH, OUTER
71874WSHIELD, FRONT SEAT CUSHION, LOWER LH, INNER
71877HCOVER, RECLINING ADJUSTER INSIDE, RH(FOR LH SEAT)
BLACK,TRIM0#,2#,3#,4#
71877JCOVER, RECLINING ADJUSTER INSIDE, LH(FOR LH SEAT)
BLACK,TRIM0#,2#,3#,4#
72123LCOVER, SEAT TRACK BRACKET, INNER FRONT LH
72123MCOVER, SEAT TRACK BRACKET, OUTER FRONT LH
72137YCOVER, SEAT TRACK BRACKET, OUTER REAR LH
BLACK,TRIM0#,2#,3#,4#
72158FCOVER, SEAT TRACK BRACKET, INNER REAR LH
BLACK,TRIM0#,2#,3#,4#
72554LPROTECTOR, RECLINING COVER, LH
72714ABRACKET, SEAT ADJUSTER SHIELD CLAMP, LH
73179BCAP, SEAT BELT ANCHOR COVER, LH
BLACK,TRIM0#,2#,3#,4#
73218TUBE, ADJUSTER, LH
main73218-60020
74920GCUSHION ASSY, MAIN STRETCHER, LH NO.1(FOR SEAT CUSHION)
74920HCUSHION ASSY, MAIN STRETCHER, LH NO.2(FOR SEAT CUSHION)
76519FCLIP, FRONT SEAT CUSHION COVER
8202
82667CHOLDER, CONNECTOR
82712LSUPPORT, WIRING HARNESS
RH SEAT
LH SEAT
8401
85860HBLOWER ASSY, SEAT CUSHION CLIMATE CONTROL, LH
"EXECUTIVE"&ILLUMINATED ENTRY SYSTEM-WITH(SCUFF PLATE & REAR CONSOLE BOX)&REAR NO.1 SEAT-POWER SEAT(WITH(LIFTER))&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER
"EXECUTIVE"&REAR NO.1 SEAT-POWER SEAT(WITH(LIFTER))&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR)&SEAT VENTILATION-WITH(DRIVER & PASSENGER
F-SPORT&ILLUMINATED ENTRY SYSTEM-WITH(SCUFF PLATE)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&SEAT VENTILAT
LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT)&REAR AUDIO-WITH(DU
OVER TRAIL PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER& REAR NO.1)&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT)&REAR AUDIO-WIT
SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&SEATVENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT)
SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&SEATVENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT)&REAR AUDIO-WITH(DUAL *RSE)
SEAT VENTILATION-WITH(DRIVER & PASSENGER)
87501HCONTROL SUB-ASSY, SEAT HEATER, LH
87511DHEATER ASSY, FRONT SEAT CUSHION, LH
9014810007
main90148-10007
9016440105
main90164-40105
9046705172
main90467-05172
9046707215
main90467-07215
9155380514
main91553-80514
37 parts on this diagram · 14 diagrams in section
