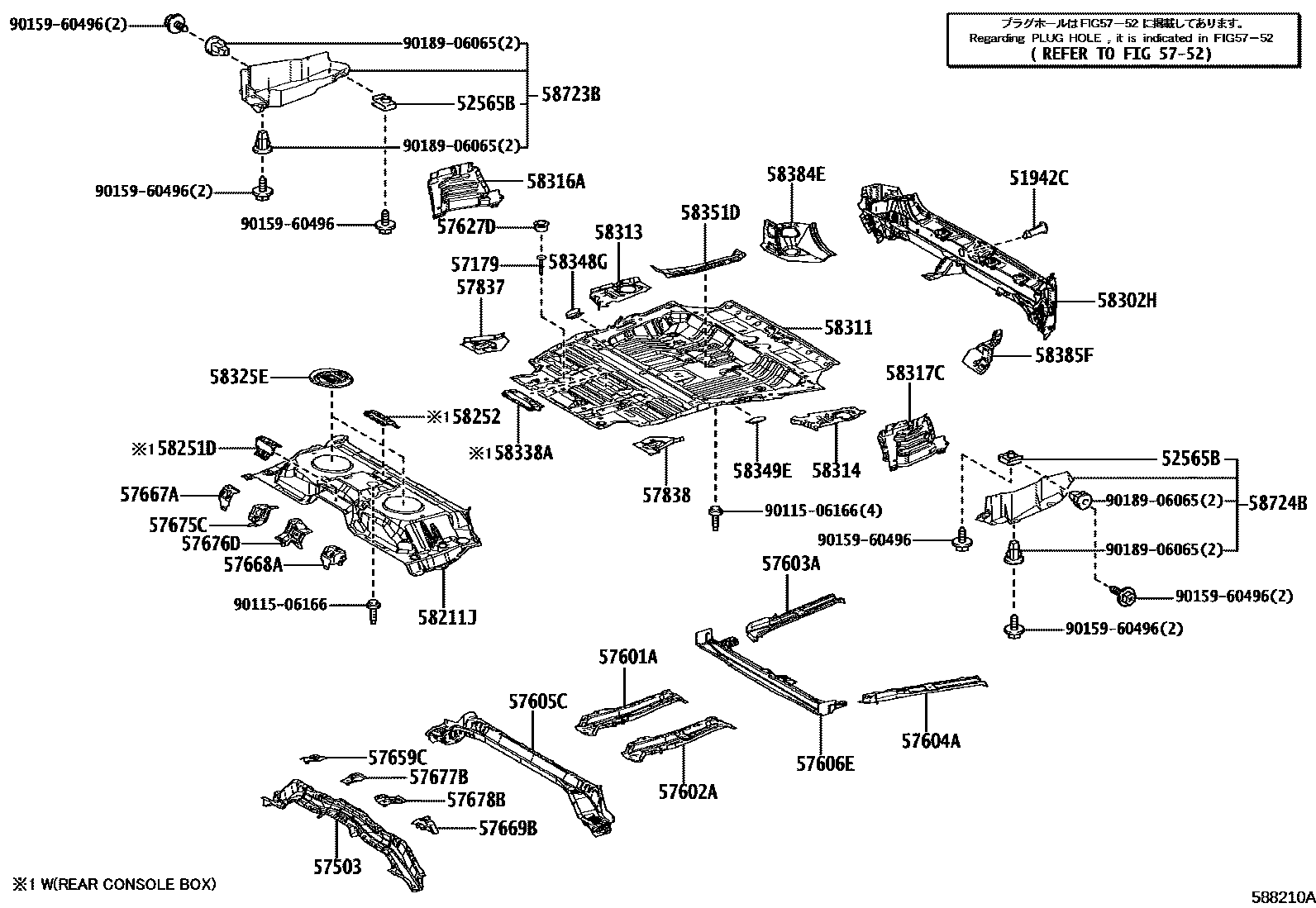

REAR FLOOR PANEL & REAR FLOOR MEMBER
51942CGUIDE, SPARE WHEEL CRANK HANDLE
52565BRETAINER, REAR BUMPER, LOWER
57179BOLT, FLOOR CROSSMEMBER
57503BRACE SUB-ASSY, CENTER FLOOR CROSSMEMBER
5752
57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH
57605CMEMBER SUB-ASSY, REAR FLOOR CROSS
57606EMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57627DCOVER, REAR FLOOR SIDE MEMBER
57659CMEMBER, REAR FLOOR CROSS, NO.8
57667AREINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.4
57668AREINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.5
57669BMEMBER, REAR FLOOR CROSS, NO.9
57675CREINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.1 RH
57676DREINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.1 LH
57677BREINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.6 RH
57678BREINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.6 LH
57837REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.3
57838REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.4
58211JPAN, CENTER FLOOR
58251DBRACE, FLOOR PANEL, FRONT
58252BRACE, FLOOR PANEL, REAR
main58252-60010
58311PAN, REAR FLOOR
REAR NO.2 SEAT- W(POWER FOLD) & AUTO ARRANGE
REAR NO.2 SEAT-W(POWER FOLD)
REAR NO.2 SEAT-WITHOUT
F-SPORT
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
58316AEXTENSION, REAR FLOOR SIDE PANEL, REAR RH
58317CEXTENSION, REAR FLOOR SIDE PANEL, REAR LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58338AREINFORCEMENT, REAR FLOOR PAN, NO.2
58348GPLATE, REAR FLOOR SIDE, RH
58349EPLATE, REAR FLOOR SIDE, LH
58351DREINFORCEMENT, REAR FLOOR PANEL
58384EGUSSET, LOWER BACK PANEL, NO.1 RH
58385FGUSSET, LOWER BACK PANEL, NO.1 LH
58723BPROTECTOR, LUGGAGE COMPARTMENT SIDE COVER, NO.1
58724BPROTECTOR, LUGGAGE COMPARTMENT SIDE COVER, NO.2
9011506166
main90115-06166
9015960496
main90159-60496
9018906065
main90189-06065
43 parts on this diagram · 2 diagrams in section
