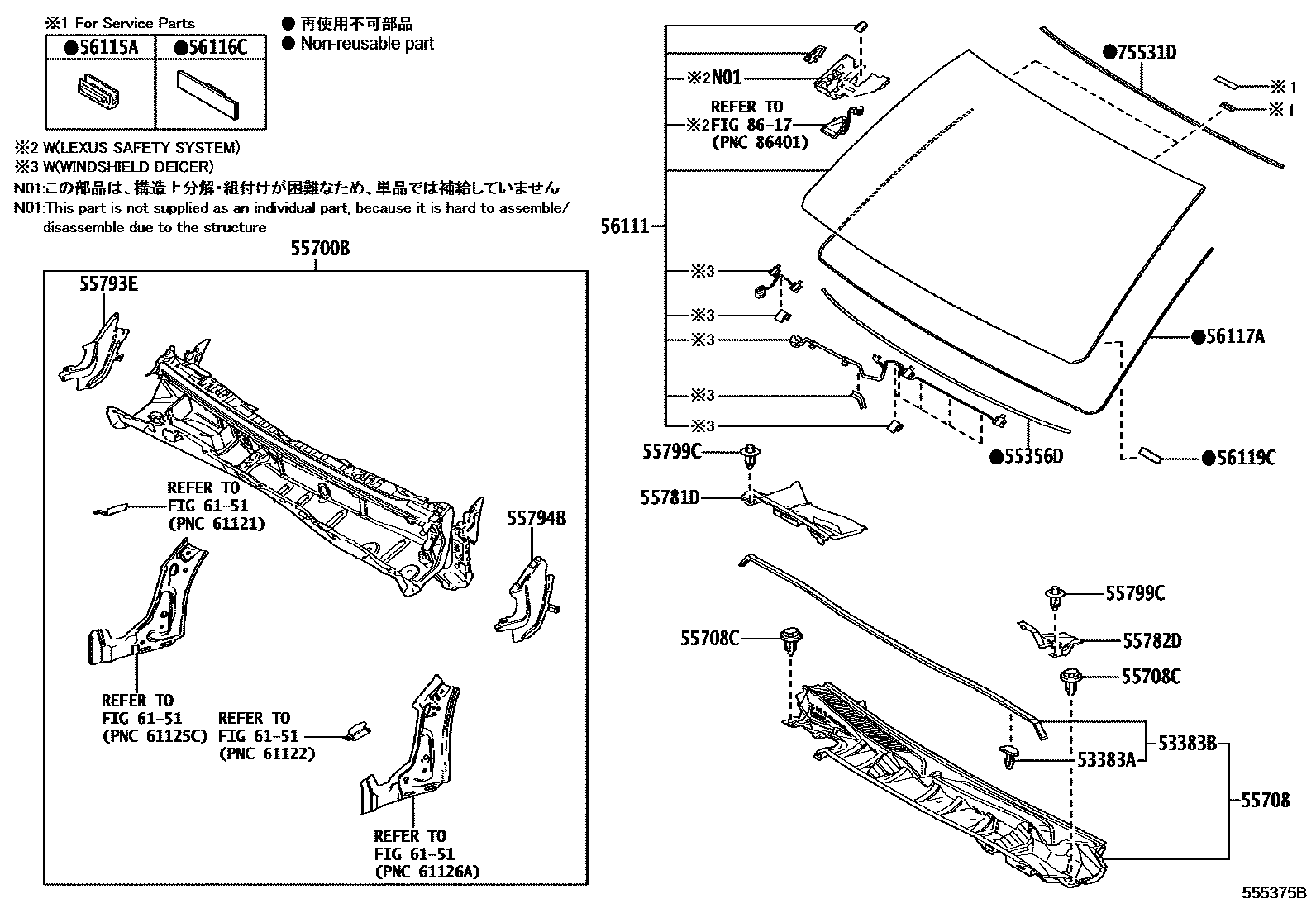

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

53383ACLIP(FOR HOOD TO COWL TOP SEAL)

main67867-48030iFJA310,VJA310202112-202411

53383BSEAL, HOOD TO COWL TOP

main53383-60130iFJA310,VJA310,VJH310202112-202411

55356DCUSHION, INSTRUMENT PANEL, NO.2

main55355-60240iFJA310,VJA310202112-202411

55700BCOWL ASSY

main55700-60F90iFJA310,VJA310..ARL202112-202302

sub55700-60F91

main55700-60F91iFJA310,VJA310,VJH310..ARL202303-202411

main55700-60G00iFJA310,VJA310..LHD202112-202302

sub55700-60G01

main55700-60G01iFJA310,VJA310..LHD202303-202411

55708LOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-60280iFJA310,VJA310..ARL202112-202212

main55708-60380iVJA310..EUR202112-202411

CHILE SPEC

main55708-60380iVJA310..EUR202112-202411

MEXICO SPEC

main55708-60380iVJA310..EUR202112-202411

VIETNAM SPEC

main55708-60380iVJA310..EUR202112-202411

MONGOLIA SPEC

main55708-60400iFJA310,VJA310..EUR202112-202411

main55708-60430iFJA310,VJA310..ARL202301-202411

main55708-60510iFJA310,VJA310,VJH310..CHI,GCC202411

CHILE SPEC

main55708-60510iFJA310,VJA310,VJH310..CHI,GCC202411

VIETNAM SPEC

main55708-60510iFJA310,VJA310,VJH310..CHI,GCC202411

MONGOLIA SPEC

main55708-60530iFJA310,VJA310..EUR202411

55708CCLIP, COWL TOP VENTILATOR LOUVER

main90467-09242iFJA310,VJA310,VJH310202112-202411

55781DLOUVER, COWL TOP VENTILATOR, RH

main55783-60081iFJA310,VJA310..LHD202112-202411

main55784-60141iFJA310,VJA310,VJH310..ARL202112-202411

55782DLOUVER, COWL TOP VENTILATOR, LH

main55783-60071iFJA310,VJA310,VJH310..ARL202112-202411

main55784-60151iFJA310,VJA310,VJH310..LHD202112-202411

55793ECOVER, COWL REINFORCEMENT, UPPER NO.2 RH

main55793-60040iFJA310,VJA310,VJH310202112-202411

55794BCOVER, COWL REINFORCEMENT, UPPER NO.2 LH

main55794-60040iFJA310,VJA310,VJH310202112-202411

55799CCLIP, COWL TOP VENTILATOR LOUVER

main90467-07217iFJA310,VJA310202112-202411

56111GLASS, WINDSHIELD

main56101-6B914iFJA310,VJA310..EUR202112-202411

main56101-6B915iFJA310,VJA310..GCC202112-202411

MEXICO SPEC&WINDSHIELD DEICER-WITHOUT

main56101-6B915iFJA310,VJA310..GCC202112-202411

MEXICO SPEC&WINDSHIELD DEICER-WITHOUT&HEAD-UP DISPLAY-WITH

main56101-6B915iFJA310,VJA310..GCC202112-202411

VIETNAM SPEC&WINDSHIELD DEICER-WITHOUT

main56101-6B915iFJA310,VJA310..GCC202112-202411

VIETNAM SPEC&WINDSHIELD DEICER-WITHOUT&HEAD-UP DISPLAY-WITH

main56101-6B915iFJA310,VJA310..GCC202112-202411

CHILE SPEC&WINDSHIELD DEICER-WITHOUT

main56101-6B915iFJA310,VJA310..GCC202112-202411

CHILE SPEC&WINDSHIELD DEICER-WITHOUT&HEAD-UP DISPLAY-WITH

main56101-6B919iFJA310,VJA310..ARL202112-202411

main56101-6B976iFJA310..ARL202411

INDIA SPEC

main56101-6B976iFJA310..ARL202411

THAI SPEC

main56101-6B976iFJA310..ARL202411

INDONESIA SPEC

main56101-6B976iFJA310..ARL202411

BRUNEI SPEC

main56101-6B977iFJA310,VJA310..ARL202411

main56101-6B980iVJH310..CHI202411

main56101-6B982iFJA310,VJA310..EUR202411

main56101-6B984iVJA310..EUR202411

MONGOLIA SPEC&WINDSHIELD DEICER-WITHOUT&HEAD-UP DISPLAY-WITH

main56101-6B984iFJA310..EUR202411

VIETNAM SPEC&WINDSHIELD DEICER-WITHOUT&HEAD-UP DISPLAY-WITH

main56101-6B984iFJA310..EUR202411

CHILE SPEC&WINDSHIELD DEICER-WITHOUT

main56101-6B984iFJA310..EUR202411

CHILE SPEC&WINDSHIELD DEICER-WITHOUT&HEAD-UP DISPLAY-WITH

main56101-6B984iFJA310..EUR202411

MONGOLIA SPEC&WINDSHIELD DEICER-WITHOUT

main56101-6B984iFJA310..EUR202411

VIETNAM SPEC&WINDSHIELD DEICER-WITHOUT

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-60040iFJA310,VJA310202112-202411

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iFJA310,VJA310,VJH310202112-202411

56117ADAM, WINDOW GLASS ADHESIVE

main56117-64010iFJA310,VJA310202112-202411

L=2840,IRAQ SPEC

main56117-64010iFJA310,VJA310202112-202411

L=2840,MONGOLIA SPEC&WINDSHIELD DEICER-WITHOUT

main56117-64010iFJA310,VJA310202112-202411

L=2840,MONGOLIA SPEC&WINDSHIELD DEICER-WITHOUT&HEAD-UP DISPLAY-WITH

main56117-64010iFJA310,VJA310202112-202411

L=2840,EGYPT SPEC

main56117-64010iFJA310,VJA310202112-202411

L=2840,INDIA SPEC

main56117-64010iFJA310,VJA310202112-202411

L=2840,YEMEN SPEC

main56117-64010iFJA310,VJA310202112-202411

L=2840,BELARUS SPEC

main56117-64010iFJA310,VJA310202112-202411

L=2840,BELARUS SPEC&HEAD-UP DISPLAY-WITH

main56117-64010iFJA310,VJA310202112-202411

L=2840,KYRGYZ SPEC

main56117-64010iFJA310,VJA310202112-202411

L=2840,KYRGYZ SPEC&HEAD-UP DISPLAY-WITH

main56117-64010iFJA310,VJA310202112-202411

L=2840,HEAD-UP DISPLAY-WITH

main56117-64010iVJA310..EUR202112-202411

L=2840

main56117-64010iVJA310..EUR202112-202411

L=2840,MEXICO SPEC&WINDSHIELD DEICER-WITHOUT

main56117-64010iVJA310..EUR202112-202411

L=2840,MEXICO SPEC&WINDSHIELD DEICER-WITHOUT&HEAD-UP DISPLAY-WITH

main56117-64010iVJA310..EUR202112-202411

L=2840,VIETNAM SPEC&WINDSHIELD DEICER-WITHOUT

main56117-64010iVJA310..EUR202112-202411

L=2840,VIETNAM SPEC&WINDSHIELD DEICER-WITHOUT&HEAD-UP DISPLAY-WITH

main56117-64010iVJA310..EUR202112-202411

L=2840,CHILE SPEC&WINDSHIELD DEICER-WITHOUT

main56117-64010iVJA310..EUR202112-202411

L=2840,CHILE SPEC&WINDSHIELD DEICER-WITHOUT&HEAD-UP DISPLAY-WITH

main56117-64010iVJA310..EUR202112-202411

L=2840,EL SALVADOR SPEC

main56117-64010iFJA310,VJA310,VJH310202411

L=2840,INDONESIA SPEC

main56117-64010iFJA310,VJA310,VJH310202411

L=2840,BRUNEI SPEC

main56117-64010iFJA310,VJA310,VJH310202411

L=2840,THAI SPEC

main56117-64010iFJA310,VJA310,VJH310202411

L=2840,ETC-WITH

56119CSEAL, WINDSHIELD GLASS

main56119-60090iVJH310..ARL,GCC;FJA310,VJA310..GCC202112-202411

INDONESIA SPEC

main56119-60090iVJH310..ARL,GCC;FJA310,VJA310..GCC202112-202411

VIETNAM SPEC

main56119-60090iVJH310..ARL,GCC;FJA310,VJA310..GCC202112-202411

BRUNEI SPEC

main56119-60090iVJH310..ARL,GCC;FJA310,VJA310..GCC202112-202411

CHILE SPEC

main56119-60090iVJH310..ARL,GCC;FJA310,VJA310..GCC202112-202411

MONGOLIA SPEC

main56119-60090iVJH310..ARL,GCC;FJA310,VJA310..GCC202112-202411

INDIA SPEC

main56119-60090iVJH310..ARL,GCC;FJA310,VJA310..GCC202411

AZERBAIJAN, GEORGEA SPEC

main56119-60090iVJH310..ARL,GCC;FJA310,VJA310..GCC202112-202411

MOLDOVA SPEC

main56119-60090iFJA310,VJA310..GCC202112-202411

AZER, GEORGIA SPEC

main56119-60090iFJA310,VJA310..GCC202112-202411

MALAYSIA SPEC

6151

75531DMOULDING, WINDSHIELD, OUTSIDE UPPER

main75531-60090iFJA310,VJA310,VJH310202112-202411

8617

19 parts on this diagram · 2 diagrams in section
