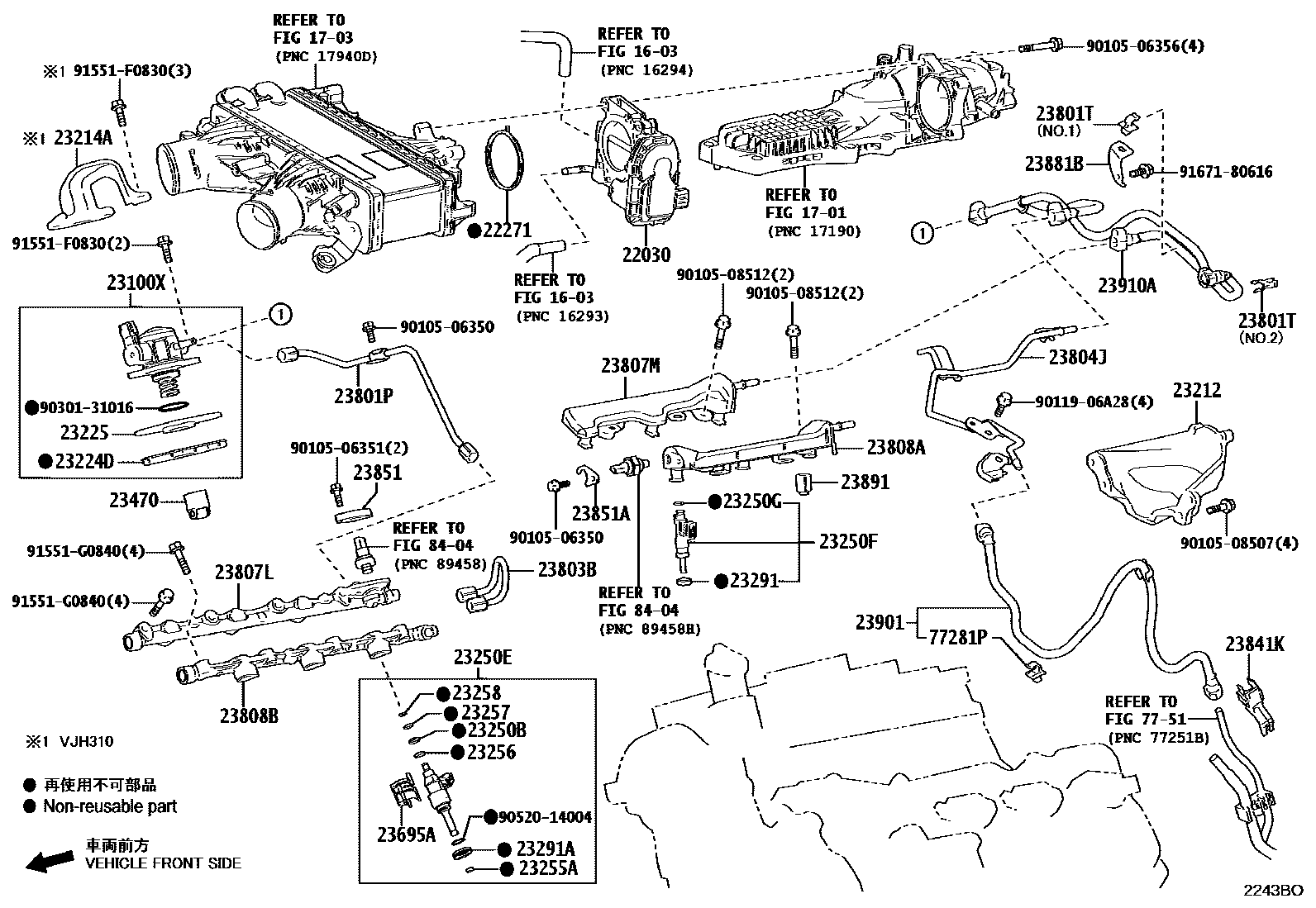

FUEL INJECTION SYSTEM
1603
1701
1703
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22271GASKET, THROTTLE BODY
23100XPUMP ASSY, FUEL (ENGINE ROOM SIDE)
23212BRACKET, FUEL PIPE PROTECTOR
23214APROTECTOR, FUEL PUMP
23224DGASKET, FUEL PUMP SPACER
23225SPACER, FUEL PUMP
23250BRING, O(FOR FUEL INJECTOR)
23250EINJECTOR ASSY, FUEL(FOR DIRECT)
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
MARK 4,REFER REPAIR MANUAL
MARK 5,REFER REPAIR MANUAL
MARK 6,REFER REPAIR MANUAL
MARK 7,REFER REPAIR MANUAL
MARK 8,REFER REPAIR MANUAL
MARK 9,REFER REPAIR MANUAL
23250FINJECTOR ASSY, FUEL(FOR PORT)
23250GRING, O, NO.2(FOR FUEL INJECTOR)
23255ASEAL, FUEL INJECTOR
23256RING, FUEL INJECTOR BACK-UP, NO.1
23257RING, FUEL INJECTOR BACK-UP, NO.2
23258RING, FUEL INJECTOR BACK-UP, NO.3
23291INSULATOR, INJECTOR VIBRATION
23291AINSULATOR, INJECTOR VIBRATION
23470LIFTER ASSY, FUEL PUMP
23695ACLAMP, NOZZLE HOLDER
23801PPIPE SUB-ASSY, FUEL, NO.1
23801TCLAMP OR CLIP, FUEL HOSE(FOR EFI)
NO.1
NO.2
23803BPIPE SUB-ASSY, FUEL, NO.3
23804JPIPE SUB-ASSY, FUEL INLET
23807LPIPE SUB-ASSY, FUEL DELIVERY, RH NO.1
23807MPIPE SUB-ASSY, FUEL DELIVERY, RH NO.2
23808APIPE SUB-ASSY, FUEL DELIVERY, LH NO.1
23808BPIPE SUB-ASSY, FUEL DELIVERY, LH NO.2
23841KCLAMP, FUEL PIPE
23851HOLDER, FUEL PRESSURE SENSOR, NO.1
23851AHOLDER, FUEL PRESSURE SENSOR, NO.2
23881BBRACKET, FUEL HOSE
23891SPACER, FUEL DELIVERY
23901TUBE SUB-ASSY, FUEL
23910ATUBE SUB-ASSY, FUEL
77281PCLAMP, FUEL HOSE
7751
8404
9010506350
main90105-06350
9010506351
main90105-06351
9010506356
main90105-06356
9010508507
main90105-08507
9010508512
main90105-08512
9011906A28
main90119-06A28
9030131016
main90301-31016
9052014004
main90520-14004
91551F0830
main91551-F0830
91551G0840
main91551-G0840
9167180616
main91671-80616
51 parts on this diagram · 1 diagram in section
